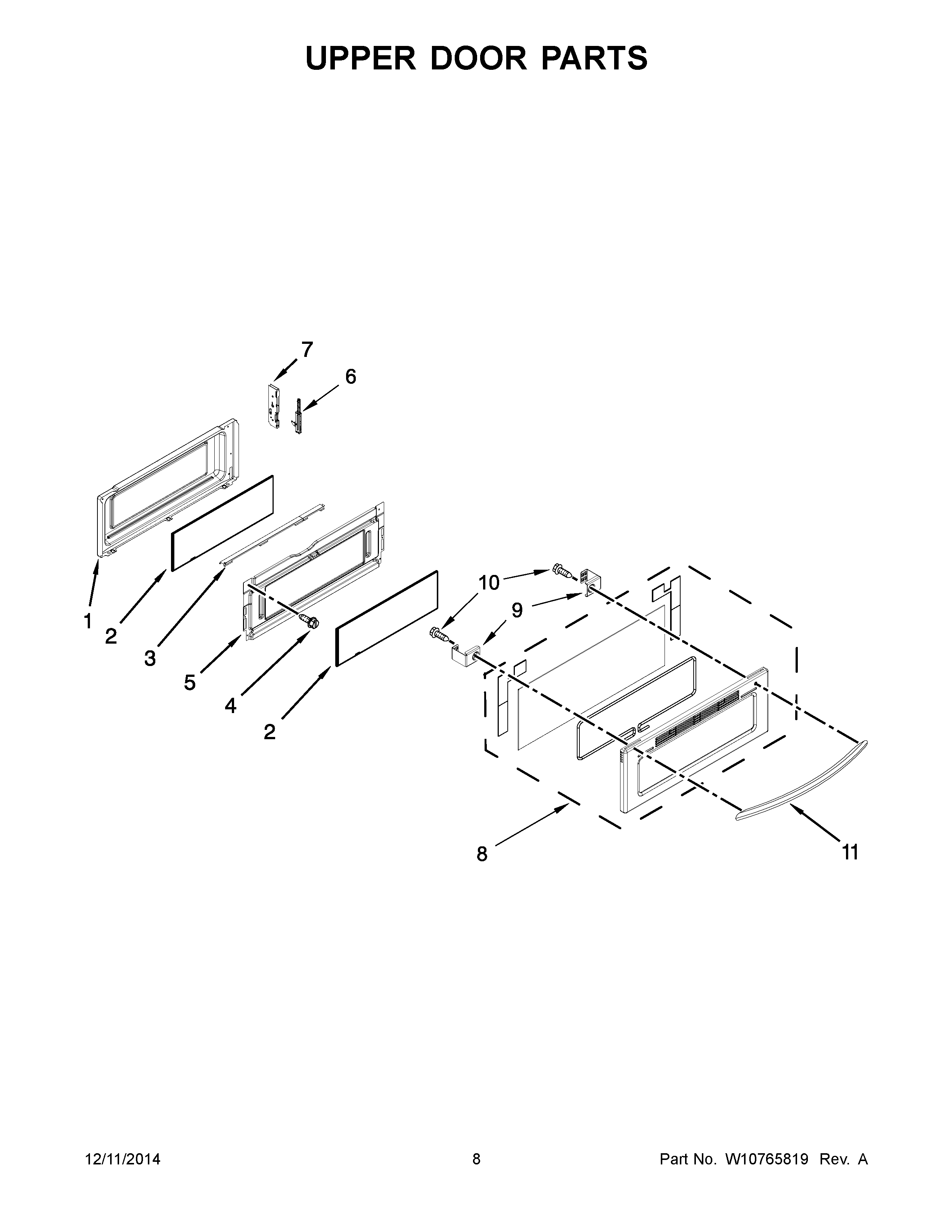

YKER507XSS04 05 – UPPER DOOR PARTS

YKER507XSS04 05 – UPPER DOOR PARTS

Written by

in

YKER507XSS04 05 – UPPER DOOR PARTS

Products

PositionProduct
1W11103615 Whirlpool Door Liner
2W11132120 Whirlpool Glass Door
3WPW10272708 Whirlpool Window Frame
4WPW10292297 Whirlpool Screw
5W10485723 Whirlpool Retainer
6WPW10485733 Whirlpool Door Hinge
6AWPW10485732 Whirlpool Door Hinge
7W10647259 Whirlpool Hinge Receiver
8ASSEMBLY, GLASS DOOR (INCLUDES DOOR PANEL)
9W10645182 Whirlpool Mounting Bracket
10WPW10132940 Whirlpool Dishwasher Screw
11WPW10289076 Whirlpool Door Handle
