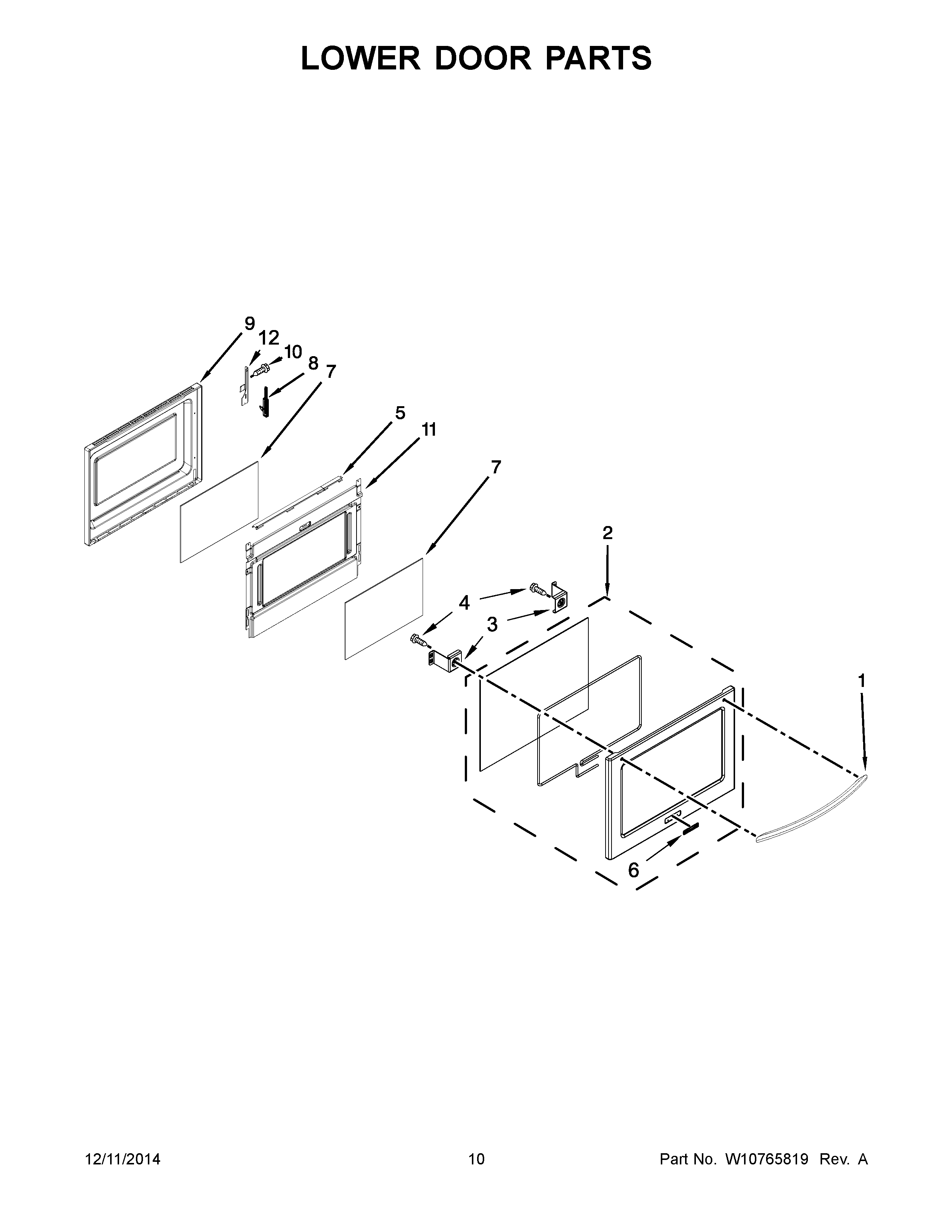

YKER507XSS04 06 – LOWER DOOR PARTS

YKER507XSS04 06 – LOWER DOOR PARTS

Written by

in

YKER507XSS04 06 – LOWER DOOR PARTS

Products

PositionProduct
1WPW10289076 Whirlpool Door Handle
2ASSEMBLY, GLASS DOOR (INCLUDES DOOR PNL & BADGE)
3W10645182 Whirlpool Mounting Bracket
4WPW10132940 Whirlpool Dishwasher Screw
5WPW10272594 Whirlpool Window Frame
6WPW10243391 Whirlpool Refrigerator Nameplate
7WP9757706 Whirlpool Door Inner Glass
8WPW10335434 Whirlpool Door Hinge
8AWPW10335433 Whirlpool Door Hinge
9WPW10292008 Whirlpool Door Liner
10WP4449743 Whirlpool Screw
11W10340464 Whirlpool Retainer
12AWPW10272328 Whirlpool Hinge Receptacle
12WPW10272329 Whirlpool Hinge Receptacle
