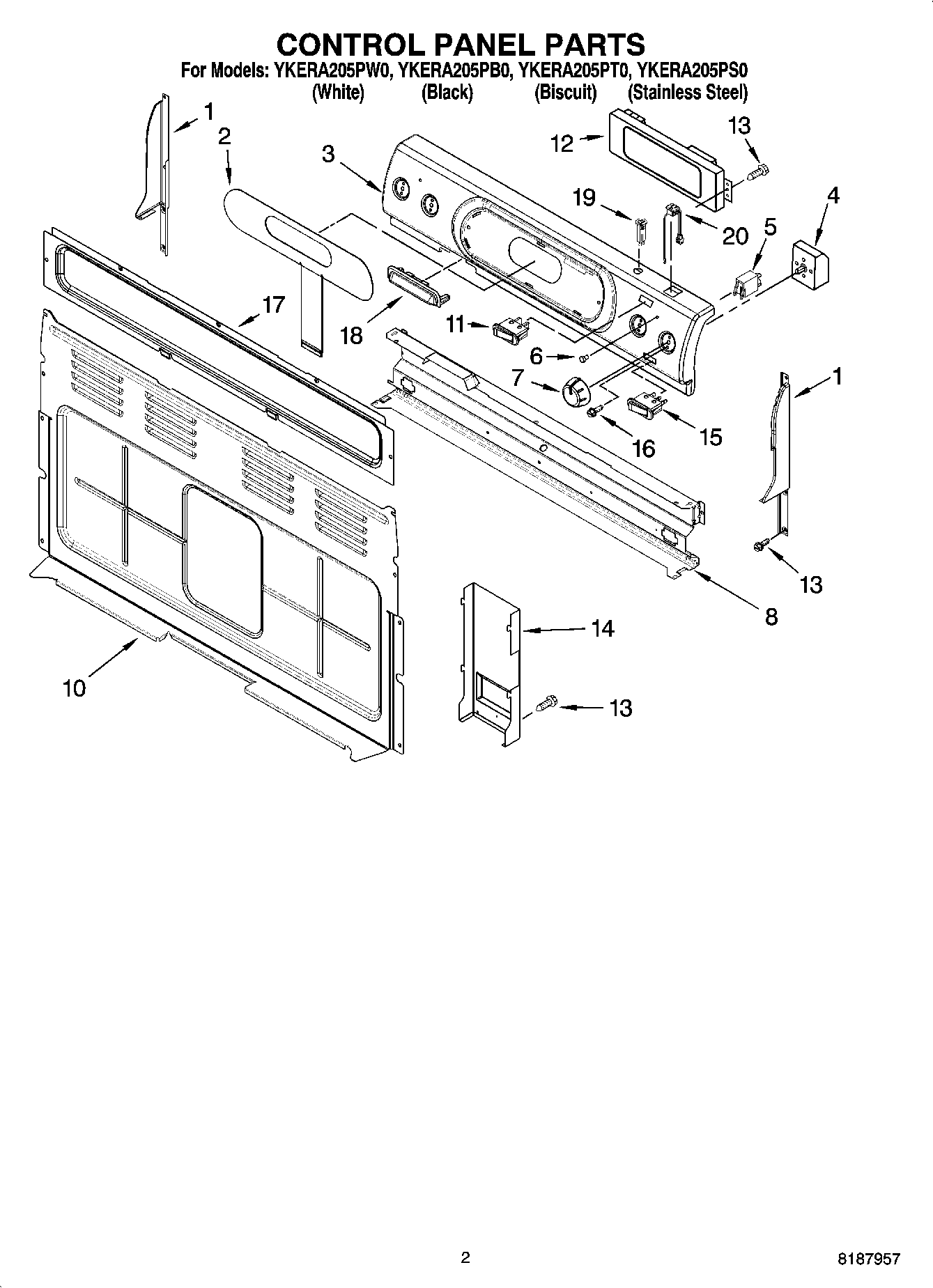

YKERA205PB0 02 – CONTROL PANEL PARTSadmin2025-04-26T11:05:29+00:00YKERA205PB0 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Endcap (Biscuit Left Hand) |
| 1 | Endcap (Biscuit Right Hand) |
| 1 | Endcap (Black Left Hand) |
| 1 | Endcap (Black Right Hand) |
| 1 | Endcap (White Left Hand) |
| 1 | Endcap (White Right Hand) |
| 2 | Membrane Switch (White) |
| 2 | Membrane Switch (Black) |
| 2 | Membrane Switch (Stainless Steel) |
| 2 | Membrane Switch (Biscuit) |
| 3 | Panel, Backguard (Biscuit) |
| 3 | Panel, Backguard (White) |
| 3 | Panel, Backguard (Stainless Steel) |
| 3 | Panel, Backguard (Black) |
| 4 | SWITCH-INF |
| 4 | WP3148952 Whirlpool Oven Infinite Switch |
| 4 | WP9757030 Whirlpool Infinite Switch |
| 5 | WP8523266 Whirlpool Indicator Light |
| 6 | WP3196068 Whirlpool Light Lens |
| 7 | Knob (Cashmere Metal) |
| 7 | Knob (White) |
| 7 | Knob (Black) |
| 7 | Knob (BIscuit) |
| 8 | Shield, Heat |
| 10 | Cover, Rear |
| 11 | WPW10163899 Whirlpool Switch |
| 11 | Switch, Simmer (White) |
| 12 | Control, Range |
| 13 | WP4449809 Whirlpool Screw |
| 14 | Cover, Box |
| 15 | Switch, Warming (White) |
| 15 | Switch, Warming (Biscuit) |
| 15 | Switch, Warming (Cashmere Metalic) |
| 15 | WPW10163902 Whirlpool Switch |
| 16 | WP3400882 Whirlpool Screw |
| 17 | Cover, Rear (Console) |
| 18 | Cover, Vent (Biscuit) |
| 18 | Cover, Vent (White) |
| 18 | Cover, Vent (Black) |
| 18 | Cover, Vent (Cashmere Metalic) |
| 19 | WP9757602 Whirlpool Breaker |
| 19 | Breaker, 15Amp (Architect Grey) |
| 19 | WP9757601 Whirlpool Breaker |
| 19 | Breaker, 15Amp (Biscuit) |
| 20 | WPL 9756358 |
| 20 | WPL 9756359 |
| 20 | WPL 9756360 |
| 20 | WPL 9757357 |
