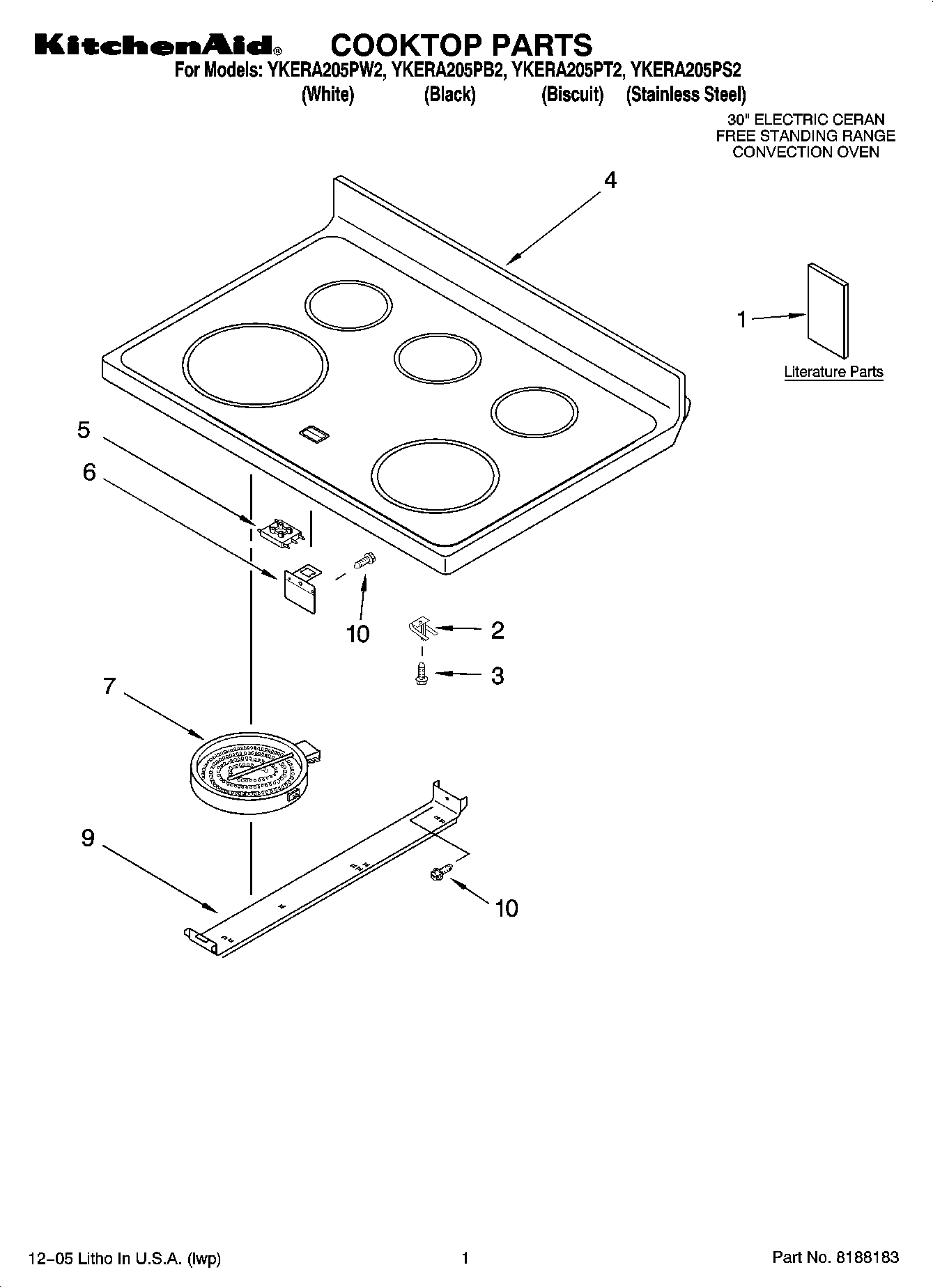

YKERA205PB2 01 – COOKTOP PARTSadmin2025-04-26T11:08:55+00:00YKERA205PB2 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | Use & Care Guide |
| 1 | Guide, Easy Set (French) |
| 1 | Tech Sheet |
| 1 | Installation Instructions Template, Anti-Tip |
| 1 | Guide, Easy Set |
| 1 | Anti-Tip Template (English/French) |
| 1 | Anti-Tip Template (English/Spanish) |
| 2 | Spring, Locator |
| 3 | WP3196170 Whirlpool Screw |
| 4 | Cooktop (Biscuit) |
| 4 | Cooktop (Stainless) |
| 4 | Cooktop (Black) |
| 4 | Cooktop (White) |
| 5 | Light, Indicator (Hot Surface) |
| 6 | Bracket, Ind Light |
| 7 | WP8273993 Whirlpool Surface Element |
| 7 | ELMNT-SURF |
| 7 | Element, Surface (1800/800 W - RR) |
| 7 | Element, Surface (100 W - CR) |
| 7 | WP8523047 Whirlpool Surface Element Assembly |
| 9 | Bracket, Element ((2)) |
| 9 | Bracket, Element ((1)) |
| 10 | WP3196557 Whirlpool Screw |
