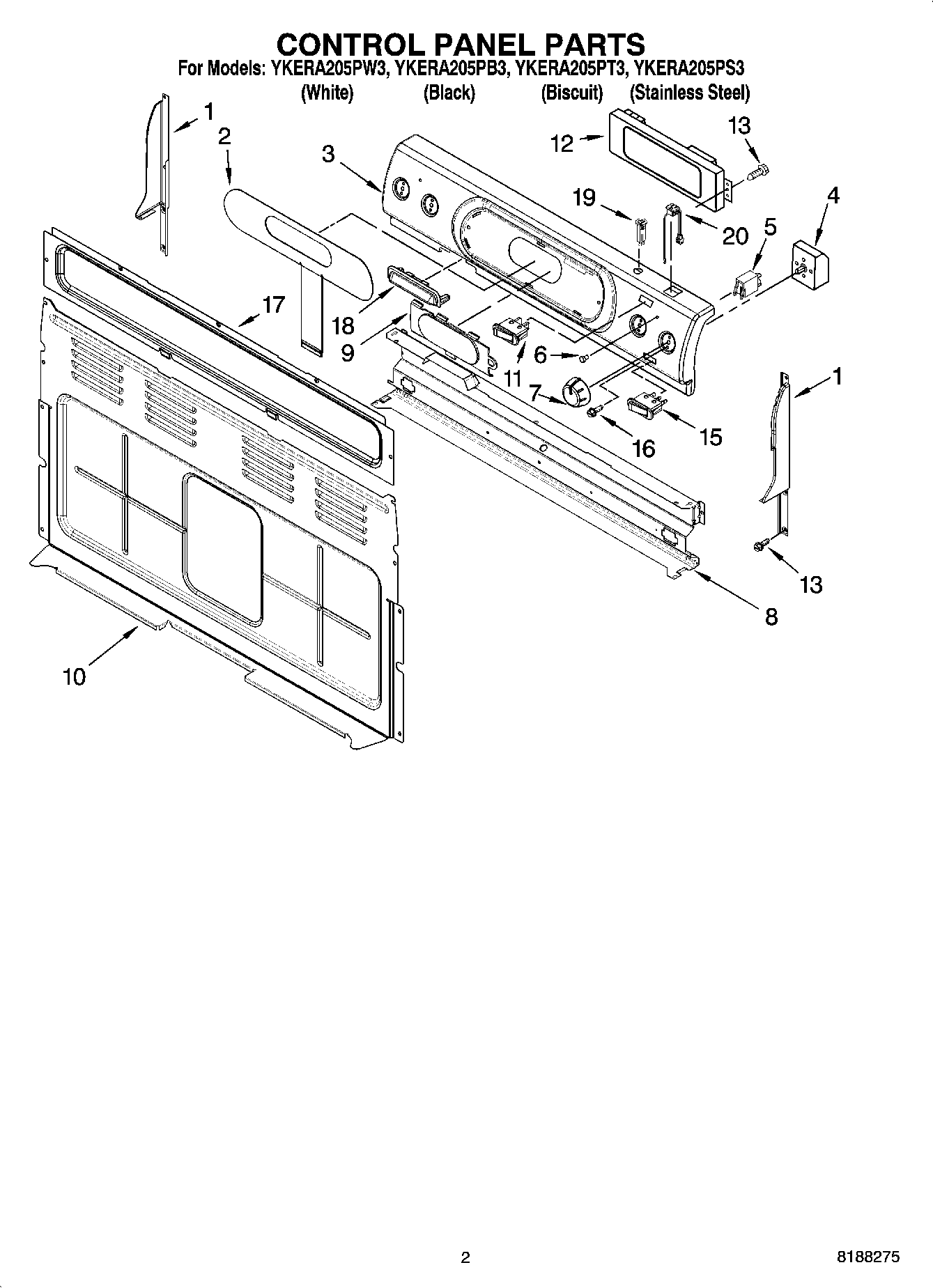

YKERA205PS3 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Endcap (Black Right Hand)
1	Endcap (Biscuit Left Hand)
1	Endcap (Biscuit Right Hand)
1	Endcap (Black Left Hand)
1	Endcap (White Left Hand)
1	Endcap (White Right Hand)
2	Membrane Switch (White)
2	Membrane Switch (Stainless Steel)
2	Membrane Switch (Black)
2	Membrane Switch (Biscuit)
3	Panel, Backguard (Stainless Steel)
3	Panel, Backguard (Black)
3	Panel, Backguard (Biscuit)
3	Panel, Backguard (White)
4	WP9757030 Whirlpool Infinite Switch
4	WP3148952 Whirlpool Oven Infinite Switch
4	SWITCH-INF
5	WP8523266 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	Knob (White)
7	Knob (Black)
7	Knob (BIscuit)
7	Knob (Cashmere Metal)
8	Shield, Heat
9	Membrane, Insert
10	Cover, Rear
11	WPW10163899 Whirlpool Switch
11	Switch, Simmer (White)
12	Control, Range
13	WP4449809 Whirlpool Screw
15	Switch, Warming (Cashmere Metalic)
15	WPW10163902 Whirlpool Switch
15	Switch, Warming (Biscuit)
15	Switch, Warming (White)
16	WP3400882 Whirlpool Screw
17	Cover, Rear (Console)
18	Cover, Vent (Cashmere Metalic)
18	Cover, Vent (Black)
18	Cover, Vent (Biscuit)
18	Cover, Vent (White)
19	Breaker, 15Amp (Biscuit)
19	Breaker, 15Amp (Architect Grey)
19	WP9757602 Whirlpool Breaker
19	WP9757601 Whirlpool Breaker
20	Receptacle (Stainless Steel)
20	Receptacle (Black)
20	Receptacle (2)
20	Receptacle (Biscuit)
