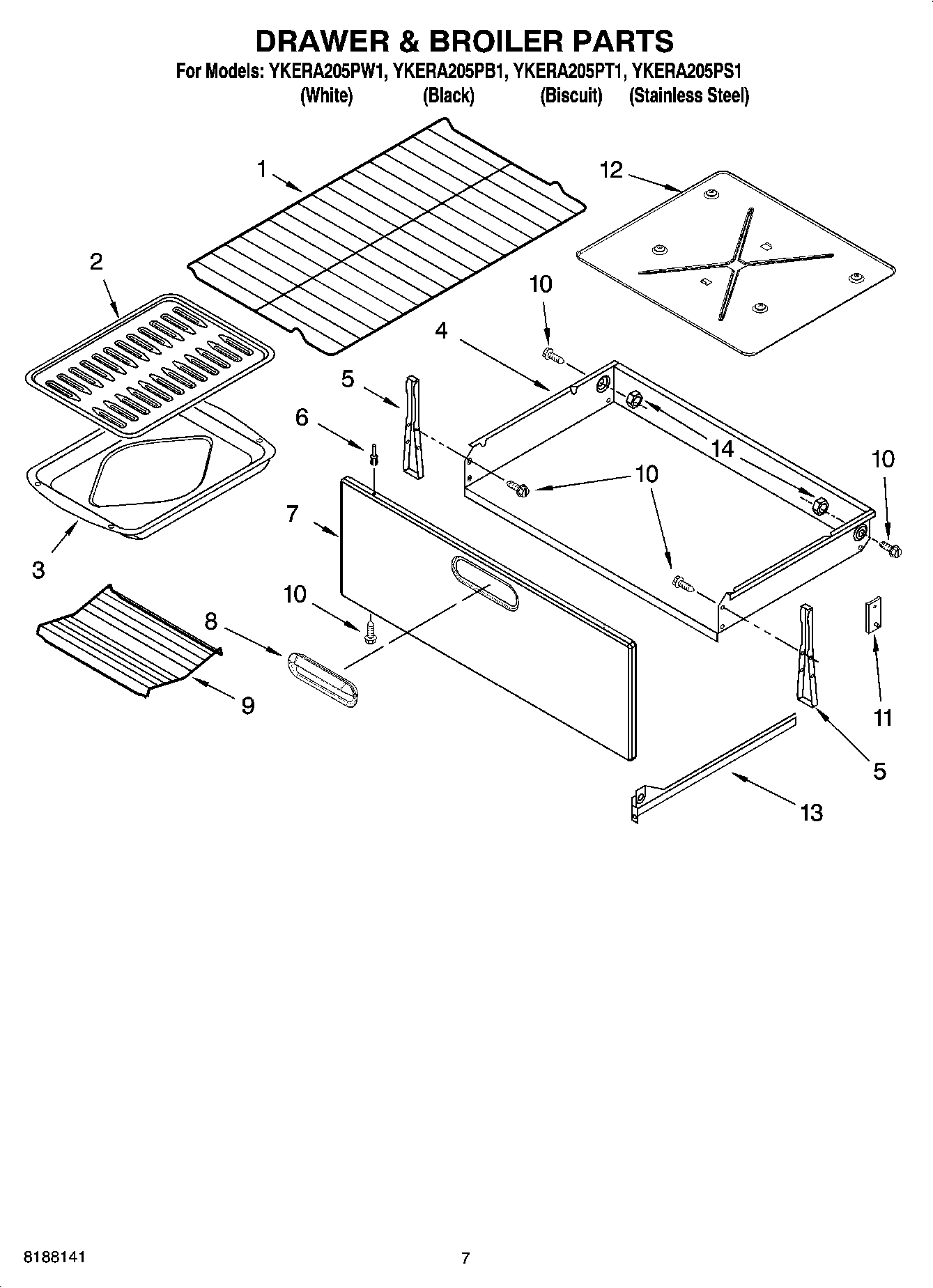

YKERA205PW1 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

YKERA205PW1 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Written by

in

YKERA205PW1 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI166726A
Grease
3196696 Whirlpool Clip
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
WPL 9756779
WP3196154 Whirlpool Screw Assembly
WPL 8524132
WPL 9756550
WPL ARI166725A
WPL ARI166724A
WPL ARI166723A
WPL ARI166722A
WPL ARI166721A
WPL ARI166720A
WPL ARI166719A
WPL 9759579
WPL 9756350
WPL 9757332
WPL 9756745
WPL 9756708
WPL 9756707
Clip, Ground Wire
350930 Whirlpool White Spray Paint
W11447673 Whirlpool Range Tip Anchor
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
Cleaner (Stainless Steel)
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
814381 Whirlpool Pin
WPL 9758191
16515 Whirlpool Clip
Wire (14 Ga. 150 c Yellow)
3400964 Whirlpool Oven Clip
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
6WP3196813 Whirlpool Rivet
63196815 Whirlpool Oven Rivet
6WP3196814 Whirlpool Rivet
7Panel, Drawer Front (Stainless Steel)
7Panel, Drawer Front (Black)
7Panel, Drawer Front (Biscuit)
7Panel, Drawer Front (White)
8Handle, Drawer (White)
8Handle, Drawer (Black)
8Handle, Drawer (S.Steel)
8Handle, Drawer (Biscuit)
9Rack, Roasting
10WP3400832 Whirlpool Screw
11Spacer, Glide
12Heat Shield, Drawer
13Rail, Drawer (Left Hand)
13Rail, Drawer (Right Hand)
14WP487939 Whirlpool Refrigerator Nut
