YKERA807PB00 01 – COOKTOP PARTS

YKERA807PB00 01 – COOKTOP PARTS

Written by

in

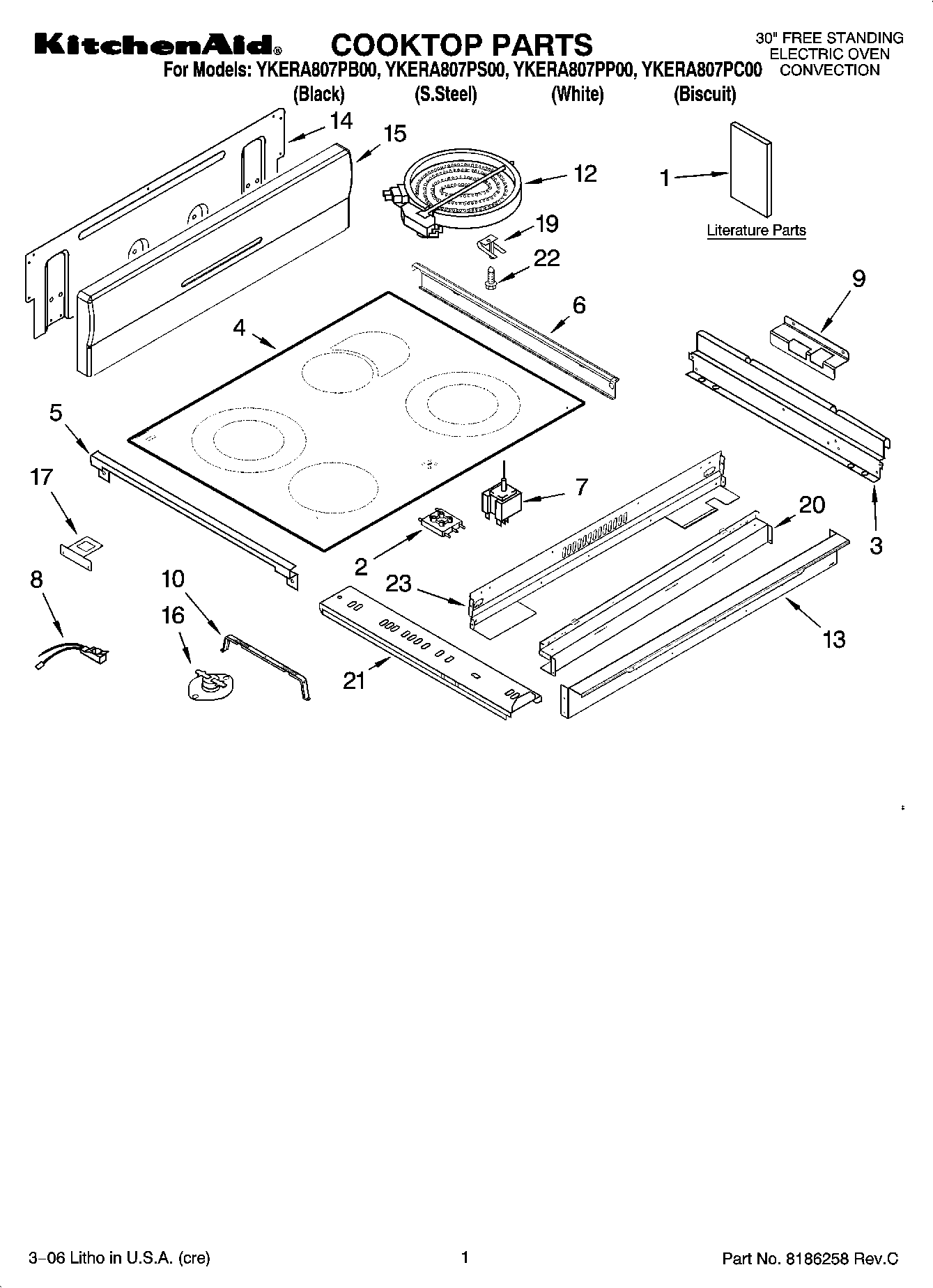

YKERA807PB00 01 – COOKTOP PARTS

Products

PositionProduct
1Anti-Tip Instruct.
1Safe Cooking Tips
1Tech Sheet
1Use & Care Guide
1Installation Instructions
1Use & Care Guide (French)
2Light, Indicator (Hot Surface)
3Bracket, Mounting
4Cooktop (Black)
4Cooktop (Biscuit)
4Cooktop (White)
4Cooktop (S.Steel)
4Gasket
5Clip, Ceran (2)
6Trim-CkTop, SI (Black RH)
6Trim-CkTop, SI (Biscuit LH)
6Trim-CkTop, SI (S.Steel LH)
6Trim-CkTop, SI (White RH)
6Trim-CkTop, SI (S.Steel RH)
6Trim-CkTop, SI (Biscuit RH)
6Trim-CkTop, SI (White LH)
6Trim-CkTop, SI (Black LH)
7Switch, Infinite (LF, RR, LR)
7Switch, Infinite (RF)
8Light, Indicator
9Support (R.Hand)
9Support (L.Hand)
10WP9756821 Whirlpool Support
10WP4449809 Whirlpool Screw
12W10823692 Whirlpool Dual Radiant Element
12Element, Surface (1800/1000W)
12W10823698 Whirlpool Surface Element Right Rear
13Bracket, Front Support
14Cover, Backsplash Rear
15Backsplash (S.Steel Gasket)
15Backsplash (Gray)
15Backsplash (Black)
15Backsplash (Biscuit)
15Backsplash (Black)
15Backsplash (White)
16WP9759944 Whirlpool Thermostat
17W10491985 Whirlpool Screw
17Bracket, Ind. Lamp
19Spring, Locator
20Bracket, Rear Sprt
21Rail, Element (2)
23Screw (4)
23Cover
