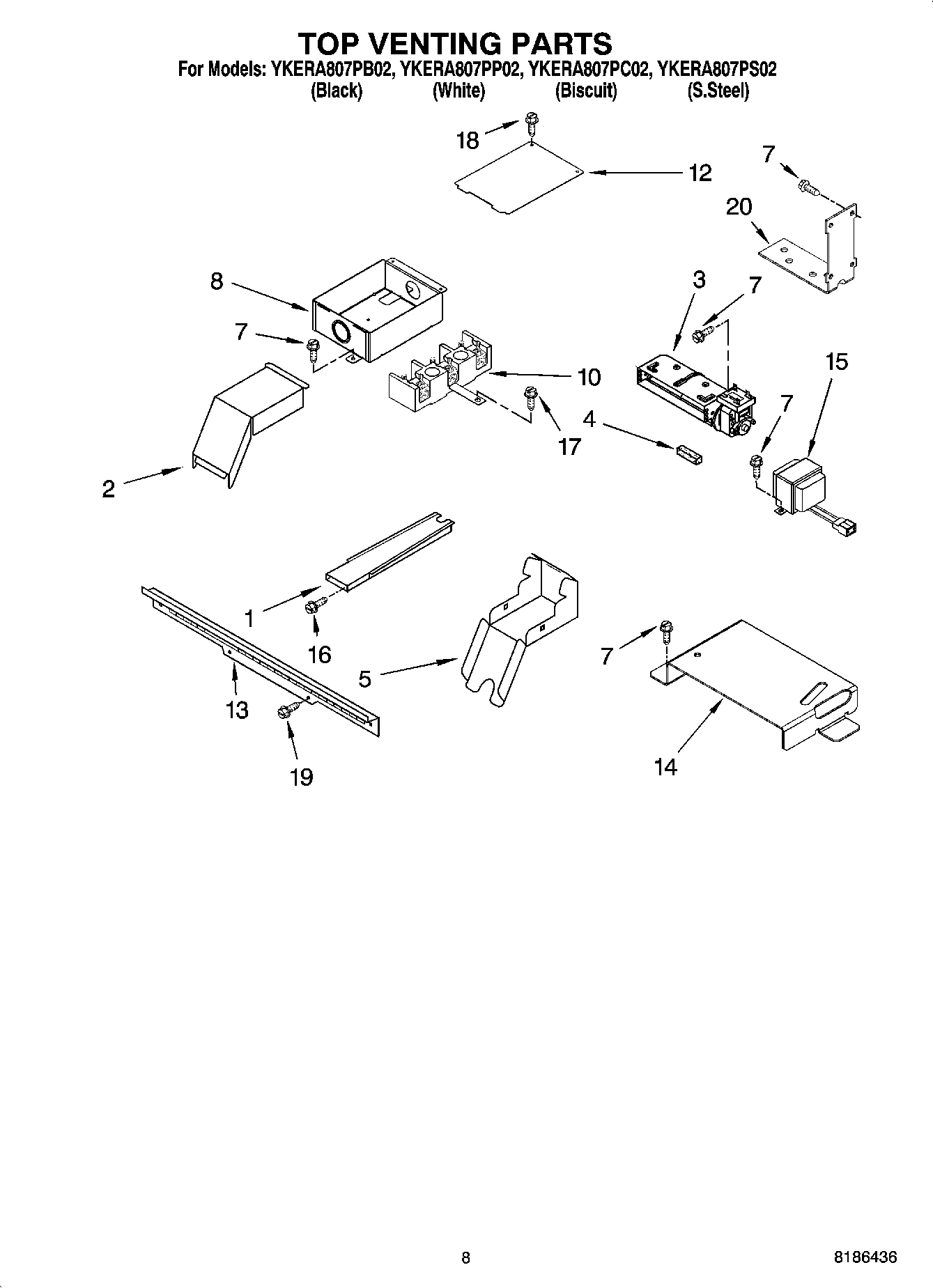

YKERA807PB02 06 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI137605A
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
	WPL 9760531
	Wire (14 Ga. 200 c Brown)
	WPL ARI137604A
	WPL ARI137603A
	Conduit
	Cord, Power
	WP9759877 Whirlpool Retainer
	261900 Whirlpool Microwave Spray
	WPL ARI137606A
	WPL 591014
	1
	WPL 9762523
	Harness,
	Harness, Wire
	4450800 Whirlpool Oven Screw
	4448664 Whirlpool Oven Mounting Bracket
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	Wire, 25` Roll (Black 14 Ga.)
	WP4449809 Whirlpool Screw
	WP112432 Whirlpool Nut Assembly
	WPW10339879 Whirlpool Wire Tie
	285006 Whirlpool Spray
	Spacer, Harness
	16515 Whirlpool Clip
	WP4448950 Whirlpool Screw
	W11447673 Whirlpool Range Tip Anchor
	WP3400015 Whirlpool Screw
	814381 Whirlpool Pin
	WP482338 Whirlpool Refrigerator Adhesive
	72032 Whirlpool Touch Up Paint Black
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	W10810687 Whirlpool Blower Assembly
4	W10491987 Whirlpool Foam Seal
5	4455177 Whirlpool Oven Bottom Elbow
8	Box, Terminal
10	WP8203546 Whirlpool Terminal Block
12	Cover, Terminal Box
13	Vent, (Control Panel)
14	WP9757829 Whirlpool Mounting Bracket
15	Transformer
16	Screw
17	Screw
18	W10491985 Whirlpool Screw
19	WP4450038 Whirlpool Screw
20	WP4455352 Whirlpool Mounting Bracket
