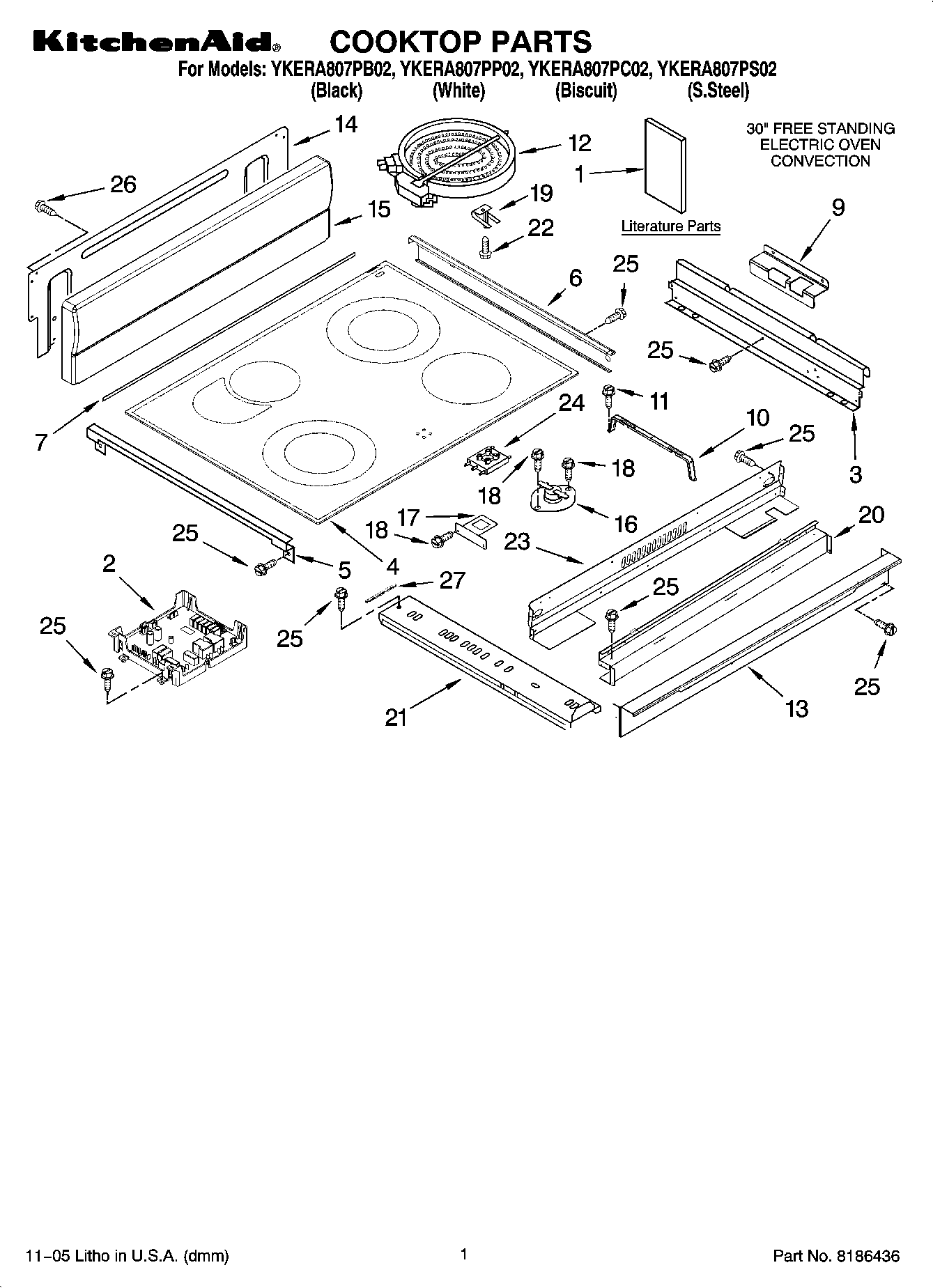

YKERA807PC02 01 – COOKTOP PARTSadmin2025-04-26T11:07:15+00:00YKERA807PC02 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | Guide, Easy Set |
| 1 | Use & Care Guide |
| 1 | Installation Instructions |
| 1 | Tech Sheet |
| 1 | Safe Cooking Tips (French) |
| 1 | Anti-Tip Instruct. |
| 1 | Safe Cooking Tips |
| 1 | Use & Care Guide (French) |
| 1 | Guide, Easy Set (French) |
| 2 | Central, Appliance |
| 3 | Bracket, Mounting |
| 4 | Cooktop (Black) |
| 4 | Cooktop (Biscuit) |
| 4 | Cooktop (S.Steel) |
| 4 | Cooktop (White) |
| 5 | Clip, Ceran (2) |
| 6 | Trim-CkTop, SI (Black RH) |
| 6 | Trim-CkTop, SI (Biscuit RH) |
| 6 | Trim-CkTop, SI (White LH) |
| 6 | Trim-CkTop, SI (S.Steel LH) |
| 6 | Trim-CkTop, SI (Biscuit LH) |
| 6 | Trim-CkTop, SI (Black LH) |
| 6 | Trim-CkTop, SI (White RH) |
| 6 | Trim-CkTop, SI (S.Steel RH) |
| 7 | Gasket |
| 9 | Support (L.Hand) |
| 9 | Support (R.Hand) |
| 10 | WP9756821 Whirlpool Support |
| 11 | WP4449809 Whirlpool Screw |
| 12 | W10823692 Whirlpool Dual Radiant Element |
| 12 | W10823730 Whirlpool Surface Element |
| 12 | W10823698 Whirlpool Surface Element Right Rear |
| 13 | Bracket, Front Support |
| 14 | Cover, Backsplash Rear |
| 15 | Backsplash (White) |
| 15 | Backsplash (Biscuit) |
| 15 | Backsplash (Black) |
| 15 | Backsplash (Gray) |
| 15 | Backsplash (Black) |
| 15 | Backsplash (S.Steel Gasket) |
| 16 | WP9759944 Whirlpool Thermostat |
| 17 | Bracket, Ind. Lamp |
| 18 | W10491985 Whirlpool Screw |
| 19 | 9759094 Whirlpool Spring |
| 20 | Bracket, Rear Sprt |
| 21 | Rail, Element (2) (Side (3)) |
| 21 | Rail, Element (2) (Center (1)) |
| 22 | WP486754 Whirlpool Compactor Screw |
| 23 | Cover, Cktp Rear |
| 24 | Light, Indicator (Hot Surface) |
| 25 | WP3196557 Whirlpool Screw |
| 26 | SCREW |
| 27 | WP4448444 Whirlpool Grommet |
