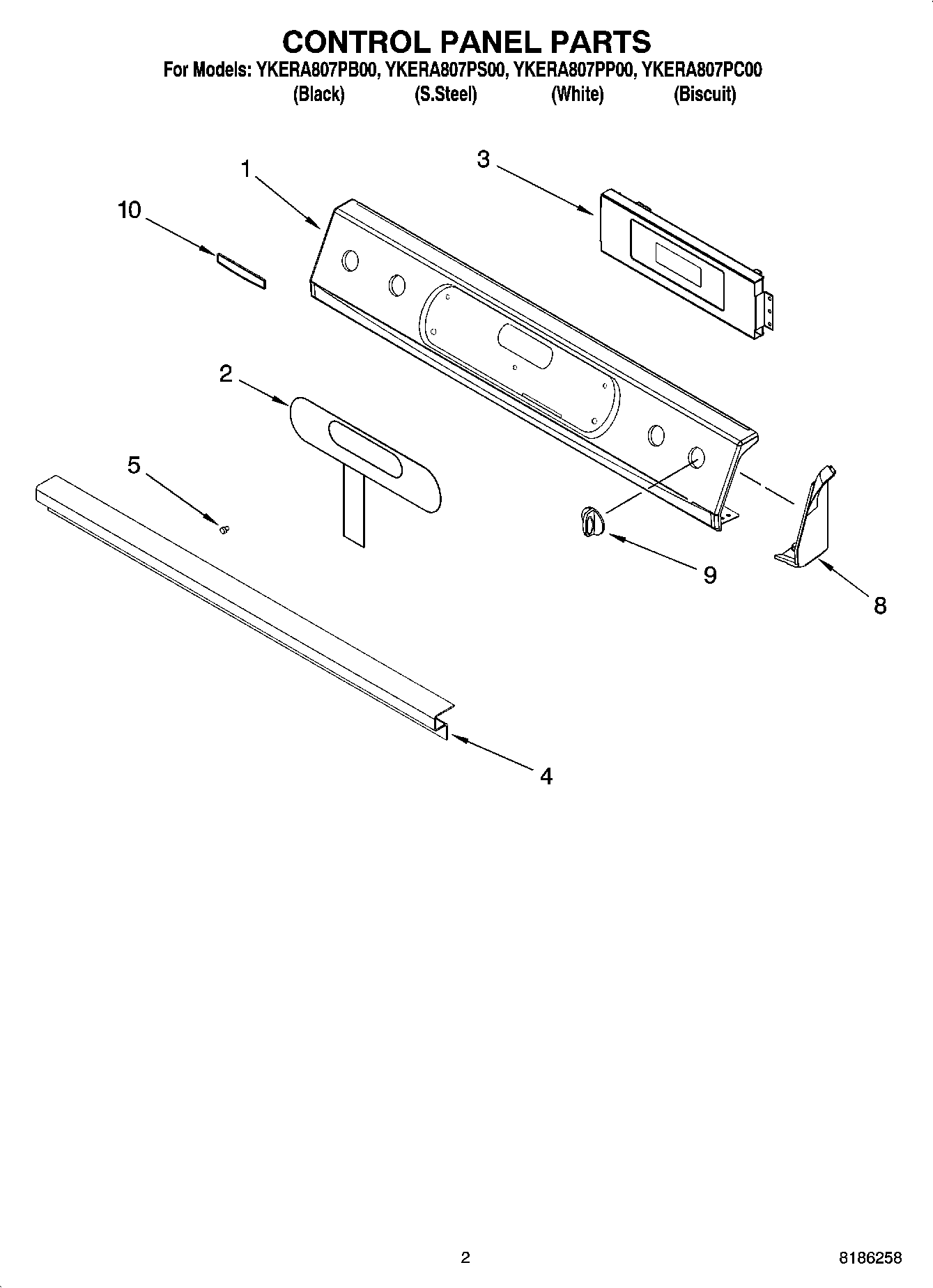

YKERA807PP00 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel (S.Steel)
1Control Panel (White)
1Control Panel (Black)
1Control Panel (Biscuit)
2Membrane Switch (Biscuit)
2WP9756595ES Whirlpool Membrane Switch
2Membrane Switch (Black)
2WP3400832 Whirlpool Screw
2Membrane Switch (White)
3Screw
3Control, Interface
4Bracket, Console
4Screw (4)
5WP3196068 Whirlpool Light Lens
83196172 Whirlpool Oven Screw
8Endcap (White RH)
8Endcap (S.Steel RH)
8Endcap (Biscuit RH)
8Endcap (Black RH)
8Endcap (White LH)
8Endcap (S.Steel LH)
8Endcap (Biscuit LH)
8Endcap (Black LH)
9Knob (Black)
9Knob (BIscuit)
9Knob (White)
10Nameplate (Black)
10Nameplate (Biscuit)
10Nameplate (White)
10Palnut
