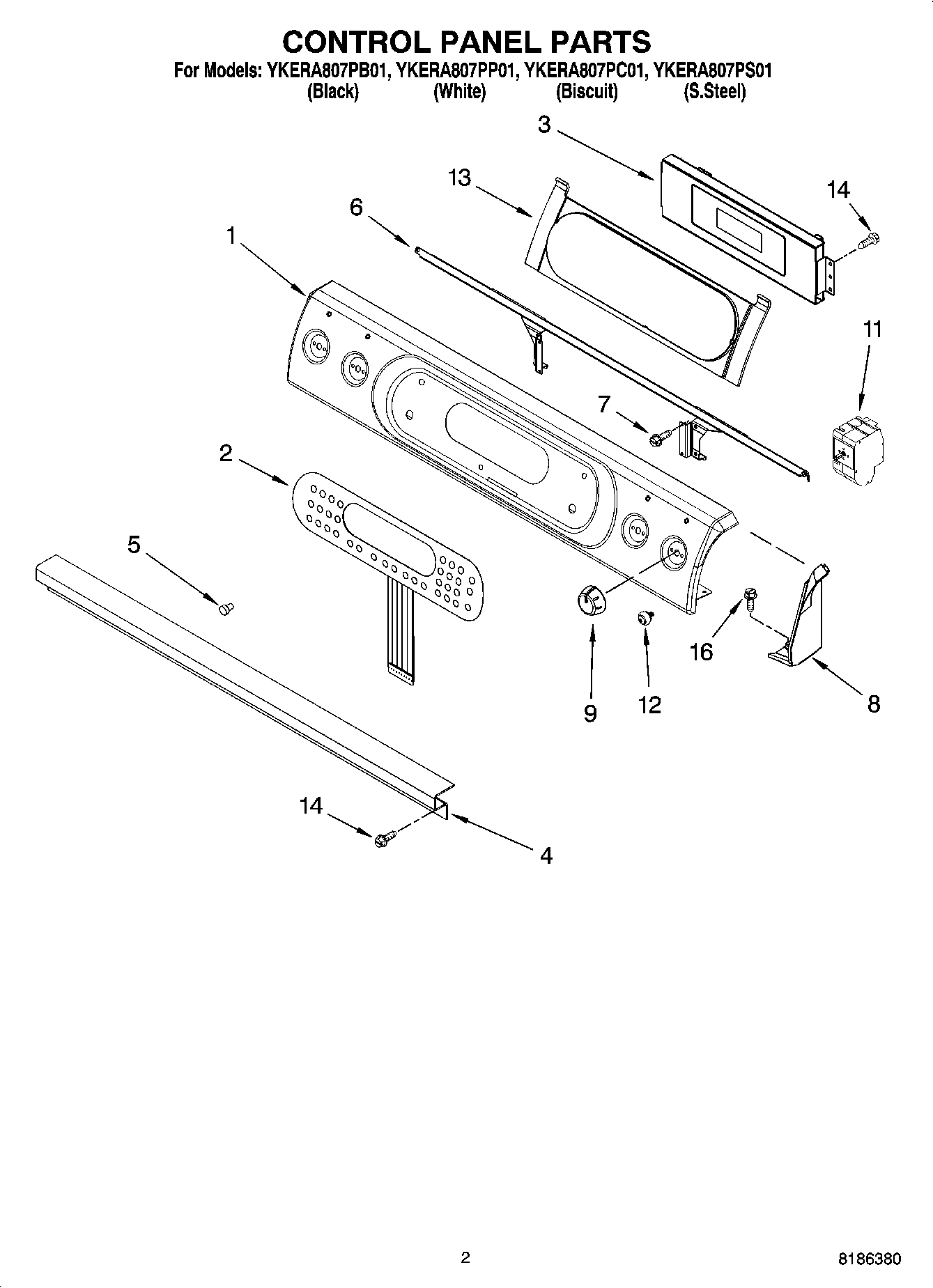

YKERA807PP01 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel (S.Steel)
1Control Panel (Black)
1Control Panel (Biscuit)
1Control Panel (White)
2Membrane Switch (White)
2Membrane Switch (Biscuit)
2Membrane Switch (Black)
2WP9756595ES Whirlpool Membrane Switch
3Control, Interface
4Bracket, Console
5WP3196068 Whirlpool Light Lens
6Bracket, User Interface
7WP486579 Whirlpool Air Conditioner Screw
8Endcap (S.Steel RH)
8Endcap (White RH)
8Endcap (Biscuit RH)
8Endcap (Black RH)
8Endcap (White LH)
8Endcap (S.Steel LH)
8Endcap (Biscuit LH)
8Endcap (Black LH)
9Knob (Cashmere Metal)
9Knob (White)
9Knob (BIscuit)
9Knob (Black)
11Switch, Infinite (RF)
11Switch, Infinite (LF, RR, LR)
12Bushing
13Insert, Membrane
14WP3196557 Whirlpool Screw
163196172 Whirlpool Oven Screw
