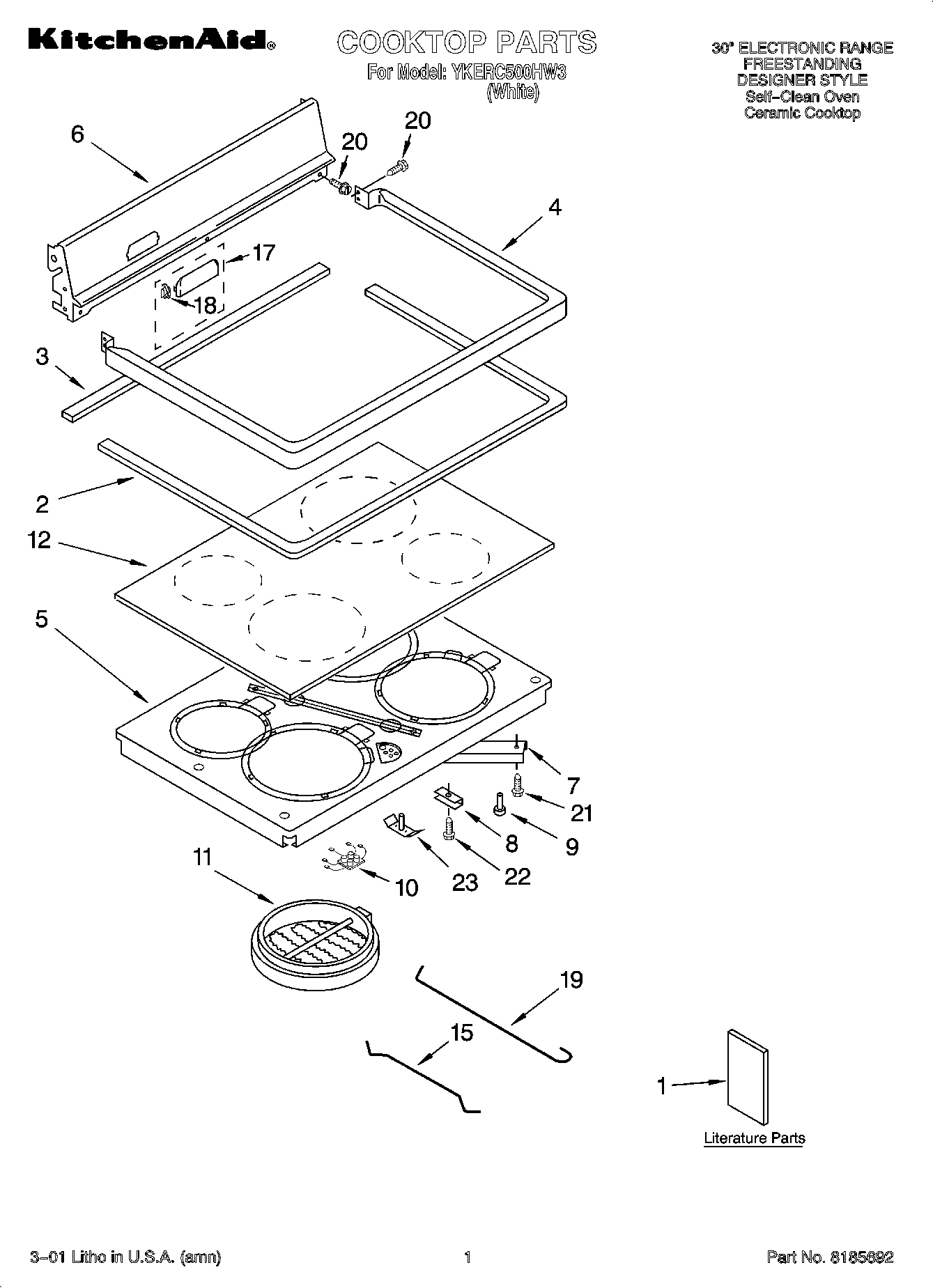

YKERC500HW3 01 – COOKTOP PARTS

Products

Position	Product
1	Use & Care Guide (French)
1	Literature Parts (Wiring Diagram)
1	WPL LIT9752776
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Installation Instructions)
2	WP9780939 Whirlpool Cooktop Gasket
3	Rear Gasket
4	Frame, Cooktop (White)
5	Support, Element
6	Back Splash (White)
7	Brace, Support
8	Support Clips (4)
9	238614 Whirlpool Bumper Hinge
10	Hot Light
11	W10823699 Whirlpool Right Front Surface Element
11	WP8523700 Whirlpool Surface Element
11	W10823698 Whirlpool Surface Element Right Rear
11	W10823692 Whirlpool Dual Radiant Element
12	Cooktop, Ceran (White)
15	Rod, Small Ceran Element
17	Cover, Vent (White)
18	Clip, Vent Cover
19	Rod, Large Ceran Element
20	Back Splash (Screw (4) 10AB x 1/2“)
21	Screw (4) 10 x 1/2
22	Screw, (4) 10PH-B x 3/4
23	WP9781235 Whirlpool Clip
23	Spring, Warm Zone Element
