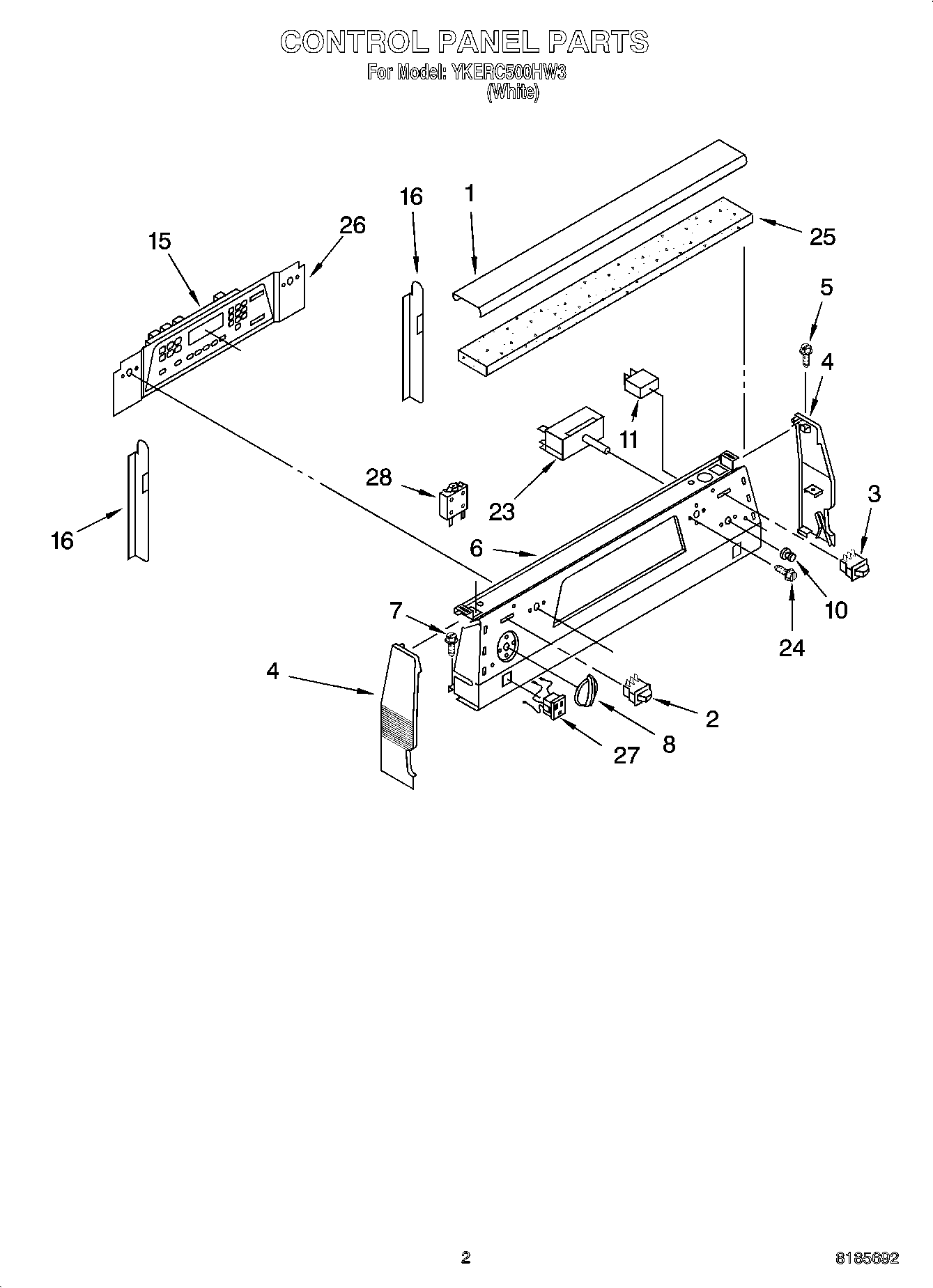

YKERC500HW3 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Lamp Cover (White)
2	Switch, Warm Zone (White)
3	Switch, Simmer (White)
4	End Cap (Left Hand) (White)
4	End Cap (Right Hand) (White)
5	WP4159387 Whirlpool Compactor Screw
6	Panel, Control
7	Panel, Control (Screw, (2) 8 x 3/8)
8	WP9750372FW Whirlpool Knob Assembly
10	WP9750343 Whirlpool Light Lens
11	Light, Indicator
15	Oven Control Assembly (White)
16	Brace, Control Pnl
23	8203538 Whirlpool Oven Infinite Switch
23	WP9750639 Whirlpool Infinite Switch
23	WP9750638 Whirlpool Infinite Switch
24	WP3400882 Whirlpool Screw
25	Insulation, Cntrl
26	Bracket, Timer
27	Outlet, Untimed
27	WPL 9751046
28	Breaker, 15 Amp
28	Insulation, Control Panel
