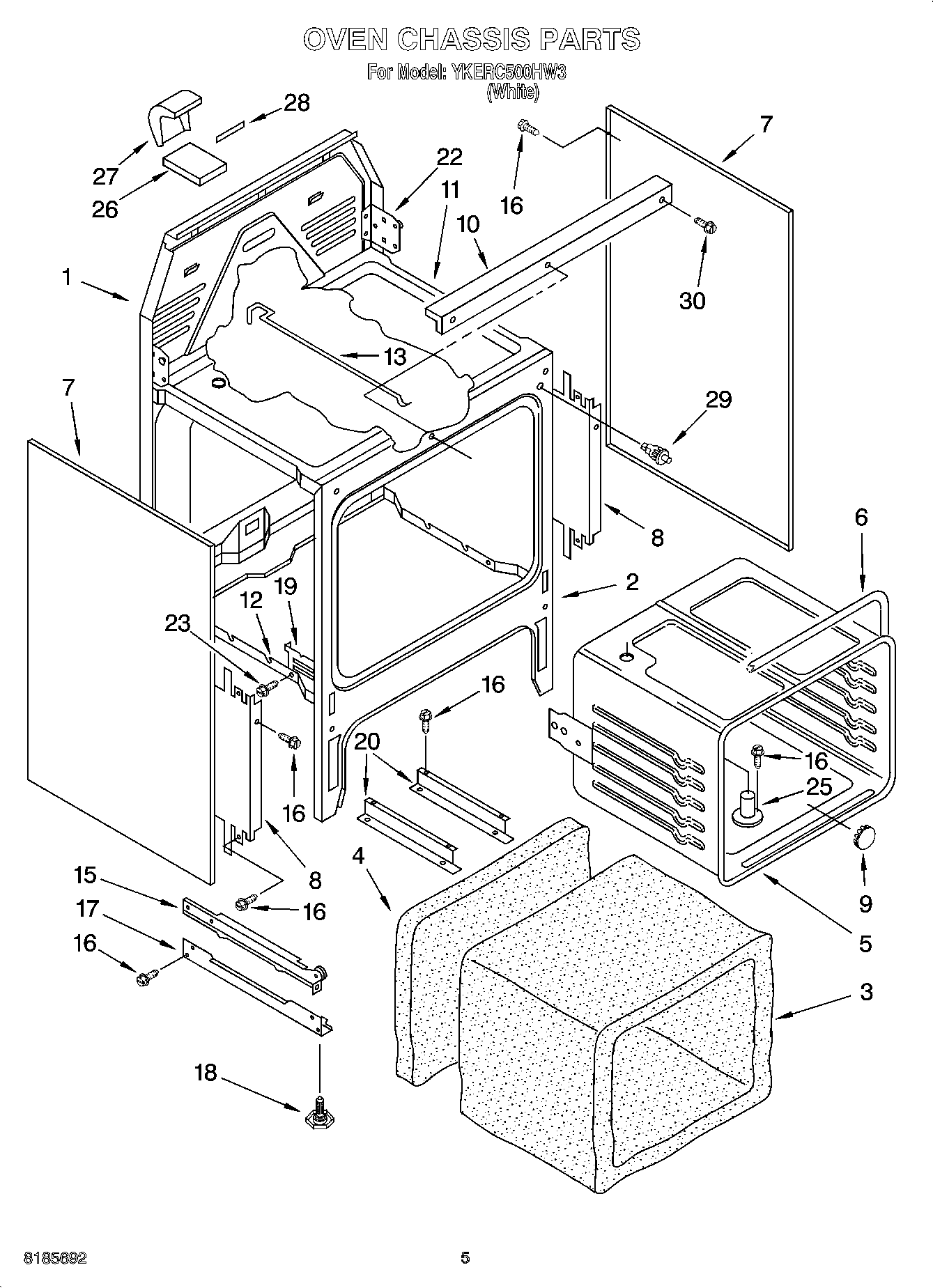

YKERC500HW3 04 – OVEN CHASSIS PARTS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Body, Side (White)
8	Shield, Insulation
9	Button, Plug
10	Guard, Wire
11	Burner Box
12	Oven Bottom
13	Rod, Lock
15	Rail, Drawer (Right)
15	Drawer Rail, Left
16	WP4159387 Whirlpool Compactor Screw
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Base L or R
20	Support Rail
22	Hinge, Cktp.-Left
22	Hinge, Cktp.-Right
23	Screw (4) 10 x 1/2
25	Vent Tube
26	Cover, Vent
27	Back, Vent
28	Vent Gasket
29	Door Switch (Oven Light)
30	Screw
