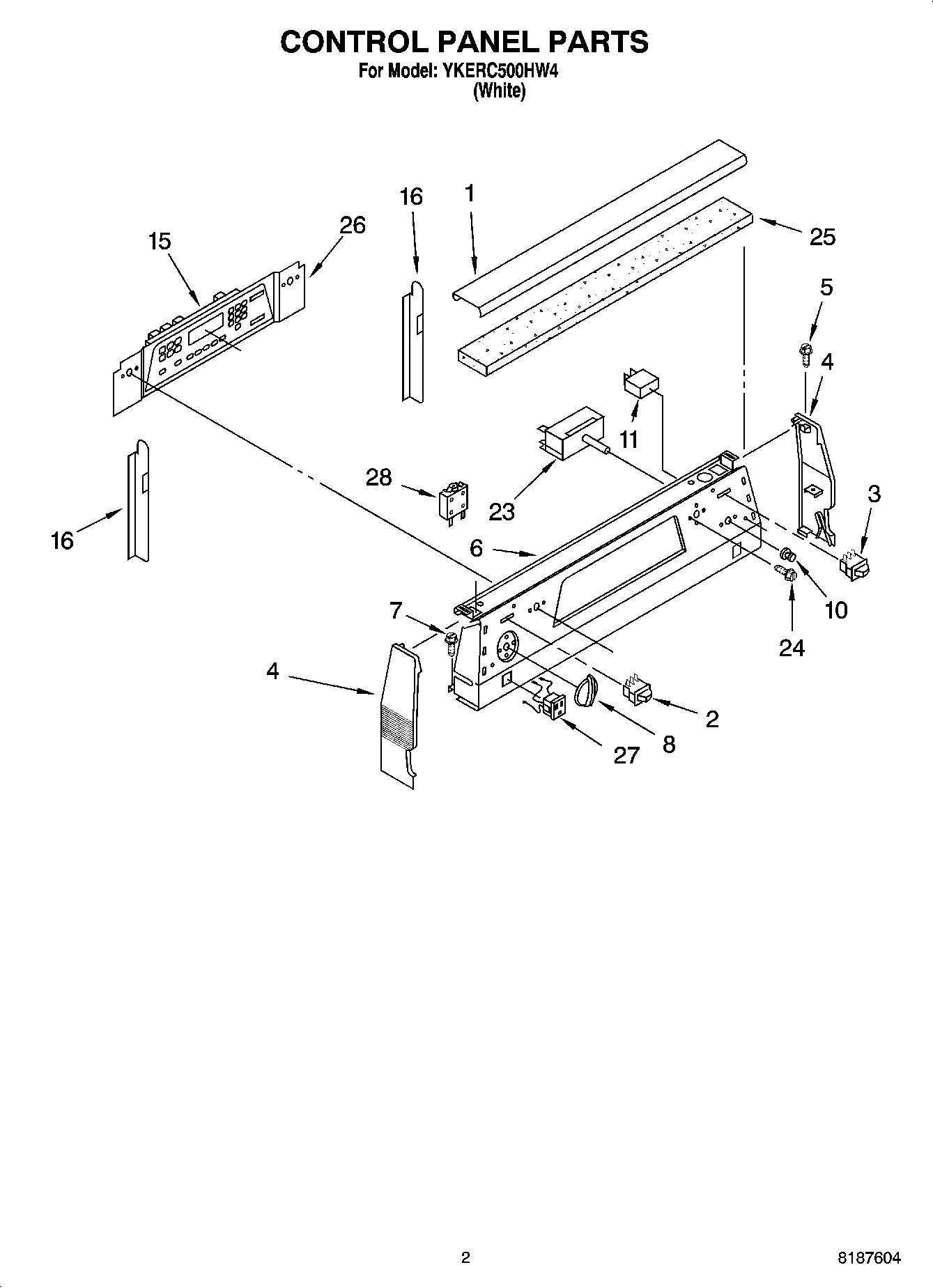

YKERC500HW4 02 – CONTROL PANEL PARTSadmin2025-04-26T11:09:26+00:00YKERC500HW4 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Lamp Cover (White) |
| 2 | Switch, Warm Zone (White) |
| 3 | Switch, Simmer (White) |
| 4 | End Cap (Left Hand) (White) |
| 4 | End Cap (Right Hand) (White) |
| 5 | WP4159387 Whirlpool Compactor Screw |
| 6 | Panel, Control |
| 7 | Panel, Control (Screw, (2) 8 x 3/8) |
| 8 | WP9750372FW Whirlpool Knob Assembly |
| 10 | WP9750343 Whirlpool Light Lens |
| 11 | Light, Indicator |
| 15 | Oven Control Assembly (White) |
| 16 | Brace, Control Pnl |
| 23 | WP9750639 Whirlpool Infinite Switch |
| 23 | WP9750638 Whirlpool Infinite Switch |
| 23 | WP9755173 Whirlpool Infinite Switch |
| 24 | WP3400882 Whirlpool Screw |
| 25 | Insulation, Cntrl |
| 26 | Bracket, Timer |
| 27 | Outlet, Untimed |
| 27 | WPL 9751046 |
| 28 | Breaker, 15 Amp |
| 28 | Insulation, Control Panel |
