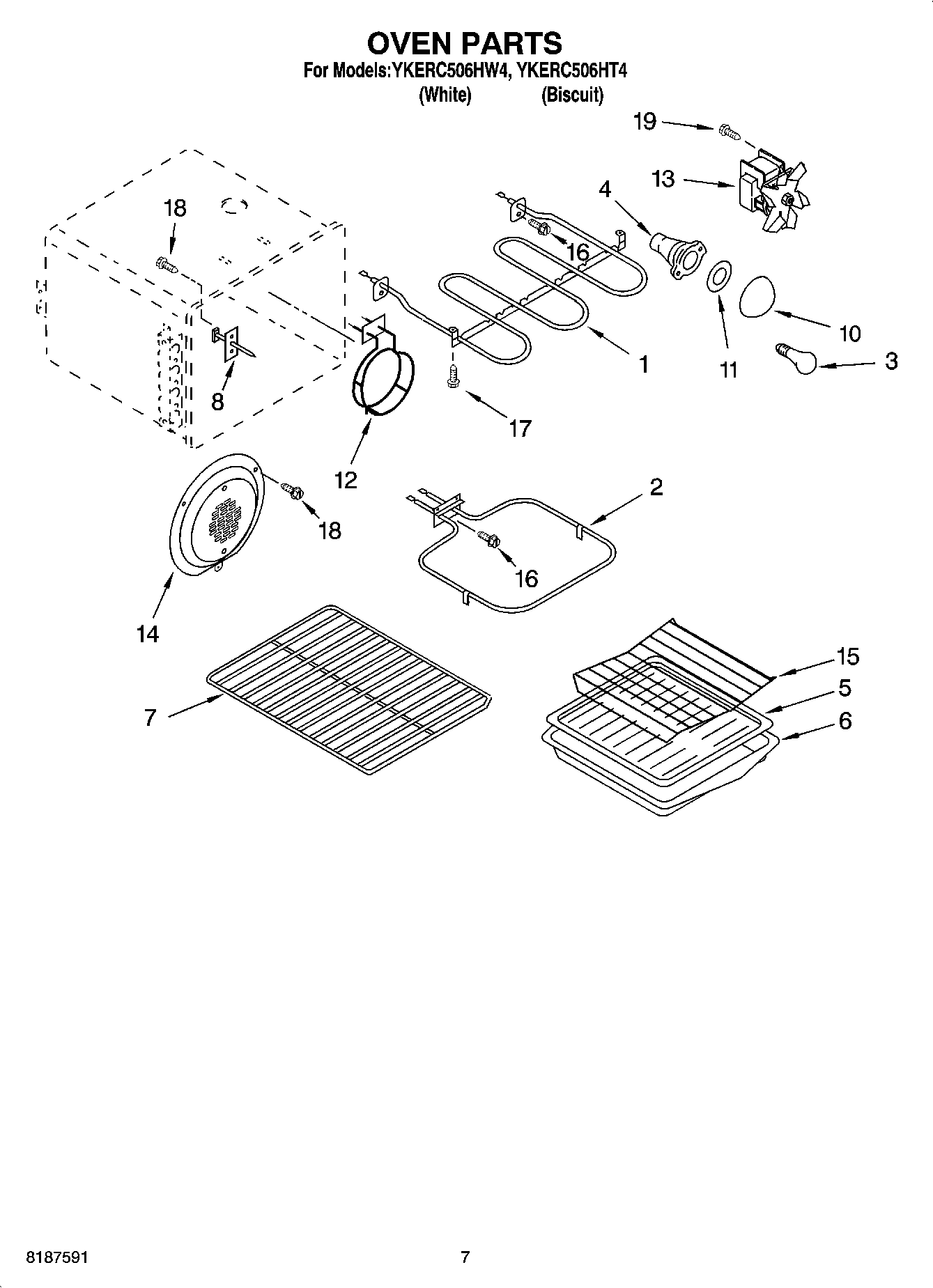

YKERC506HW4 05 – OVEN PARTS, MISCELLANEOUS PARTS

YKERC506HW4 05 – OVEN PARTS, MISCELLANEOUS PARTS

Written by

in

YKERC506HW4 05 – OVEN PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI137685A
WPL 9752772
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
WPL 9781542
WPL 9753680
WPL 9753682
WPL ARI137684A
WPL ARI137683A
WPL 9782140
WPL 9782121
Insulation, Control Panel
WPL 9781291
PT400 Whirlpool Range Power Cord
Grease
WPL ARI137686A
8212471 Whirlpool Oven Paint
WPL 9781930
WPL 9753687
Hanger, Cable
511873 Whirlpool Refrigerator Paint
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
72017 Whirlpool Appliance Touch-Up Paint White
4392901 Whirlpool Biscuit Spray Paint
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
4392899 Whirlpool Biscuit Touch-Up Paint
SCREW
350956 Whirlpool Spray Assembly
Wire, 25` Roll (Black 14 Ga.)
WPL 9750744
350930 Whirlpool White Spray Paint
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
350942 Whirlpool Spray Paint
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
WPW10339879 Whirlpool Wire Tie
Wire, 25“ Roll (White 14 GA.)
1Element, Broil
2ELMNT-BAKE
3RANGE ONLY 40W 120V APPL BULB
4W11594027 Whirlpool Range Oven Light Socket
64396923 Whirlpool Broil Pan Set Gray Porcelain
7Rack, Standard (3)
8Sensor
10WP9781049 Whirlpool Light Lens
11WP3184533 Whirlpool Range Light Lens Gasket
12WPW10280189 Whirlpool Element
13Fan Assembly
14Baffle, Convection
15Rack, Roasting
16Screw
17340184 Whirlpool Screw
18WP4159387 Whirlpool Compactor Screw
19Screw (4) 10 x 1/2
