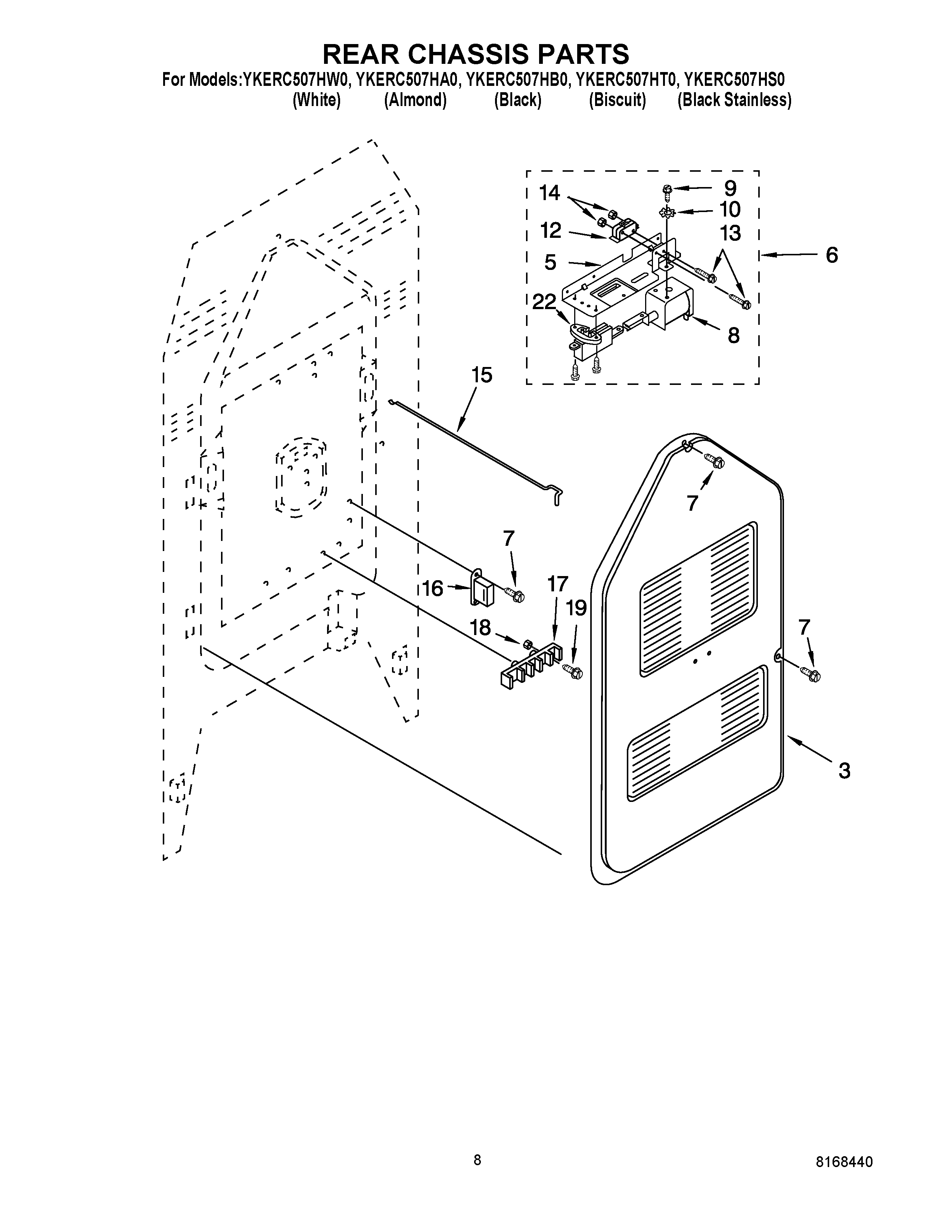

YKERC507HA0 07 – REAR CHASSIS PARTS

Products

Position	Product
3	Panel, Rear
5	Bracket, Lock
6	Oven Lock Assembly (Includes No.21)
7	WP4159387 Whirlpool Compactor Screw
8	Solenoid
9	Screw (2) 10-32 x 5/16
10	Washer (2)
12	Switch, Interlock
13	Screw, (2)
14	Nut (2)
15	Rod, Lock
16	Ballast, Lamp
17	WP8203546 Whirlpool Terminal Block
18	WP112432 Whirlpool Nut Assembly
19	Screw, (2) 10-16 x 1
22	Single Position Device (Not Serviced)
