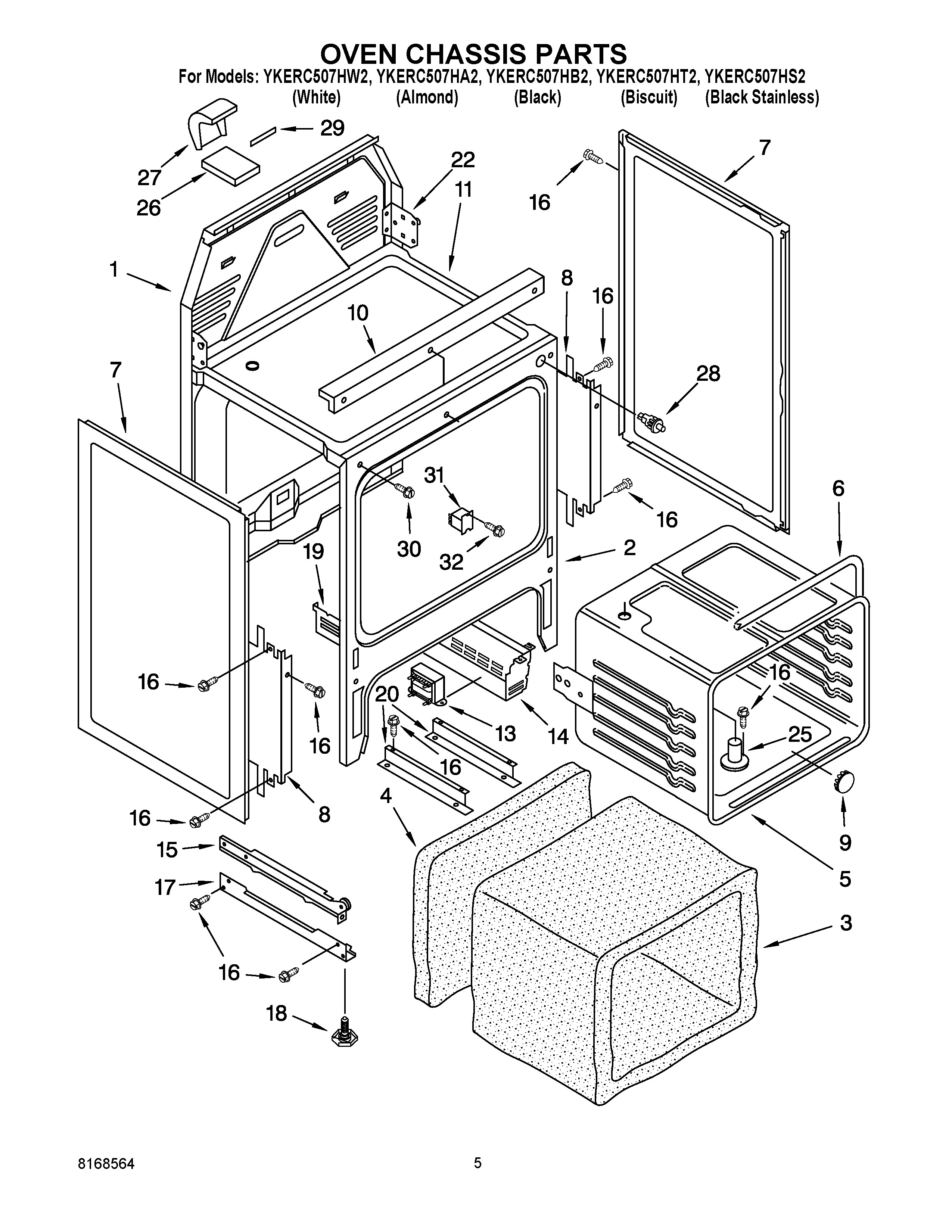

YKERC507HA2 05 – OVEN CHASSIS PARTS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7A	Oven, Side L or R (Almond)
7	Body, Side (White)
7C	Body, Side (Biscuit)
7B	Body, Side (Black)
8	Shield, Insulation
9	Button, Plug
10	Guard, Wire
11	Burner Box
13	Transformer, Control
14	Support, Fan
15	Drawer Rail, Left
15A	Rail, Drawer (Right)
16	WP4159387 Whirlpool Compactor Screw
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Base L or R
20	Support Rail
22	Hinge, Cktp.-Left
22A	Hinge, Cktp.-Right
25	Vent Tube
26	Cover, Vent
27	Back, Vent
28	Switch, Door
29	Vent Gasket
30	Screw, (2)
31	Relay
32	Screw
