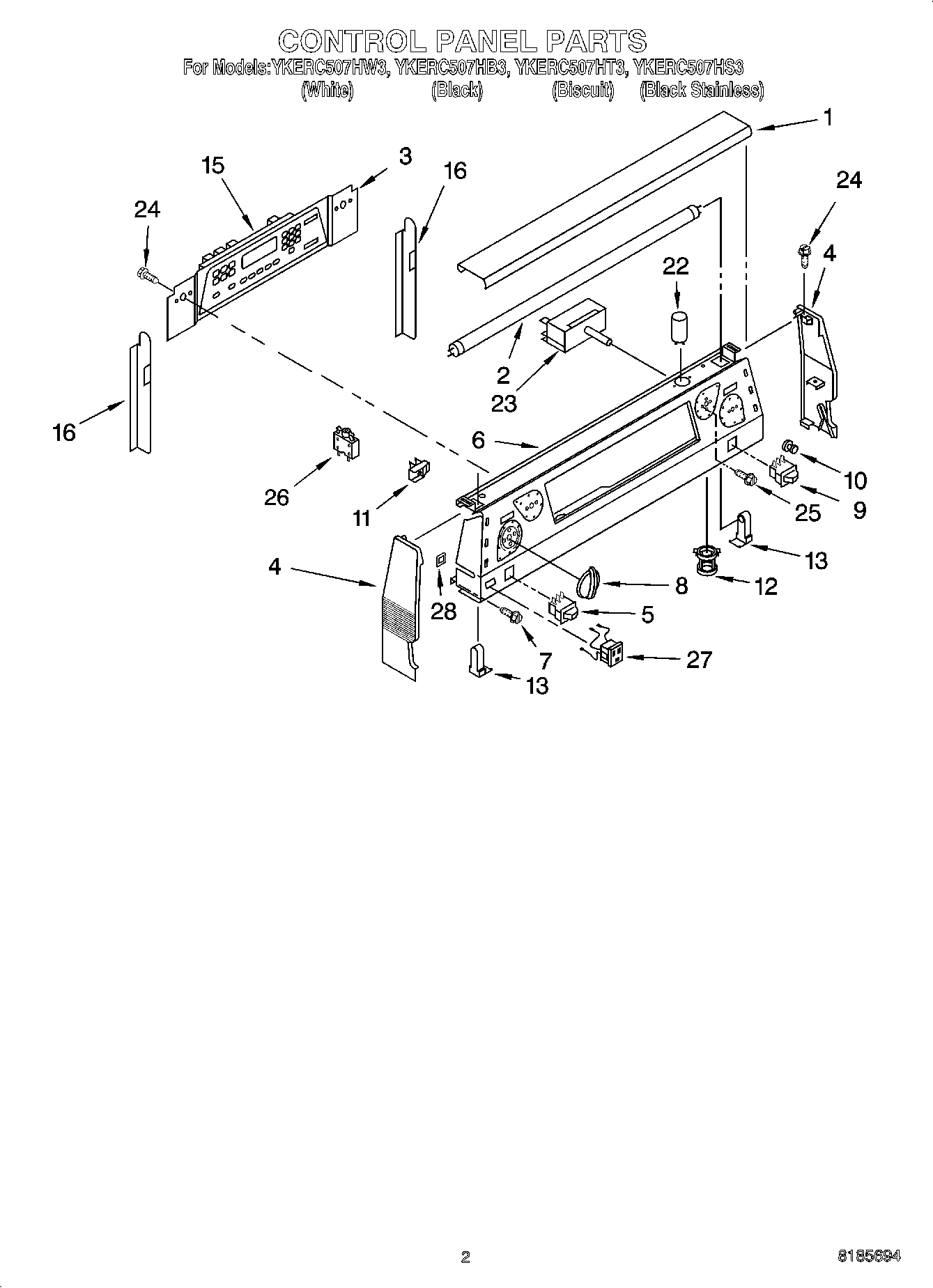

YKERC507HB3 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Insulation, Control Panel
1	Lamp Cover (White)
1	Lamp Cover (Black)
1	Lamp Cover (Biscuit)
2	WP95292 Whirlpool Fluorescent Light Bulb
4	End Cap (Right Hand) (Black)
4	End Cap (Left Hand) (Black)
4	End Cap R.H. (Biscuit)
4	End Cap L.H. (Biscuit)
4	End Cap (Left Hand) (White)
4	End Cap (Right Hand) (White)
5	Switch, Warm Zone (Biscuit)
5	Switch, Rocker (Warm Zone) (Black)
5	Switch, Warm Zone (White)
6	PANEL, CONTROL (BISCUIT)
6	PANEL, CONTROL (BLACK)
6	PANEL, CONTROL (BLACK STAINLESS)
6	PANEL, CONTROL (WHITE)
7	Panel, Control (Screw, (2) 8 x 3/8)
8	WP9750372FC Whirlpool Knob
8	WP9750372FF Whirlpool Knob
8	WP9750372FW Whirlpool Knob Assembly
9	WPW10163899 Whirlpool Switch
9	Switch, Simmer (White)
10	WP9750343 Whirlpool Light Lens
11	Light, Indicator
12	Starter, Holder
13	Receptacle, Light
15	Oven Control Assembly (Biscuit)
15	Oven Control Assembly (Black)
15	Oven Control Assembly (White)
16	Brace, Control Pnl
22	Starter, Light
23	WP9750638 Whirlpool Infinite Switch
23	8203538 Whirlpool Oven Infinite Switch
23	Insulation, Cntrl
23	WP9750639 Whirlpool Infinite Switch
24	WP4159387 Whirlpool Compactor Screw
25	WP3400882 Whirlpool Screw
26	Breaker, 15 Amp
27	Outlet, Untimed (2)
27	Outlet, Untimed
27	Outlet, Untimed
28	WPL 9751046
