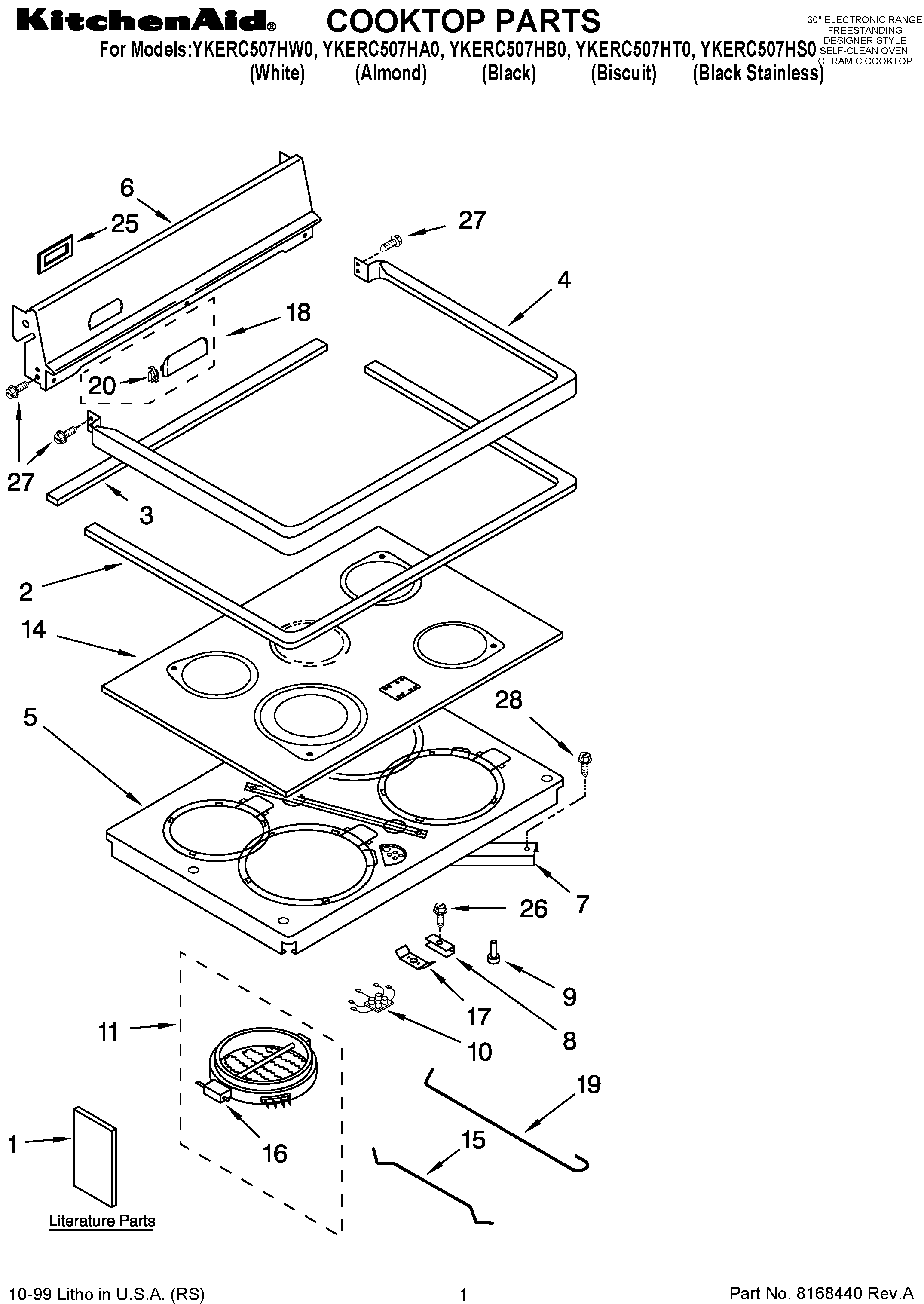

YKERC507HS0 02 – COOKTOP PARTS

Products

Position	Product
1D	Safer Cooking Tips
1F	Literature Parts (Tech Sheet)
1	Literature Parts (Use & Care Guide)
1I	SMART & EASY GUIDE (FRENCH)
1B	WPL LIT9780959
1E	Literature Parts (Installation Instructions)
1A	USE & CARE GUIDE (FRENCH)
1H	SMART & EASY GUIDE (ENGLISH)
1C	USE & CARE GUIDE, WIRING DIAGRAM
1G	WPL LIT9752776
2	WP9780939 Whirlpool Cooktop Gasket
3	Rear Gasket
4	Frame, Cooktop (White)
4B	Frame, Cooktop (Black)
4C	Frame, Cooktop (Biscuit)
4A	Frame, Cooktop (Almond)
5	Support, Element
6A	Back Splash (Almond)
6	Back Splash (White)
6C	Back Splash (Biscuit)
6B	Back Splash (Black)
7	Brace, Support
8	Support Clips (4)
9	238614 Whirlpool Bumper Hinge
10	Hot Light
11C	W10823698 Whirlpool Surface Element Right Rear
11A	W10823692 Whirlpool Dual Radiant Element
11	W10823699 Whirlpool Right Front Surface Element
11B	Element, Surface (Warm Zone)
14A	Cooktop, Ceran (Almond)
14	Cooktop, Ceran (White)
14B	Cooktop, Ceran (Black)
15	Rod, Small Ceran Element
16A	Limiter, Temp. (LF)
16	Limiter, Temp. (LR-RF-RR)
16B	Limiter, Temp (Warm Zone)
17	WP9781235 Whirlpool Clip
18C	Cover, Vent (Biscuit)
18B	Cover, Vent (Black)
18A	Cover, Vent (Almond)
18	Cover, Vent (White)
19	Rod, Large Ceran Element
20	Clip, Vent Cover
25	Vent Gasket
26	Screw, (4) 10PH-B x 3/4
27	Back Splash (Screw (4) 10AB x 1/2“)
28A	Spring, Warm Zone Element
28	Screw (4) 10 x 1/2
