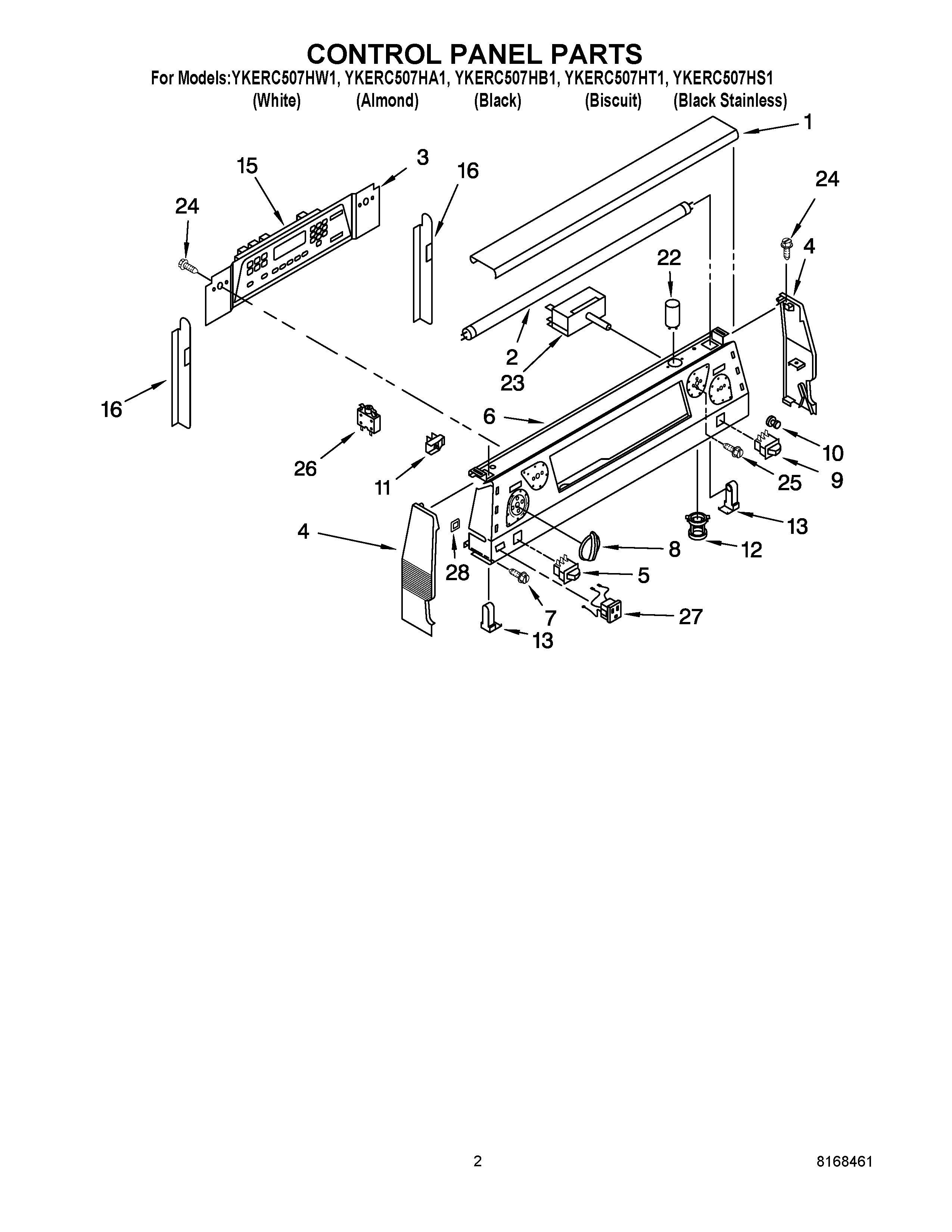

YKERC507HS1 03 – CONTROL PANEL PARTS

Products

Position	Product
1D	Insulation, Control Panel
1	Lamp Cover (White)
1B	Lamp Cover (Black)
1C	Lamp Cover (Biscuit)
1A	Lamp Cover (Almond)
2	WP95292 Whirlpool Fluorescent Light Bulb
4F	End Cap (Left Hand) (Black)
4A	End Cap (Right Hand) (Almond)
4G	End Cap L.H. (Biscuit)
4	End Cap (Right Hand) (White)
4B	End Cap (Right Hand) (Black)
4D	End Cap (Left Hand) (White)
4C	End Cap R.H. (Biscuit)
4E	End Cap (Left Hand) (Almond)
5B	Switch, Rocker (Warm Zone) (Black)
5C	Switch, Warm Zone (Biscuit)
5A	Switch, Rocker (Warm Zone) (Almond)
5	Switch, Warm Zone (White)
6	PANEL, CONTROL (WHITE)
6A	PANEL, CONTROL (ALMOND)
6B	PANEL, CONTROL (BLACK)
6C	PANEL, CONTROL (BISCUIT)
6D	PANEL, CONTROL (BLACK STAINLESS)
7	Panel, Control (Screw, (2) 8 x 3/8)
8A	WP9750372FF Whirlpool Knob
8	WP9750372FW Whirlpool Knob Assembly
8B	Knobs, Control (4) (Almond)
8C	WP9750372FC Whirlpool Knob
9	Switch, Simmer (White)
9B	WPW10163899 Whirlpool Switch
10	WP9750343 Whirlpool Light Lens
11	Light, Indicator
12	Starter, Holder
13	Receptacle, Light
15C	Oven Control Assembly (Biscuit)
15A	Oven Control Assembly (Almond)
15B	Oven Control Assembly (Black)
15	Oven Control Assembly (White)
16	Brace, Control Pnl
22	Starter, Light
23C	Insulation, Cntrl
23	WP9750638 Whirlpool Infinite Switch
23A	WP9750639 Whirlpool Infinite Switch
23B	8203538 Whirlpool Oven Infinite Switch
24	WP4159387 Whirlpool Compactor Screw
25	WP3400882 Whirlpool Screw
26	Breaker, 15 Amp
27C	Outlet, Untimed (2)
27	Outlet, Untimed
27A	Outlet, Untimed
27B	WPL 9751480FT
28	WPL 9751046
