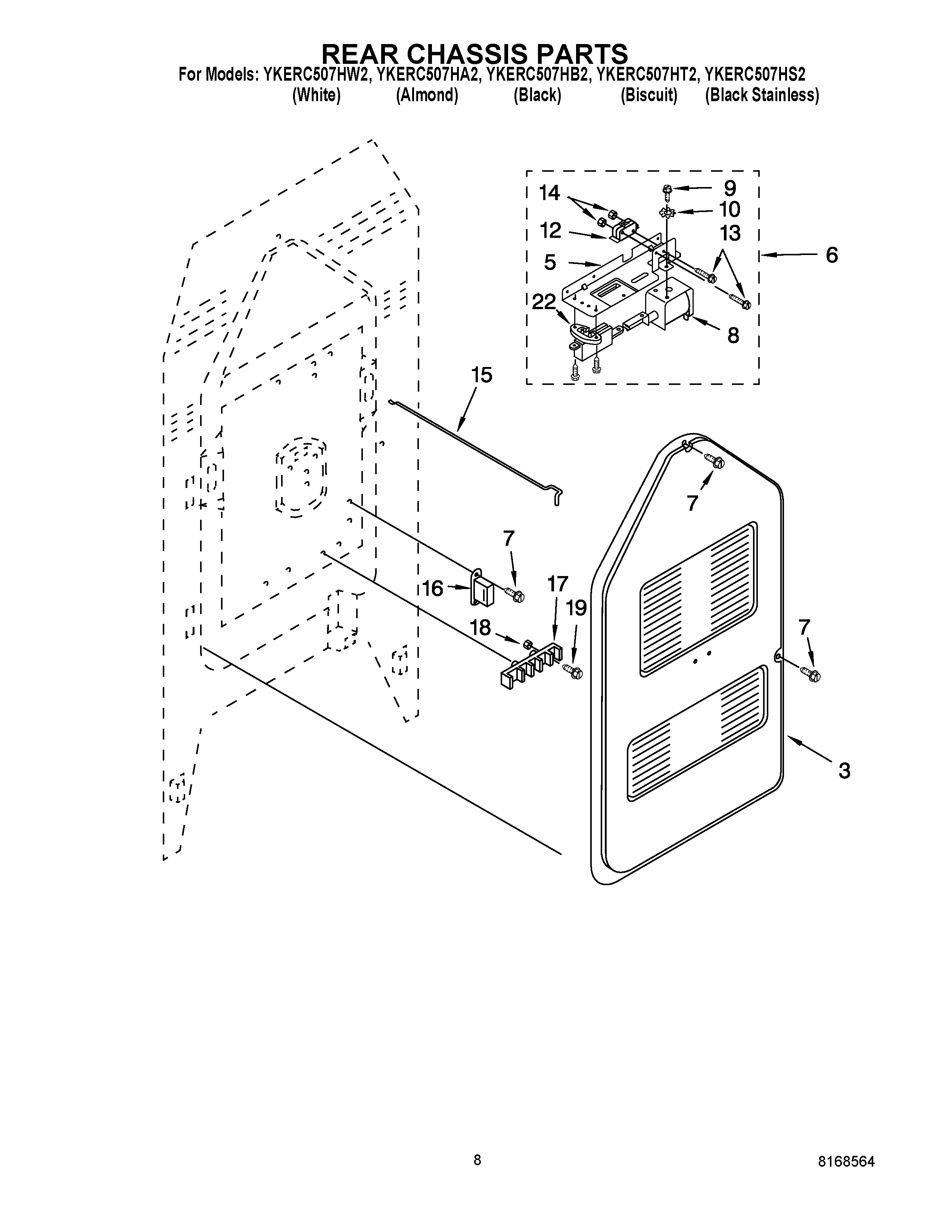

YKERC507HS2 07 – REAR CHASSIS PARTSadmin2025-04-26T11:07:40+00:00YKERC507HS2 07 – REAR CHASSIS PARTS ProductsPositionProduct3Panel, Rear5Bracket, Lock6Oven Lock Assembly (Includes No.21)7WP4159387 Whirlpool Compactor Screw8Solenoid9Screw (2) 10-32 x 5/1610Washer (2)12Switch, Interlock13Screw, (2)14Nut (2)15Rod, Lock16Ballast, Lamp17WP8203546 Whirlpool Terminal Block18WP112432 Whirlpool Nut Assembly19Screw, (2) 10-16 x 122Single Position Device (Not Serviced)
