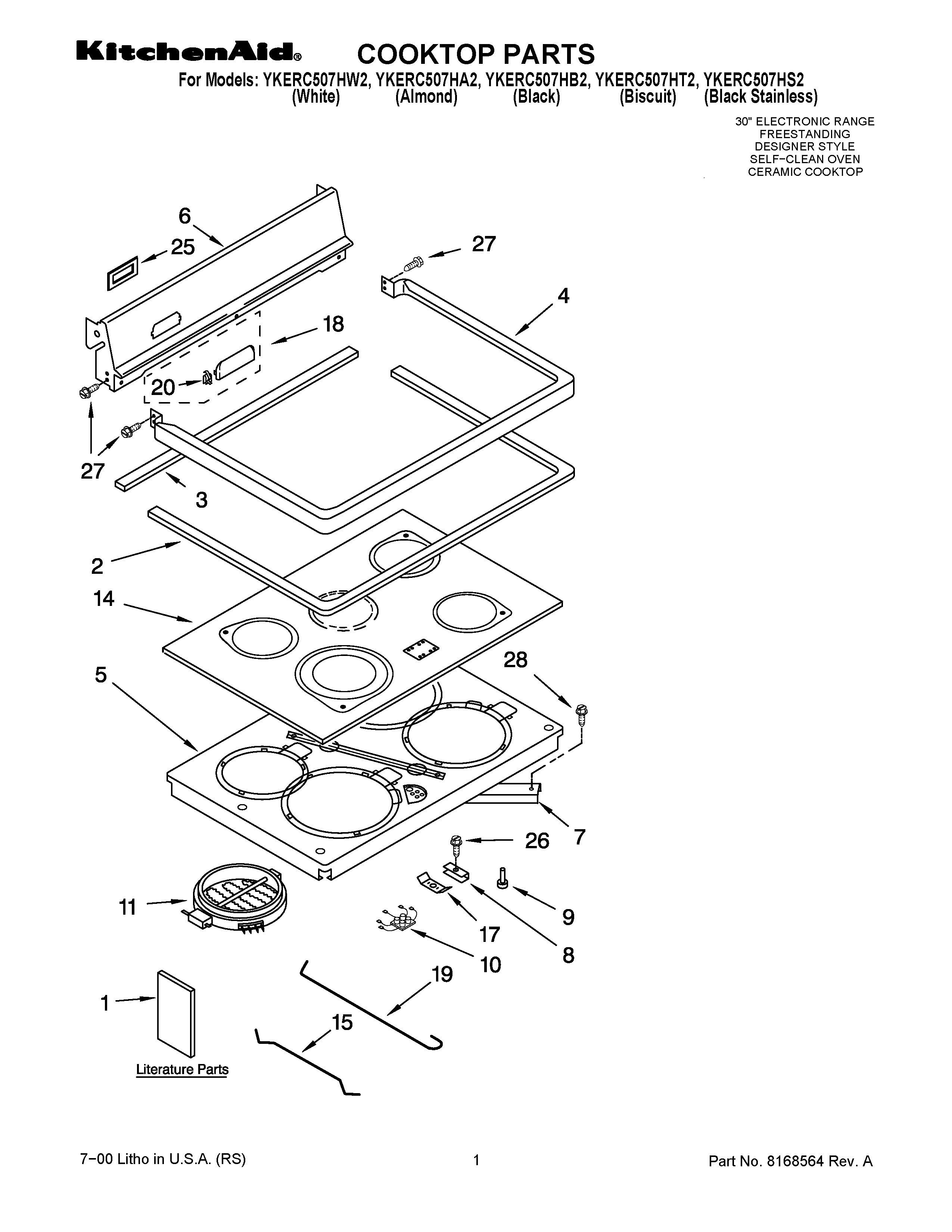

YKERC507HT2 02 – COOKTOP PARTSadmin2025-04-26T11:09:33+00:00YKERC507HT2 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1D | Safer Cooking Tips |
| 1F | Literature Parts (Tech Sheet) |
| 1 | Literature Parts (Use & Care Guide) |
| 1H | Literature Parts (Smart & Easy Guide) |
| 1B | WPL LIT9780959 |
| 1E | Literature Parts (Installation Instructions) |
| 1A | USE & CARE GUIDE (FRENCH) |
| 1I | SMART & EASY GUIDE (FRENCH) |
| 1C | USE & CARE GUIDE, WIRING DIAGRAM |
| 1G | WPL LIT9752776 |
| 2 | WP9780939 Whirlpool Cooktop Gasket |
| 3 | Rear Gasket |
| 4A | Frame, Cooktop (Almond) |
| 4 | Frame, Cooktop (White) |
| 4C | Frame, Cooktop (Biscuit) |
| 4B | Frame, Cooktop (Black) |
| 5 | Support, Element |
| 6 | Back Splash (White) |
| 6C | Back Splash (Biscuit) |
| 6B | Back Splash (Black) |
| 6A | Back Splash (Almond) |
| 7 | Brace, Support |
| 8 | Support Clips (4) |
| 9 | 238614 Whirlpool Bumper Hinge |
| 10 | Hot Light |
| 11C | W10823698 Whirlpool Surface Element Right Rear |
| 11A | W10823692 Whirlpool Dual Radiant Element |
| 11 | W10823699 Whirlpool Right Front Surface Element |
| 11B | WP8523700 Whirlpool Surface Element |
| 14C | COOKTOP, CERAN (DESIGNER WHITE) |
| 14B | Cooktop, Ceran (Black) |
| 14 | Cooktop, Ceran (White) |
| 14A | Cooktop, Ceran (Almond) |
| 15 | Rod, Small Ceran Element |
| 17 | WP9781235 Whirlpool Clip |
| 18B | Cover, Vent (Black) |
| 18A | Cover, Vent (Almond) |
| 18 | Cover, Vent (White) |
| 18C | Cover, Vent (Biscuit) |
| 19 | Rod, Large Ceran Element |
| 20 | Clip, Vent Cover |
| 25 | Vent Gasket |
| 26 | Screw, (4) 10PH-B x 3/4 |
| 27 | Back Splash (Screw (4) 10AB x 1/2``) |
| 28A | Spring, Warm Zone Element |
| 28 | Screw (4) 10 x 1/2 |
