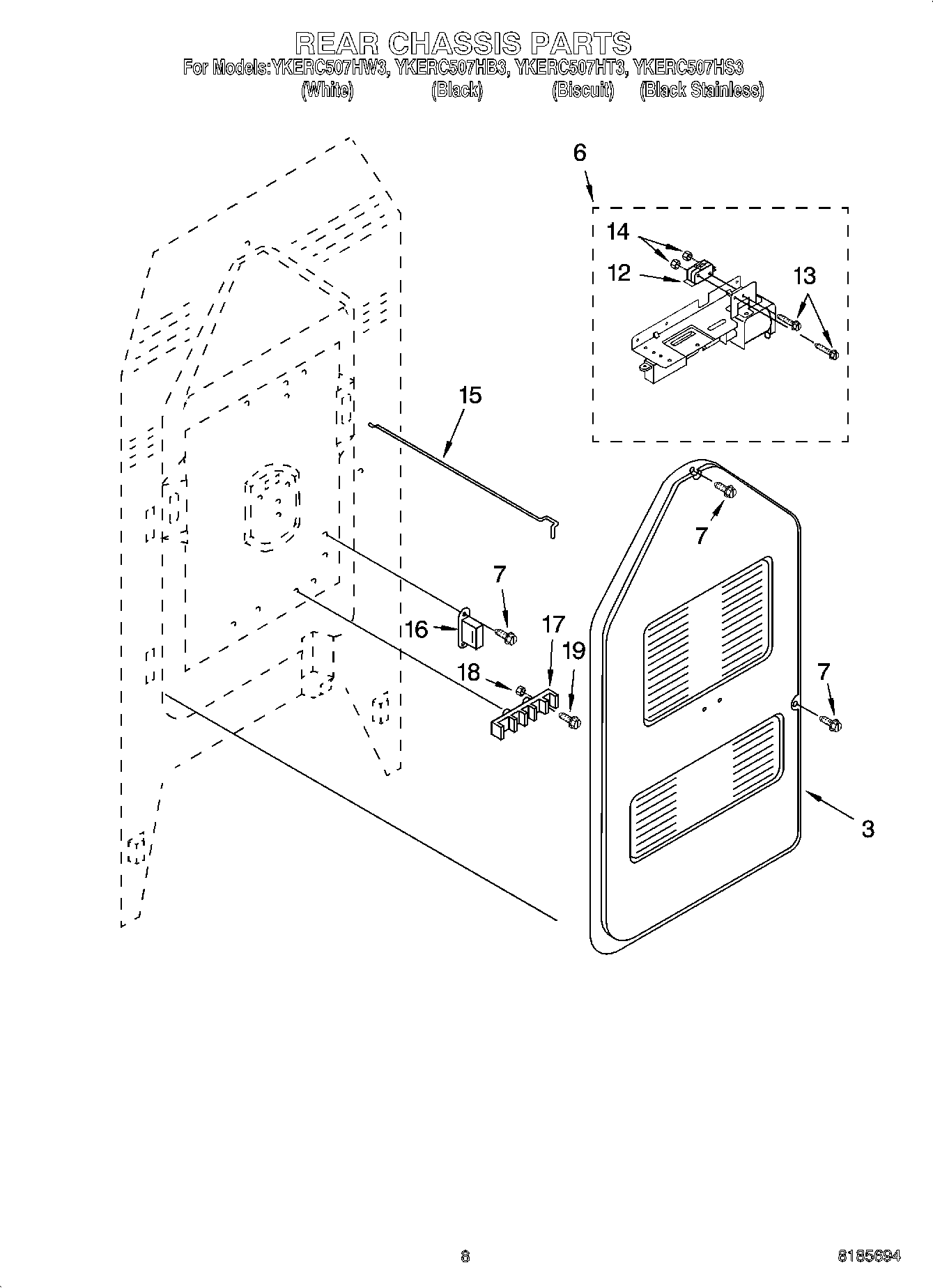

YKERC507HT3 06 – REAR CHASSIS PARTS

Written by

Products

Position	Product
3	Panel, Rear
6	Oven Lock Assembly
7	WP4159387 Whirlpool Compactor Screw
12	Switch, Interlock
13	Screw, (2)
14	Nut (2)
15	Rod, Lock
16	Ballast, Lamp
17	WP8203546 Whirlpool Terminal Block
18	WP112432 Whirlpool Nut Assembly
19	Screw, (2) 10-16 x 1
