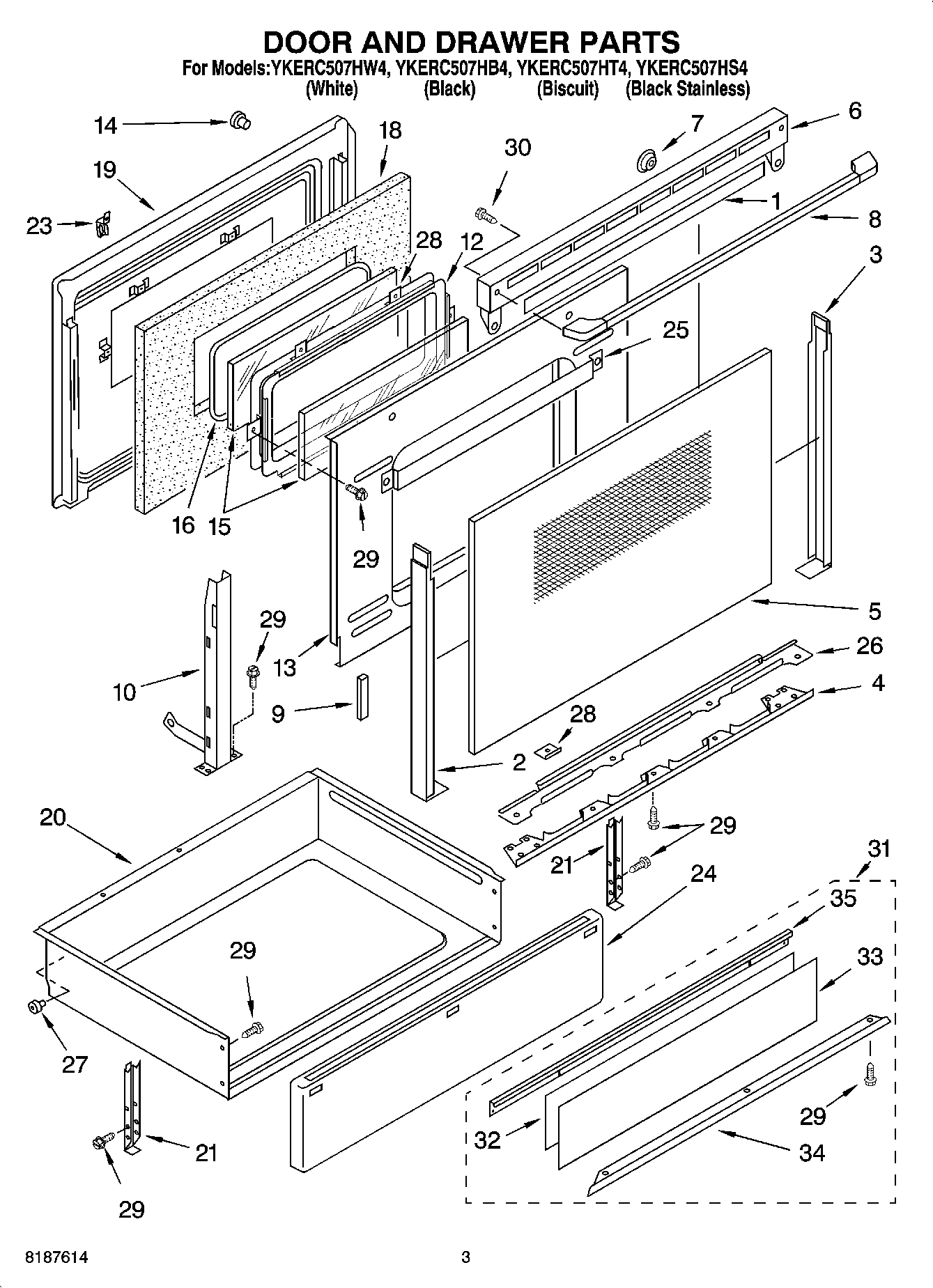

YKERC507HT4 03 – DOOR AND DRAWER PARTS

Products

Position	Product
1	Vent, Door (Gasket, Vent)
2	Trim, Door-Left (White)
2	Trim, Door-Left (Biscuit)
2	Trim, Door-Left (Black)
3	Trim, Door-Right (White)
3	Trim, Door-Right (Biscuit)
3	Trim, Door-Right (Black)
4	Trim, Door Bottom (Black)
4	Trim, Door Bottom (Biscuit)
4	Trim, Door Bottom (White)
5	Glass, Door (Black)
5	Glass, Door Front (Biscuit)
5	Glass, Door Front (White)
5	Glass, Door (Black Stainless)
6	Vent, Door (Black)
6	Vent, Door (Biscuit)
6	Vent, Door (White)
8	Handle, Door (White)
8	Handle, Door (Biscuit)
8	Handle, Door (Black)
9	Gasket, Door Glass
10	WP9782033 Whirlpool Door Hinge
12	Frame, Window
13	Shield, Door
14	238614 Whirlpool Bumper Hinge
15	WP9781593 Whirlpool Door Glass
16	WP9755177 Whirlpool Wind Gasket
18	Insulation, Door
19	Liner, Door
20	Drawer & Roller
21	Bracket, Drawer
23	Retainer, Glass
24	Front, Drawer (Black Stainless)
24	Front, Drawer (White)
24	Front, Drawer (Black)
24	WP90296 Whirlpool Clip
24	Front, Drawer (Biscuit)
25	Channel, Heat
26	Deflector, Steam
27	814229 Whirlpool Primary Roller
28	Spacer, Door (8)
29	WP4159387 Whirlpool Compactor Screw
30	WPW10001180 Whirlpool Refrigerator Screw
31	Black Stainless Only
32	WPL 9753329
33	Panel, Drawer
34	WPL 9750613PB
35	WPL 9750614PB
