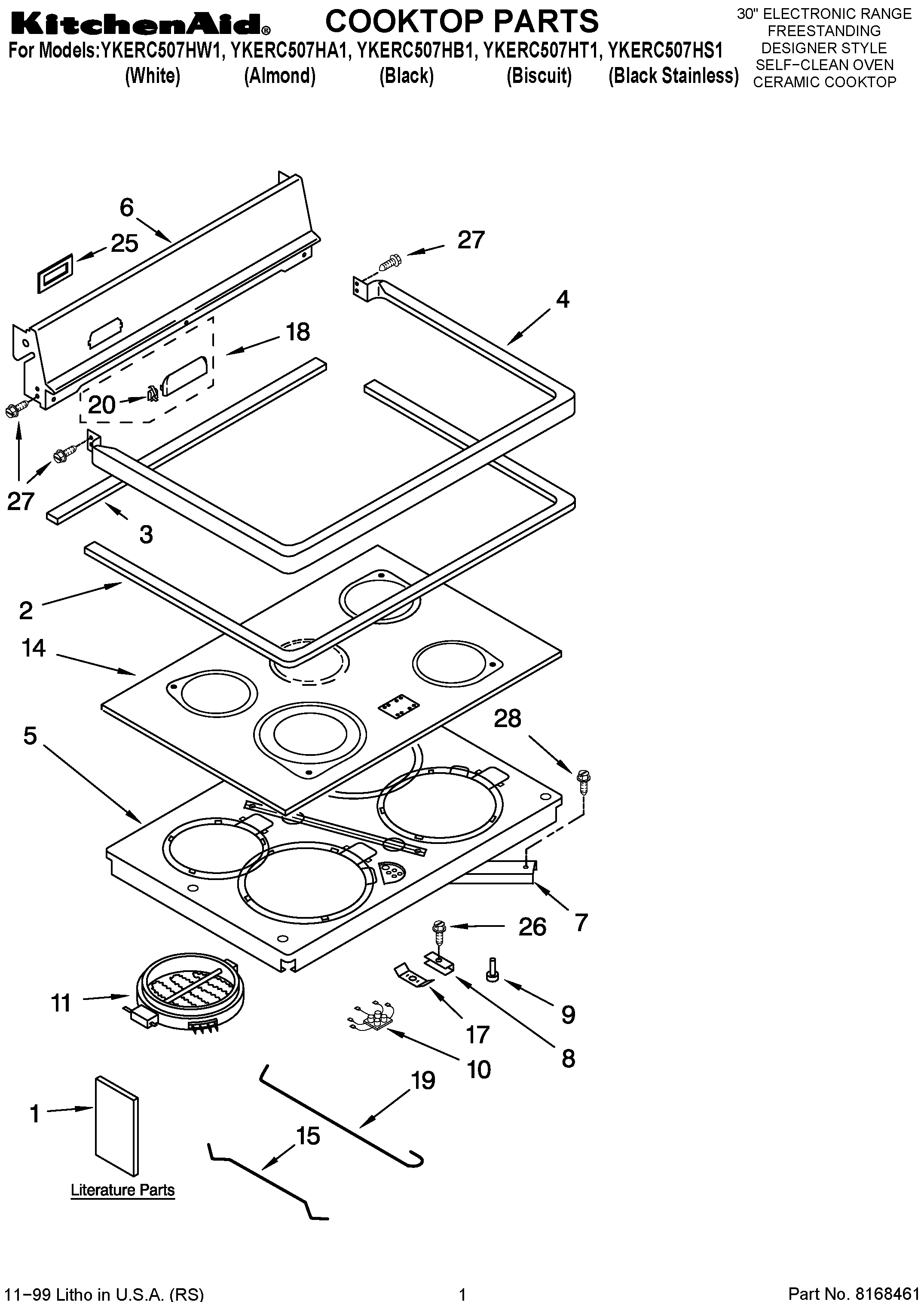

YKERC507HW1 02 – COOKTOP PARTS

Products

Position	Product
1D	Safer Cooking Tips
1F	Literature Parts (Tech Sheet)
1I	SMART & EASY GUIDE (FRENCH)
1E	Literature Parts (Installation Instructions)
1B	WPL LIT9780959
1G	WPL LIT9752776
1A	USE & CARE GUIDE (FRENCH)
1C	USE & CARE GUIDE, WIRING DIAGRAM
1H	SMART & EASY GUIDE (ENGLISH)
1	Literature Parts (Use & Care Guide)
2	WP9780939 Whirlpool Cooktop Gasket
3	Rear Gasket
4B	Frame, Cooktop (Black)
4	Frame, Cooktop (White)
4A	Frame, Cooktop (Almond)
4C	Frame, Cooktop (Biscuit)
5	Support, Element
6B	Back Splash (Black)
6C	Back Splash (Biscuit)
6	Back Splash (White)
6A	Back Splash (Almond)
7	Brace, Support
8	Support Clips (4)
9	238614 Whirlpool Bumper Hinge
10	Hot Light
11B	WP8523700 Whirlpool Surface Element
11C	W10823698 Whirlpool Surface Element Right Rear
11	W10823699 Whirlpool Right Front Surface Element
11A	W10823692 Whirlpool Dual Radiant Element
14A	Cooktop, Ceran (Almond)
14	Cooktop, Ceran (White)
14B	Cooktop, Ceran (Black)
15	Rod, Small Ceran Element
17	WP9781235 Whirlpool Clip
18A	Cover, Vent (Almond)
18	Cover, Vent (White)
18C	Cover, Vent (Biscuit)
18B	Cover, Vent (Black)
19	Rod, Large Ceran Element
20	Clip, Vent Cover
25	Vent Gasket
26	Screw, (4) 10PH-B x 3/4
27	Back Splash (Screw (4) 10AB x 1/2“)
28A	Spring, Warm Zone Element
28	Screw (4) 10 x 1/2
