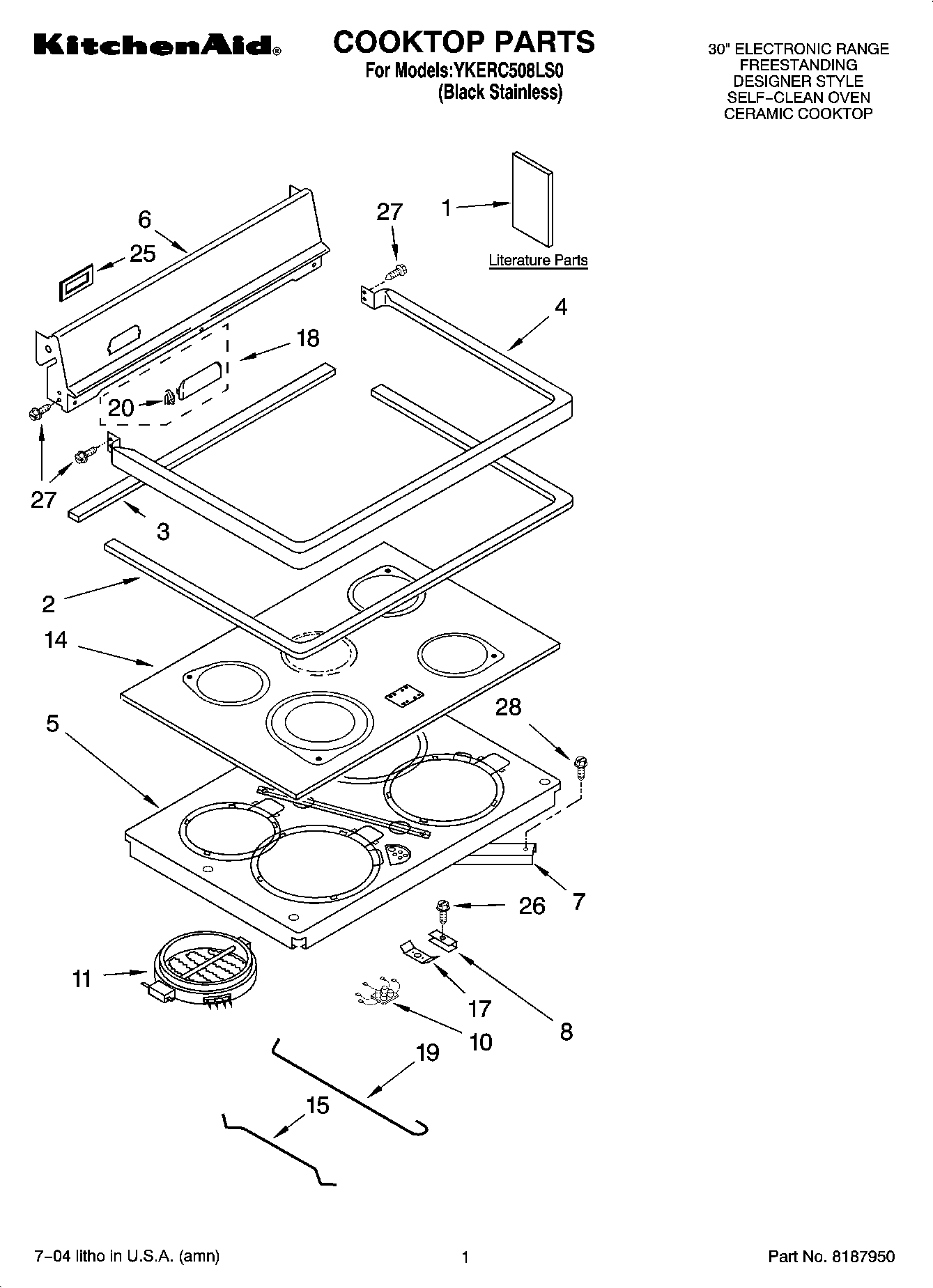

YKERC508LS0 01 – COOKTOP PARTS

Products

PositionProduct
1LITERATURE PARTS
1Literature Parts (Wiring Diagram)
1USE & CARE GUIDE (FRENCH)
1Literature Parts (Easy Set Guide (French))
1Literature Parts (Template, Anti-Tip)
1Literature Parts (Installation Instructions)
1Literature Parts (Easy Set Guide)
1Literature Parts (Use & Care Guide)
2WP9780939 Whirlpool Cooktop Gasket
3Rear Gasket
4Frame, Cooktop (Black)
5Support, Element
6Back Splash (Black)
7Brace, Support
8Support Clips (4)
10Hot Light
11W10823698 Whirlpool Surface Element Right Rear
11W10823692 Whirlpool Dual Radiant Element
11W10823699 Whirlpool Right Front Surface Element
11WP8523700 Whirlpool Surface Element
14Cooktop, Ceran (Black)
15Rod, Small Ceran Element
17WP9781235 Whirlpool Clip
18Cover, Vent (Black)
19Rod, Large Ceran Element
20Clip, Vent Cover
25Vent Gasket
26Screw, (4) 10PH-B x 3/4
27Back Splash (Screw (4) 10AB x 1/2“)
28Spring, Warm Zone Element
28Screw (4) 10 x 1/2
