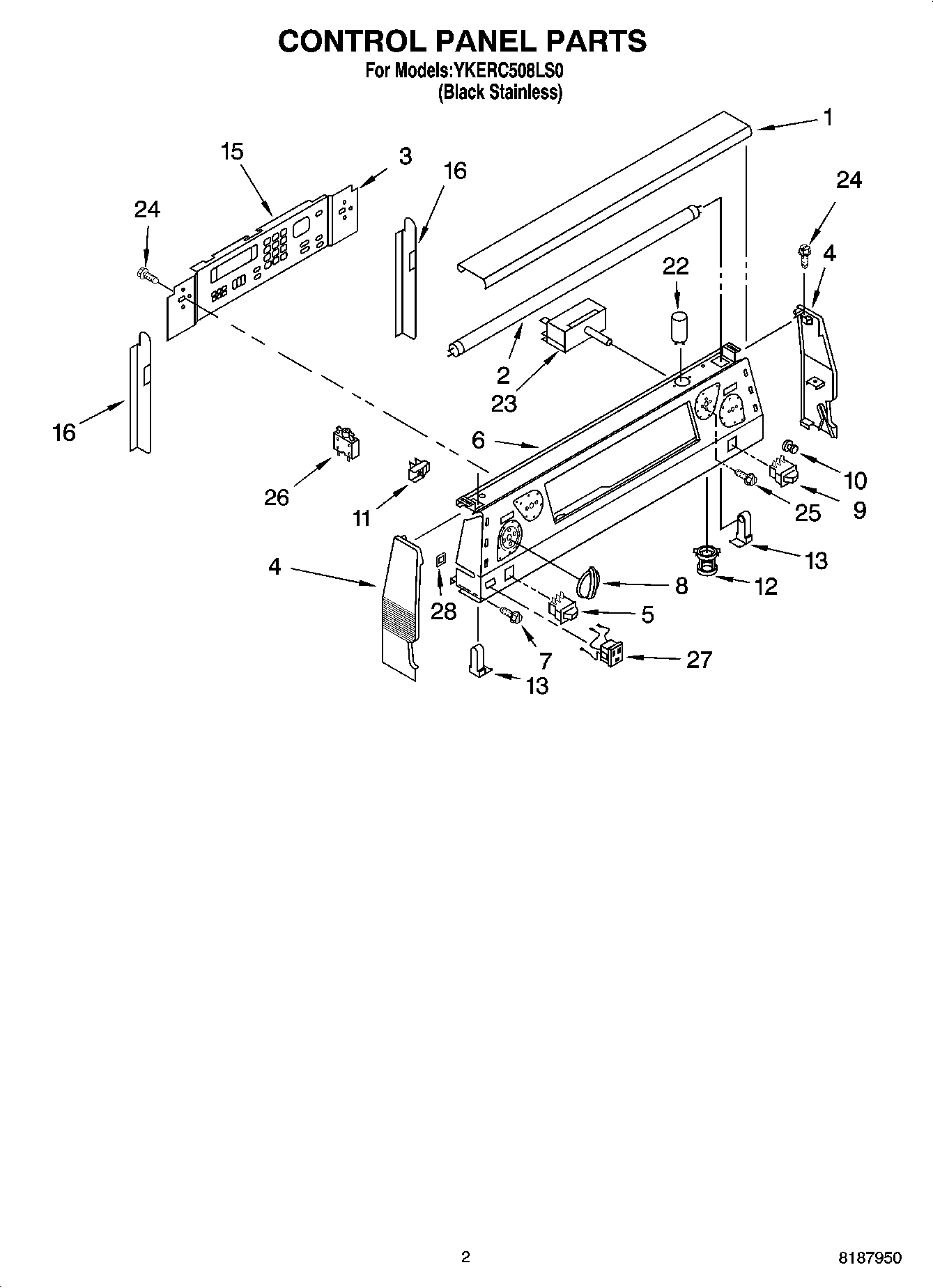

YKERC508LS0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Lamp Cover (Black)
1Insulation, Control Panel
2WP95292 Whirlpool Fluorescent Light Bulb
4End Cap (Left Hand) (Black)
4End Cap (Right Hand) (Black)
5Switch, Rocker (Warm Zone) (Black)
6Panel, Control (Black Stainless)
7Panel, Control (Screw, (2) 8 x 3/8)
8WP9750372FF Whirlpool Knob
9WPW10163899 Whirlpool Switch
10WP9750343 Whirlpool Light Lens
11Light, Indicator
12Starter, Holder
13Receptacle, Light
15Oven Control Assembly (Black)
16Brace, Control Pnl
22Starter, Light
23WP9750639 Whirlpool Infinite Switch
23WP9750638 Whirlpool Infinite Switch
23WP9755173 Whirlpool Infinite Switch
23Insulation, Cntrl
24WP4159387 Whirlpool Compactor Screw
25WP3400882 Whirlpool Screw
26Breaker, 15 Amp
27Outlet, Untimed
28WPL 9751046
