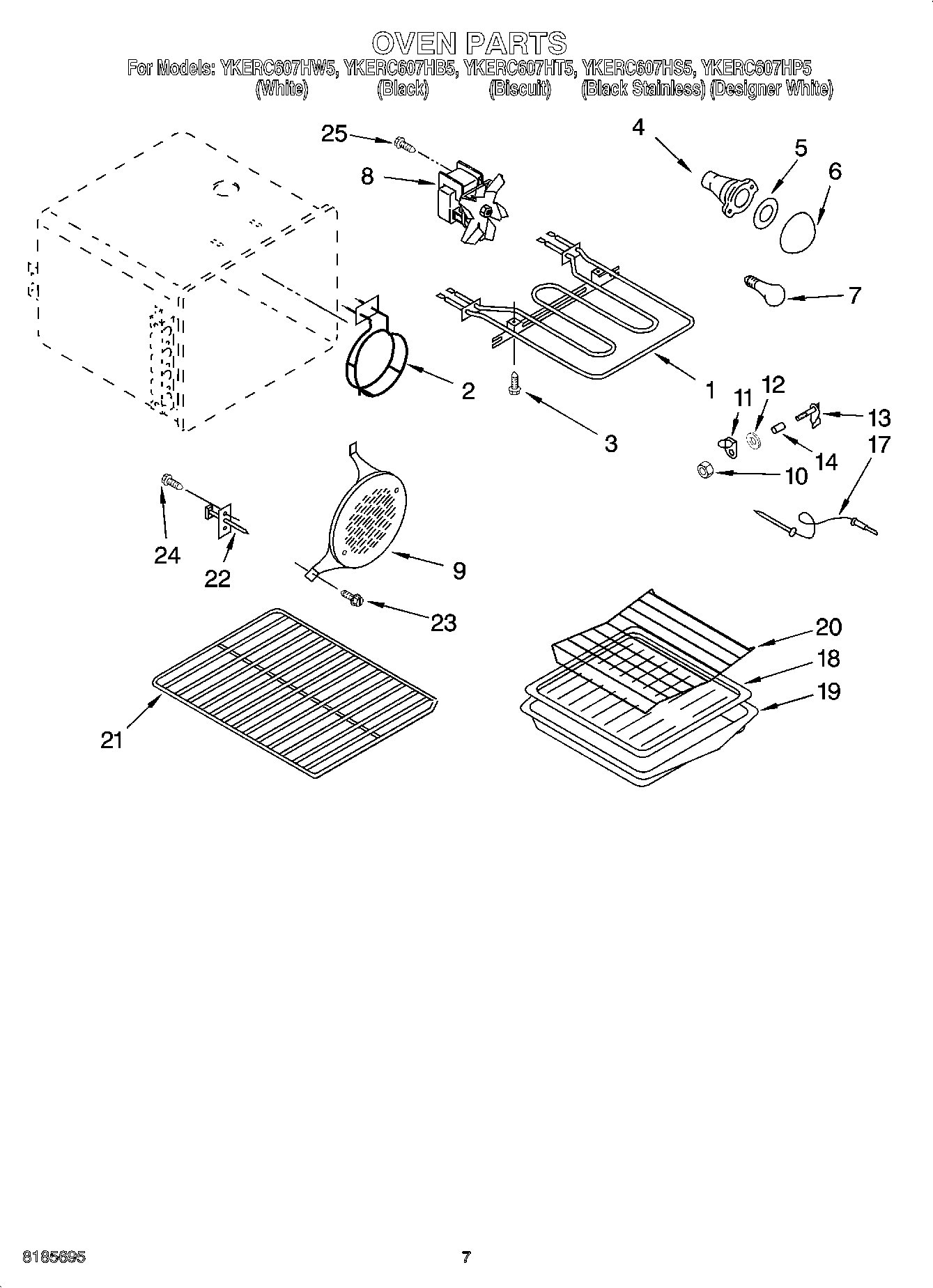

YKERC607HB5 04 – OVEN PARTS

Products

Position	Product
1	Element, Broil
2	WPW10280189 Whirlpool Element
3	340184 Whirlpool Screw
4	W11594027 Whirlpool Range Oven Light Socket
5	WP3184533 Whirlpool Range Light Lens Gasket
6	WP9781049 Whirlpool Light Lens
7	RANGE ONLY 40W 120V APPL BULB
8	Fan Assembly
9	Baffle, Convection
10	Lock-Nut, Cvr.Jack
11	Jack Cover
12	Gasket
13	Receptacle, Probe
14	Spacer - Tubing
17	Probe
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Rack, Roasting
21	Rack, Standard (3)
22	Sensor
23	Screw
24	WP4159387 Whirlpool Compactor Screw
25	Screw (4) 10 x 1/2
