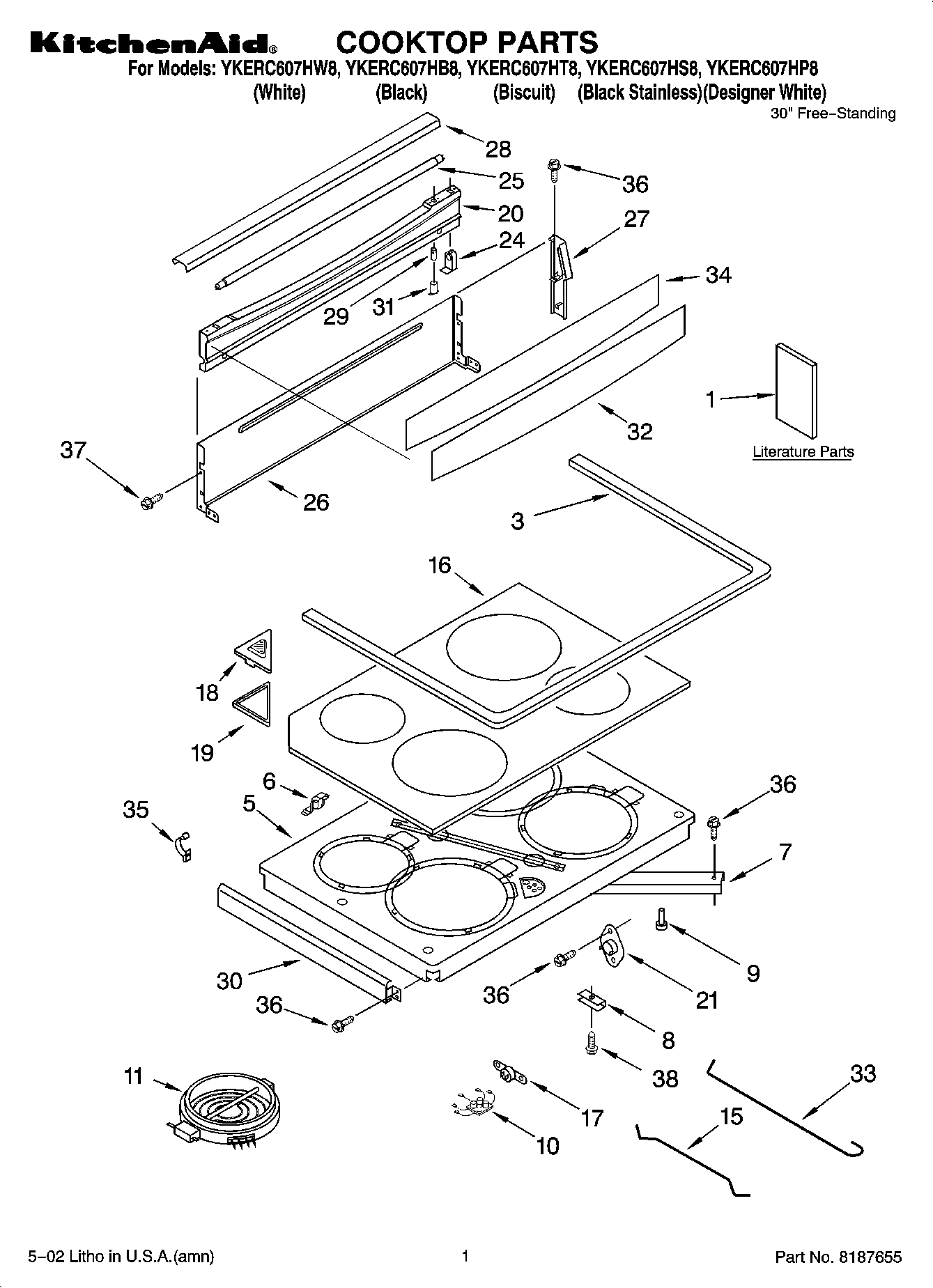

YKERC607HB8 01 – COOKTOP PARTS

YKERC607HB8 01 – COOKTOP PARTS

Written by

in

YKERC607HB8 01 – COOKTOP PARTS

Products

PositionProduct
1Literature Parts (Installation Instructions)
1Use & Care Guide (French)
1Literature Parts (Wiring Diagram)
1Literature Parts (Tech Sheet)
1Literature Parts (Use & Care Guide)
1WPL LIT9752775
3Rear Gasket
3WP9780939 Whirlpool Cooktop Gasket
5Support, Element
6Bracket, Pivot
6Washer, Pivot
7Brace, Support
8Support Clips (4)
9238614 Whirlpool Bumper Hinge
10Hot Light
11W10823697 Whirlpool Surface Element
11W10823698 Whirlpool Surface Element Right Rear
11W10823692 Whirlpool Dual Radiant Element
11W10823699 Whirlpool Right Front Surface Element
15Rod, Small Ceran Element
16Cooktop, Ceran (White)
16Cooktop, Ceran (Black)
16Cooktop, Ceran (Biscuit)
16Cooktop, Ceran (Designer White)
17Thermostat SPST (205)
18Cover, Vent
19Gasket, Vent Cover
20Backsplash (Biscuit)
20Backsplash (Black)
20Backsplash (White)
21WP9759944 Whirlpool Thermostat
24Receptacle, Light
25WP95292 Whirlpool Fluorescent Light Bulb
26Cover, Backsplash
27Endcap, Backsplash (Biscuit, Left)
27Endcap, Backsplash (Biscuit, Right)
27Endcap, Backsplash (White, Left)
27Endcap, Backsplash (Black, Left)
27Endcap, Backsplash (White, Right)
27Endcap, Backsplash (Black, Right)
28Cover, Light (White)
28Cover, Light (Black)
28Cover, Light (Biscuit)
29Starter, Light
30WPL 9751276PC
30WPL 9751276PB
30WPL 9751275PC
30Trim, Cooktop (Black (Right))
30Trim, Cooktop (White (Right))
30(Trim, Cooktop (Left Hand)) (White)
31Starter, Holder
32Glass, Backsplash
33Rod, Large Ceran Element
34Panel, Drawer
358528351 Whirlpool Clip
36WP4159387 Whirlpool Compactor Screw
37Screw (4) 10 x 1/2
38Screw, 10-16 x 1
