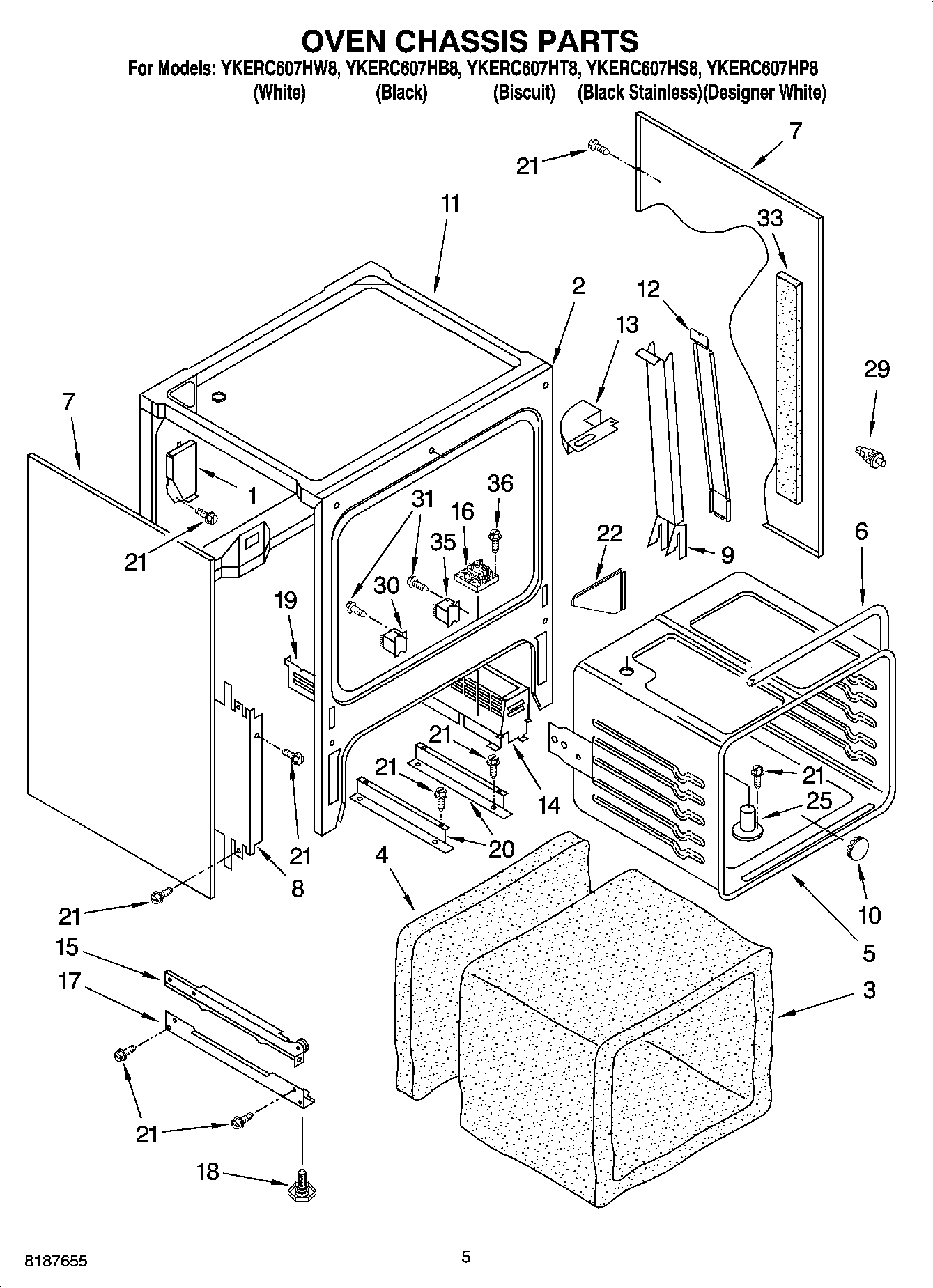

YKERC607HB8 03 – OVEN CHASSIS PARTS

Products

Position	Product
1	Vent Box, Oven
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Body, Side (Black)
7	Body, Side (Biscuit)
7	Body, Side (White)
8	Shield, Insulation
9	Duct, Side Fan
10	Button, Plug
11	Burner Box
12	Fan Duct, Cover
13	Duct, Top
14	Support, Fan
15	Rail, Drawer (Right)
15	Drawer Rail, Left
16	Motor, Fan
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Base L or R
20	Support Rail
21	WP4159387 Whirlpool Compactor Screw
22	Shield, Heat
25	Vent Tube
29	Door Switch
30	Relay, Dlb.
31	Screw
33	Insulation, Side
35	Relay
36	Screw, (3) No.8 x 1“
