YKERC607HP7 06 – CONTROL PANEL PARTS
Written by
in

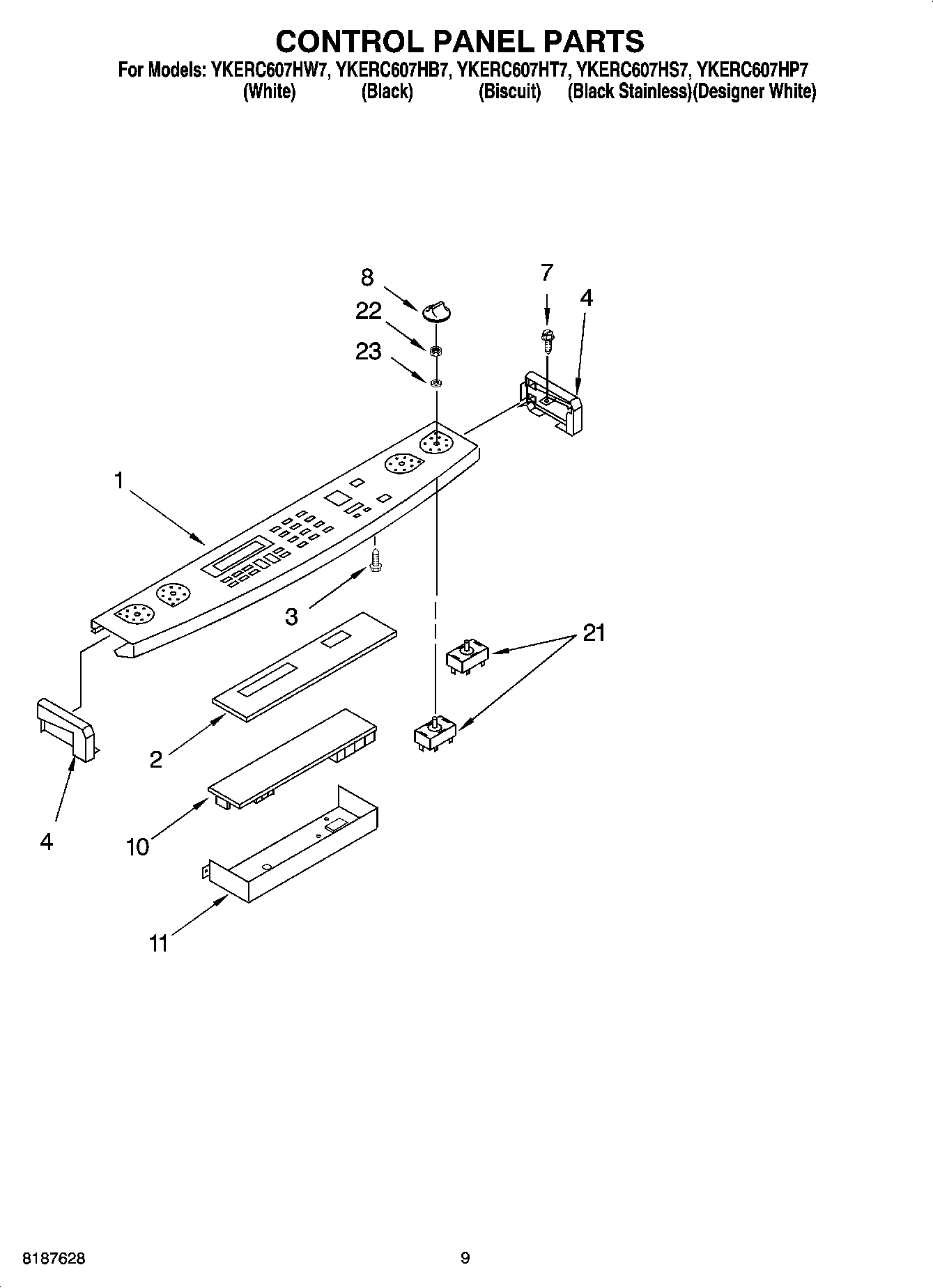

YKERC607HP7 06 – CONTROL PANEL PARTS
Products
Position
Product
1
Console, Glass (White)
1
Console, Glass (Biscuit)
1
Console, Glass (Black)
1
Console, Glass (Black Stainless)
2
Display Board Assembly
3
Screw
4
End Cap (White, Right)
4
End Cap (Black, Left)
4
End Cap (Left Hand) (White)
4
End Cap (Black, Right)
4
End Cap (Biscuit, Right)
4
End Cap (Biscuit, Left)
7
WP4159387 Whirlpool Compactor Screw
8
WP9750372FW Whirlpool Knob Assembly
8
WP9750372FF Whirlpool Knob
8
WP9750372FC Whirlpool Knob
10
Microcptr
11
Shield, Control Panel
21
Switch, Infinite (2100-2600W, LF)
21
WP9755175 Whirlpool Infinite Switch
21
Switch, Infinite (1250-1500W, LR)
21
Switch, Infinite (1700W, RF)
22
Nut, Mounting (Single Element)
23
Seal, Switch (4)
23
Console, Glass (Spacer)
←
