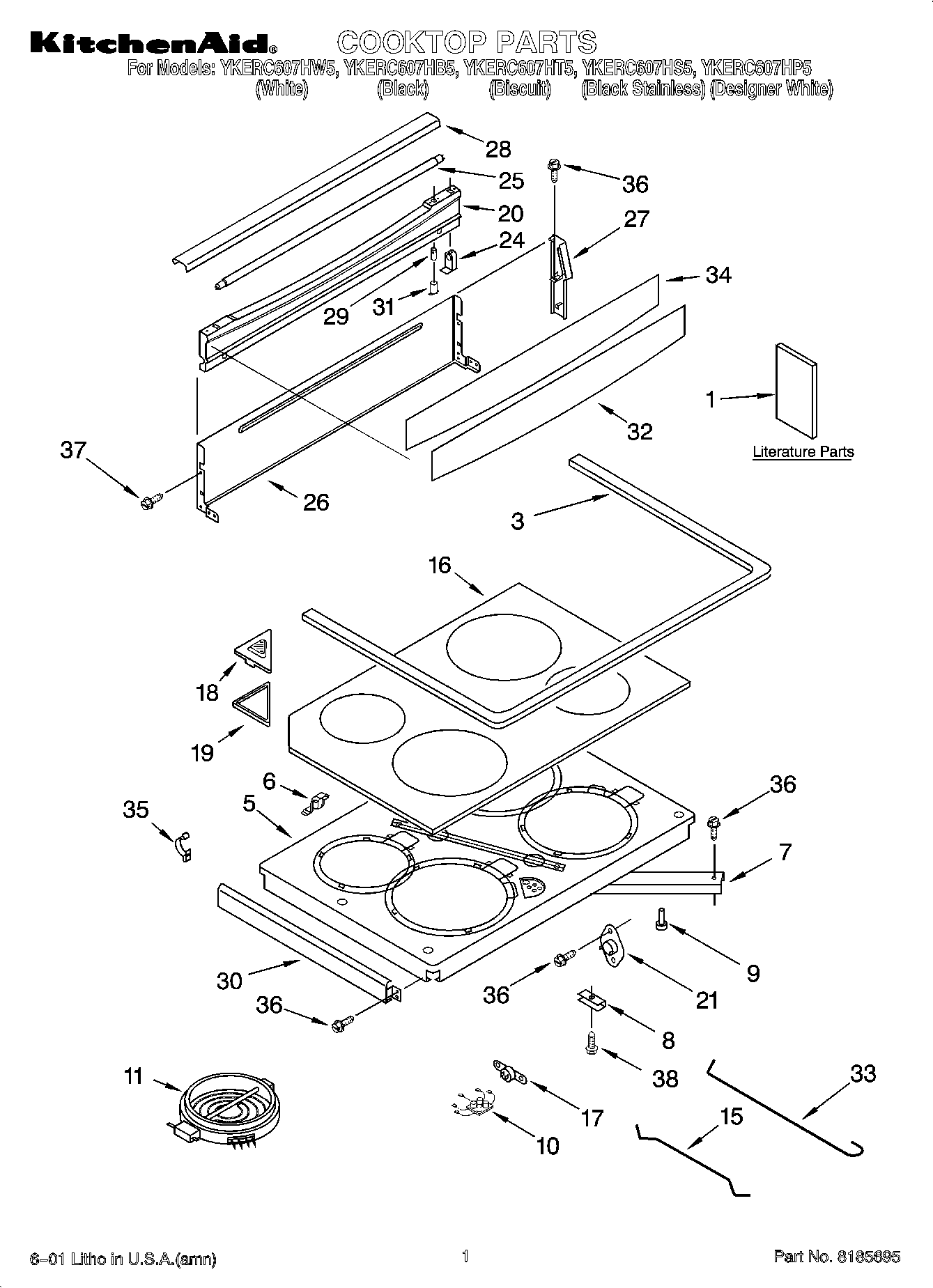

YKERC607HT5 01 – COOKTOP PARTS

Products

Position	Product
1	Literature Parts (Smart & Easy Guide)
1	WPL LIT9753027
1	WPL LIT9752775
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Use & Care Guide)
1	SMART & EASY GUIDE (FRENCH)
1	Literature Parts (Installation Instructions)
1	Use & Care Guide (French)
3	Rear Gasket
3	WP9780939 Whirlpool Cooktop Gasket
5	Support, Element
6	Bracket, Pivot
6	Washer, Pivot
7	Brace, Support
8	Support Clips (4)
9	238614 Whirlpool Bumper Hinge
10	Hot Light
11	W10823698 Whirlpool Surface Element Right Rear
11	W10823699 Whirlpool Right Front Surface Element
11	W10823697 Whirlpool Surface Element
11	W10823692 Whirlpool Dual Radiant Element
15	Rod, Small Ceran Element
16	Cooktop, Ceran (Designer White)
16	Cooktop, Ceran (Black)
16	Cooktop, Ceran (White)
16	Cooktop, Ceran (Biscuit)
17	Thermostat SPST (205)
18	Cover, Vent
19	Gasket, Vent Cover
20	Backsplash (Black)
20	Backsplash (Biscuit)
20	Backsplash (White)
21	WP9759944 Whirlpool Thermostat
24	Receptacle, Light
25	WP95292 Whirlpool Fluorescent Light Bulb
26	Cover, Backsplash
27	Endcap, Backsplash (Black, Right)
27	Endcap, Backsplash (White, Left)
27	Endcap, Backsplash (Biscuit, Left)
27	Endcap, Backsplash (Black, Left)
27	Endcap, Backsplash (White, Right)
27	Endcap, Backsplash (Biscuit, Right)
28	Cover, Light (White)
28	Cover, Light (Black)
28	Cover, Light (Biscuit)
29	Starter, Light
30	WPL 9751276PB
30	Trim, Cooktop (Black (Right))
30	WPL 9751275PC
30	Trim, Cooktop (White (Right))
30	(Trim, Cooktop (Left Hand)) (White)
30	WPL 9751276PC
31	Starter, Holder
32	Glass, Backsplash
33	Rod, Large Ceran Element
34	Panel, Drawer
35	8528351 Whirlpool Clip
36	WP4159387 Whirlpool Compactor Screw
37	Screw (4) 10 x 1/2
38	Screw, 10-16 x 1
