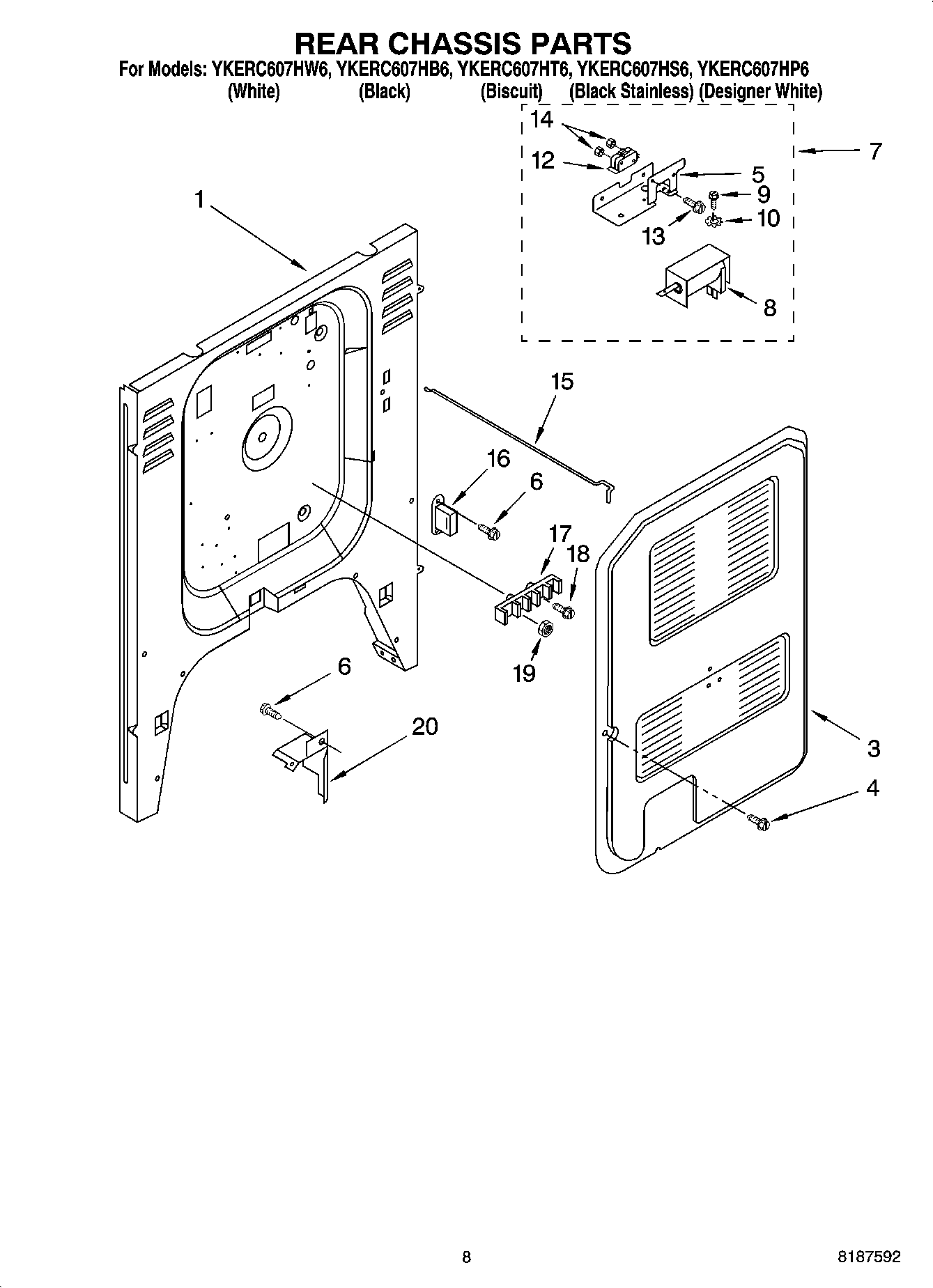

YKERC607HT6 05 – REAR CHASSIS PARTS

Products

Position	Product
1	Back panel, Chassis
3	Panel, Rear Cover
4	Screw (4) 10 x 3/8
5	Bracket, Lock
6	WP4159387 Whirlpool Compactor Screw
7	Oven Lock Assembly
8	Solenoid
9	Screw (2) 10-32 x 5/16
10	Washer (2)
12	Switch, Interlock
13	Screw, (2)
14	Nut (2)
15	Rod, Lock
16	Ballast, Lamp
17	WP8203546 Whirlpool Terminal Block
18	Screw, (2) 10-16 x 1
19	Clip, Ground Wire
19	WP112432 Whirlpool Nut Assembly
19	SCREW
20	WPL 9751798
