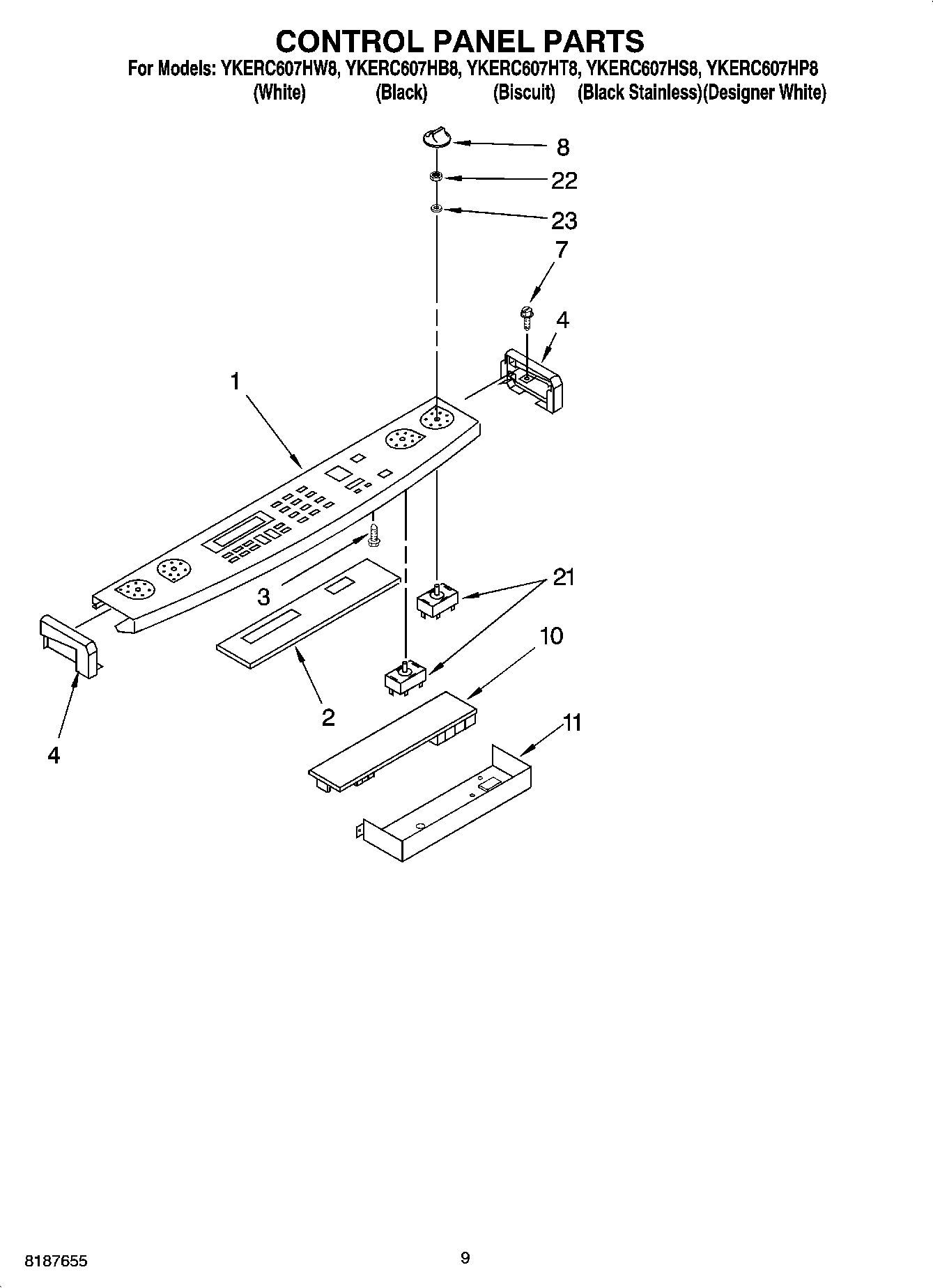

YKERC607HT8 06 – CONTROL PANEL PARTSadmin2025-04-26T11:09:41+00:00YKERC607HT8 06 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Console, Glass (White) |
| 1 | Console, Glass (Black Stainless) |
| 1 | Console, Glass (Black) |
| 1 | Console, Glass (Biscuit) |
| 2 | Board, Display |
| 3 | Screw |
| 4 | End Cap (Biscuit, Left) |
| 4 | End Cap (Biscuit, Right) |
| 4 | End Cap (Black, Right) |
| 4 | End Cap (White, Right) |
| 4 | End Cap (Black, Left) |
| 4 | End Cap (Left Hand) (White) |
| 7 | WP4159387 Whirlpool Compactor Screw |
| 8 | WP9750372FC Whirlpool Knob |
| 8 | WP9750372FF Whirlpool Knob |
| 8 | WP9750372FW Whirlpool Knob Assembly |
| 10 | Board, Power |
| 11 | Shield, Control Panel |
| 21 | Switch, Infinite (1250-1500W, LR) |
| 21 | WP9755175 Whirlpool Infinite Switch |
| 21 | Switch, Infinite (1700W, RF) |
| 21 | Switch, Infinite (2100-2600W, LF) |
| 22 | Nut, Mounting (Single Element) |
| 23 | Console, Glass (Spacer) |
| 23 | Seal, Switch (4) |
