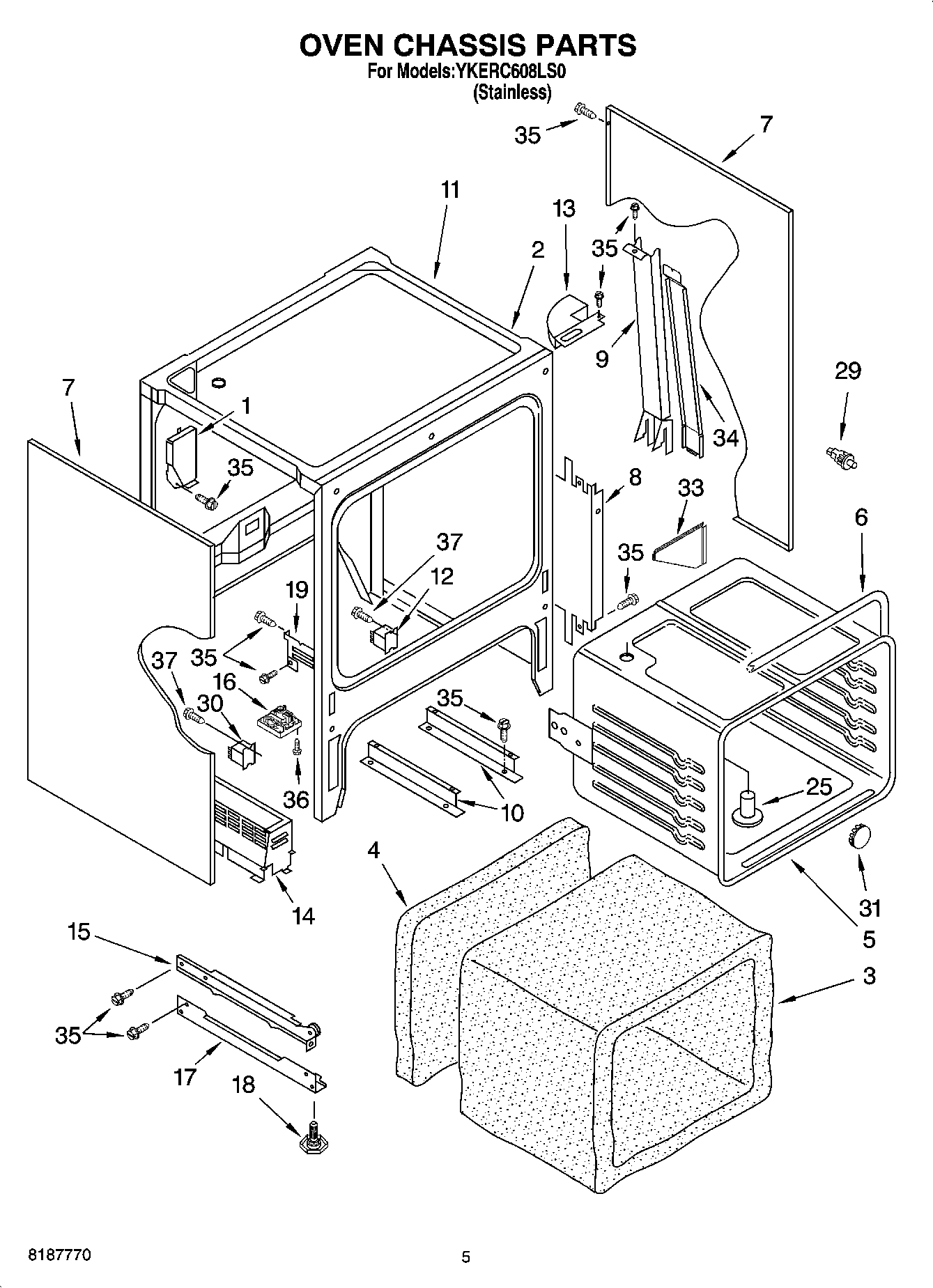

YKERC608LS0 03 – OVEN CHASSIS PARTS

Products

Position	Product
1	Vent Box, Oven
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Body, Side (Black)
8	Shield, Insulation
9	Duct, Side Fan
10	Support Rail
11	Burner Box
12	Relay
13	Duct, Top
14	Support, Fan
15	Drawer Rail, Left
15	Rail, Drawer (Right)
16	Motor, Fan
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Base L or R
25	Vent Tube
29	Door Switch
30	Relay, Dlb.
31	Button, Plug
33	Shield, Heat
34	Fan Duct, Cover
35	WP4159387 Whirlpool Compactor Screw
36	Screw, (3) No.8 x 1``
37	Screw
