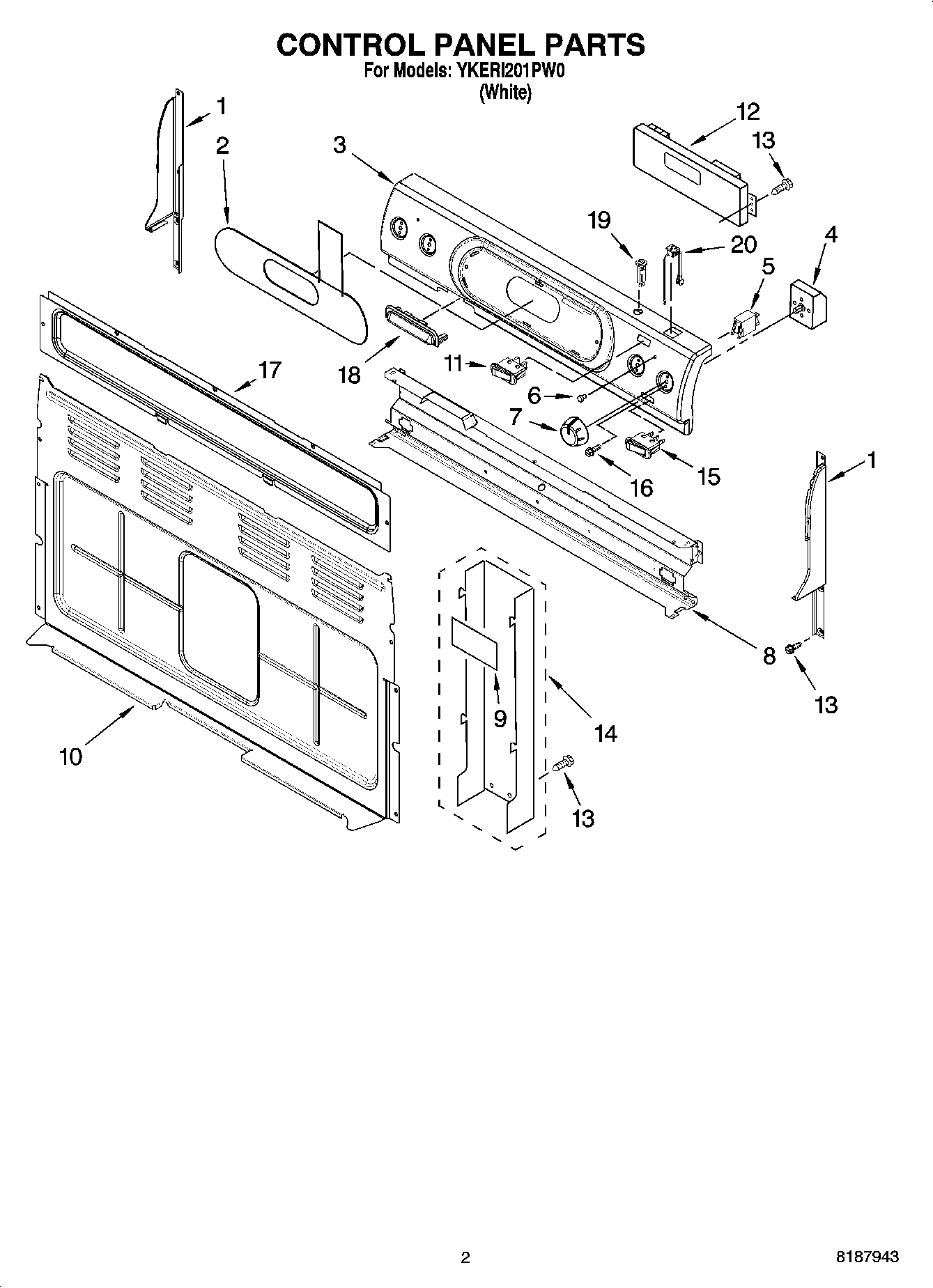

YKERI201PW0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Endcap (White Right Hand)
1	Endcap (White Left Hand)
2	Membrane Switch (White)
3	Panel, Backguard
4	WP3148952 Whirlpool Oven Infinite Switch
4	SWITCH-INF
4	WP9757030 Whirlpool Infinite Switch
5	WP8523266 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	Knob (White)
8	Shield, Heat
9	Card, Insulation
10	Cover, Rear
11	Switch, Simmer (White)
12	Control, Range
13	SCREW
14	WPW10326122 Whirlpool Black Cover
15	Switch, Warming (White)
16	WP3400882 Whirlpool Screw
17	Cover, Rear (Console)
18	Cover, Vent (White)
19	WP9757601 Whirlpool Breaker
20	WPL 9756358
