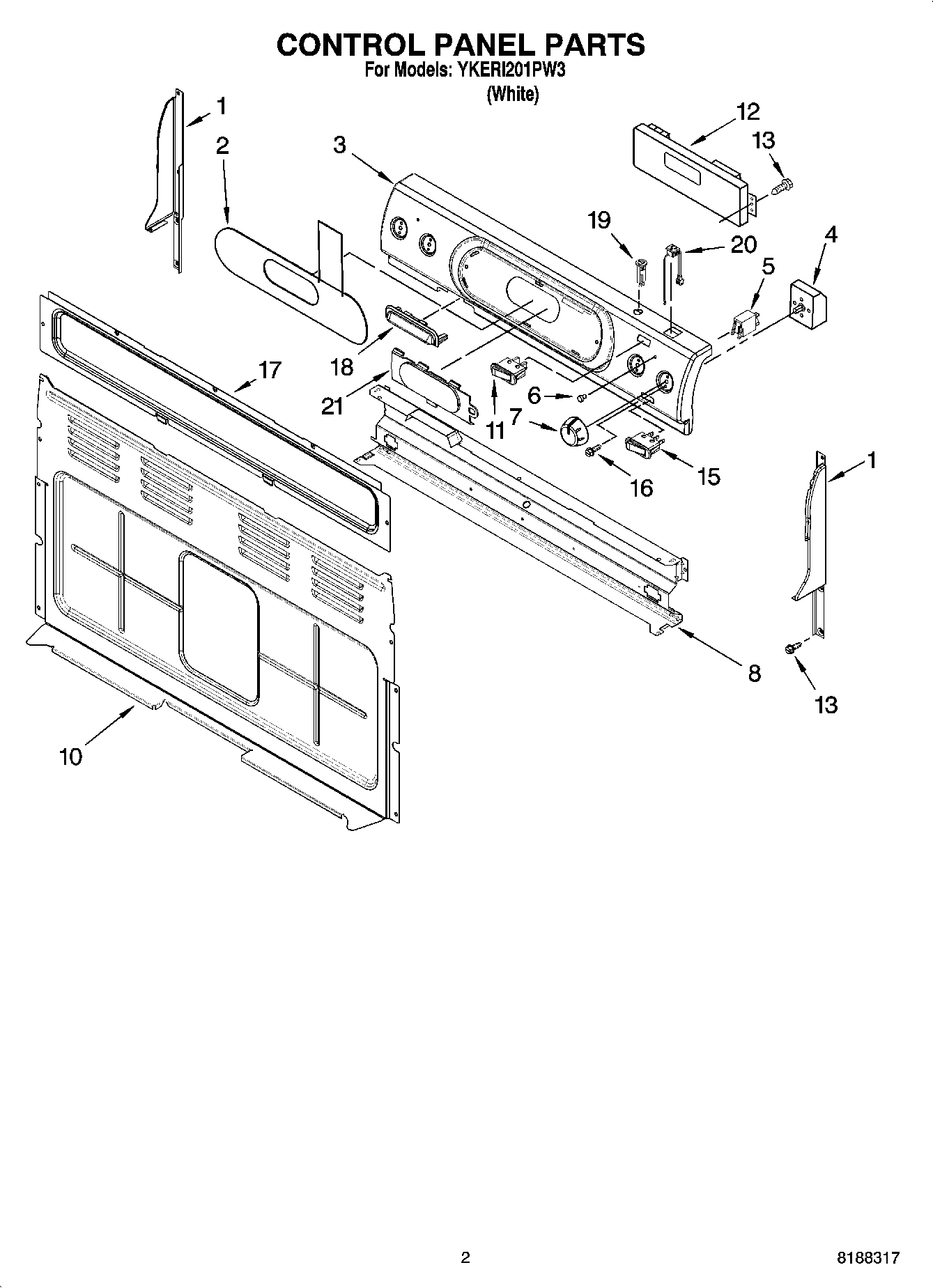

YKERI201PW3 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Endcap (White Right Hand)
1	Endcap (White Left Hand)
2	Membrane Switch (White)
3	Panel, Backguard
4	WP9757030 Whirlpool Infinite Switch
4	SWITCH-INF
4	WP3148952 Whirlpool Oven Infinite Switch
5	WP8523266 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	Knob (White)
8	Shield, Heat
10	Cover, Rear
11	Switch, Simmer (White)
12	Control, Range
13	SCREW
15	Switch, Warming (White)
16	WP3400882 Whirlpool Screw
17	Cover, Rear (Console)
18	Cover, Vent (White)
19	WP9757601 Whirlpool Breaker
20	Receptacle (2)
21	Membrane, Insert
