YKERI203PT0 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

YKERI203PT0 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Written by

in

YKERI203PT0 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI166802A
WPL 8316781
WPL 8273266
WP3196154 Whirlpool Screw Assembly
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
Grease
3196696 Whirlpool Clip
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
WPL 8524132
WPL 9756745
WPL ARI166801A
WPL ARI166800A
WPL ARI166799A
WPL ARI166798A
WPL ARI166797A
WPL ARI166796A
WPL ARI166795A
WPL 9759577
WPL 9756779
WPL 9756350
WPL 9757044
W10465644 Whirlpool Wire Harness
WPL 4454240
WPL 9757332
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
814381 Whirlpool Pin
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
Cleaner (Stainless Steel)
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
16515 Whirlpool Clip
242831 Whirlpool Oven Wire
Clip, Ground Wire

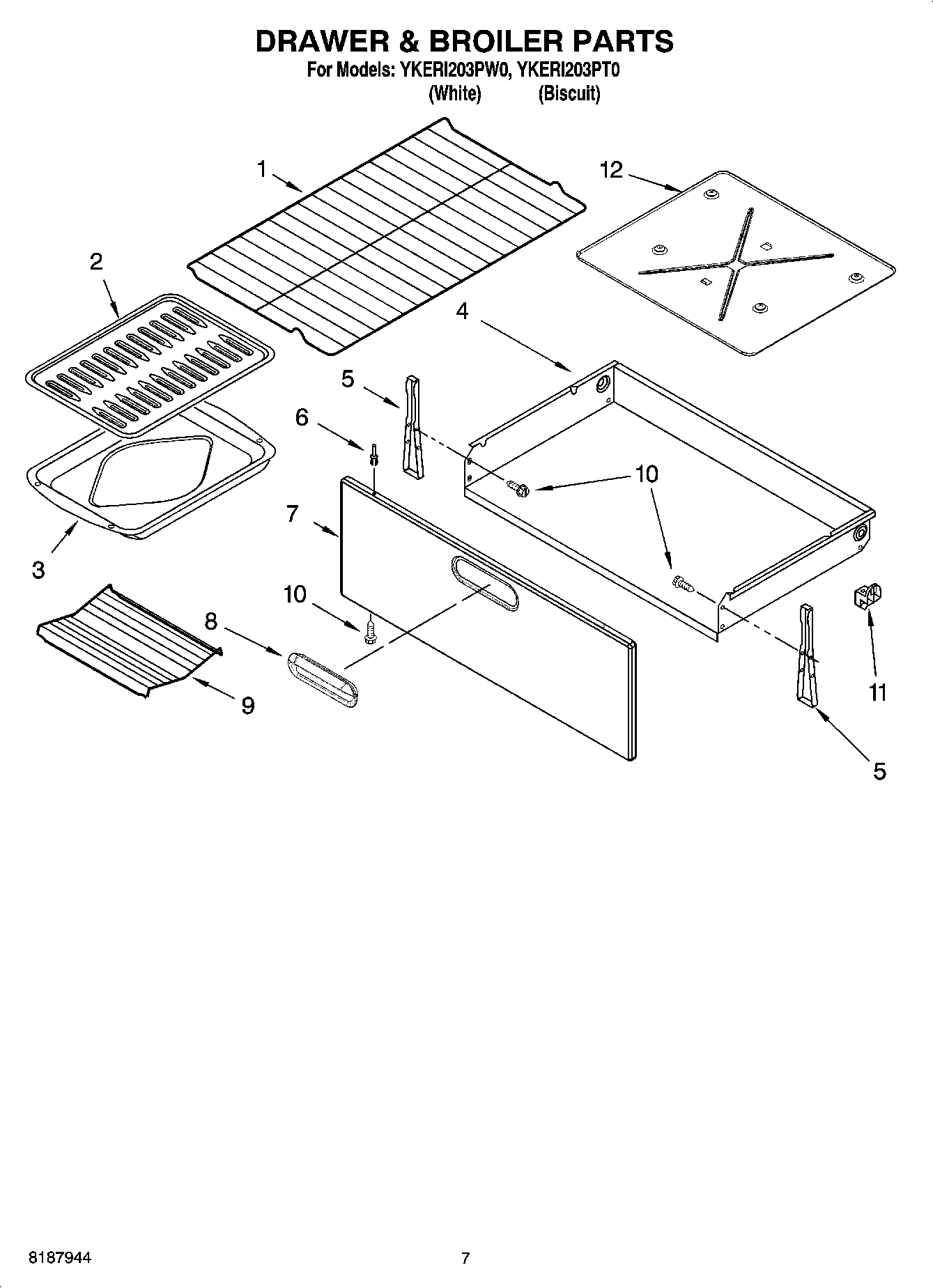

1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
6WP3196814 Whirlpool Rivet
63196815 Whirlpool Oven Rivet
7Panel, Drawer Front (White)
7Panel, Drawer Front (Biscuit)
8Handle, Drawer (White)
8Handle, Drawer (Biscuit)
9Rack, Roasting
10WP3400832 Whirlpool Screw
11WP8053334 Whirlpool Drawer Glide
12Heat Shield, Drawer
