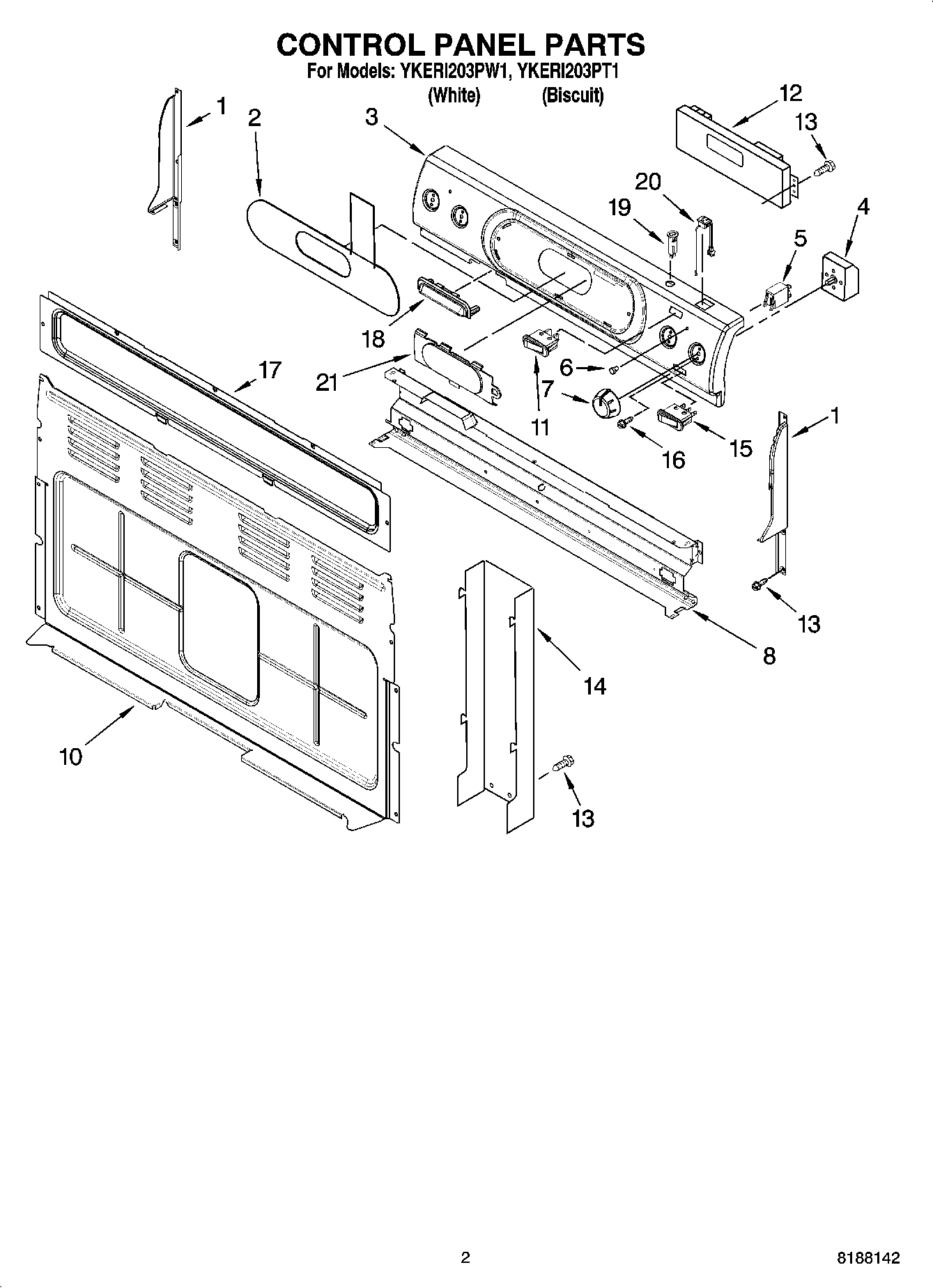

YKERI203PT1 02 – CONTROL PANEL PARTS

YKERI203PT1 02 – CONTROL PANEL PARTS

Written by

in

YKERI203PT1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Biscuit Left Hand)
1Endcap (White Right Hand)
1Endcap (White Left Hand)
1Endcap (Biscuit Right Hand)
2Membrane Switch (Biscuit)
2Membrane Switch (White)
3Panel, Backguard (Biscuit)
3Panel, Backguard (White)
4WP3148952 Whirlpool Oven Infinite Switch
4SWITCH-INF
4WP9757030 Whirlpool Infinite Switch
5WP8523266 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7Knob (BIscuit)
7Knob (White)
8Shield, Heat
10Cover, Rear
11WPW10163899 Whirlpool Switch
11Switch, Simmer (White)
12Control, Range
13SCREW
14WPW10326122 Whirlpool Black Cover
15Switch, Warming (Biscuit)
15Switch, Warming (White)
16WP3400882 Whirlpool Screw
17Cover, Rear (Console)
18Cover, Vent (Biscuit)
18Cover, Vent (White)
19Breaker, 15Amp (Biscuit)
19WP9757601 Whirlpool Breaker
20WPL 9756358
20WPL 9756360
21Membrane, Insert
