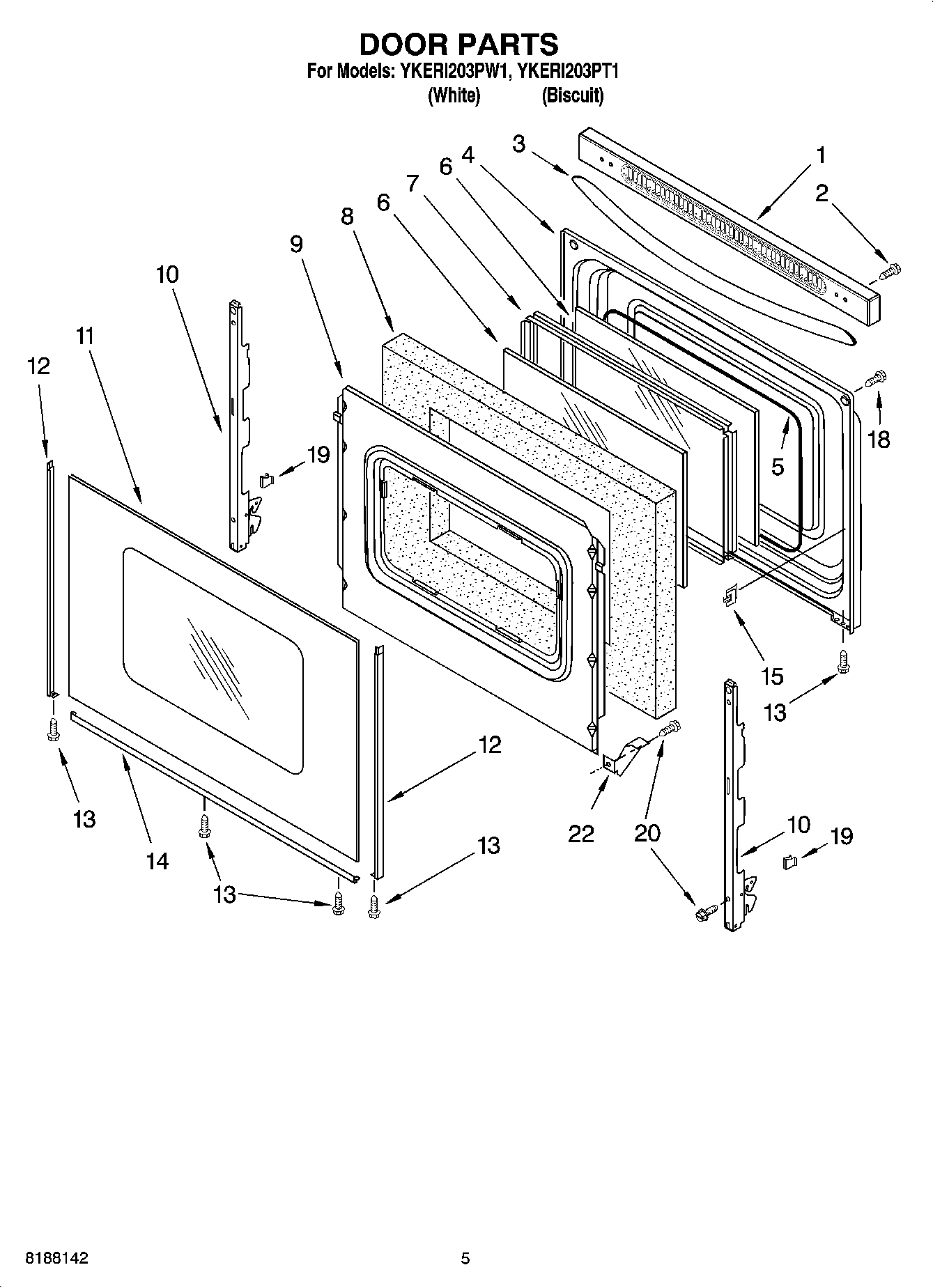

YKERI203PT1 04 – DOOR PARTS

YKERI203PT1 04 – DOOR PARTS

Written by

in

YKERI203PT1 04 – DOOR PARTS

Products

PositionProduct
1Trim, Door Top (White)
1Trim, Door Top (Biscuit)
2Screw
3Handle, Door (White)
3Handle Door (Biscuit)
4Liner, Door
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WP8053807 Whirlpool Oven Door Hinge
11Glass, Outer Door (White)
11Glass, Outer Door (Biscuit)
12WP8523173 Whirlpool Door Trim
12WP8523166 Whirlpool Door Trim
12WP8523167 Whirlpool Door Trim Assembly
12WP8523172 Whirlpool Left Door Trim
13W10491985 Whirlpool Screw
14WP8523175 Whirlpool Door Trim Assembly
14WP8523178 Whirlpool Door Trim
15Clip, Glass (4)
18WP179051 Whirlpool Screw
19WP3196925 Whirlpool Clip Assembly
20WP3196175 Whirlpool Screw
22WP3196794 Whirlpool Glass Bracket
