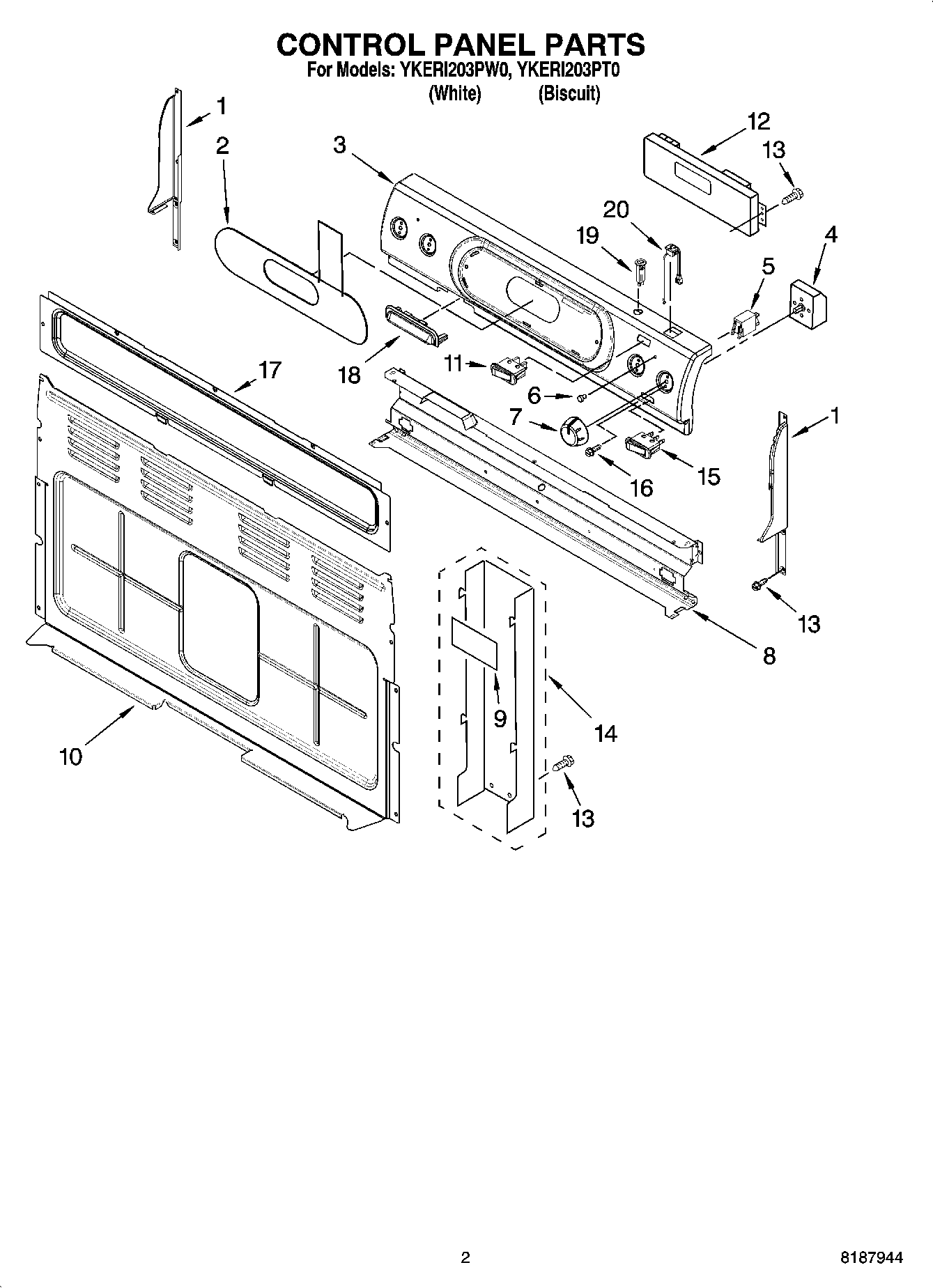

YKERI203PW0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (White Right Hand)
1Endcap (White Left Hand)
1Endcap (Biscuit Right Hand)
1Endcap (Biscuit Left Hand)
2Membrane Switch (Biscuit)
2Membrane Switch (White)
3Panel, Backguard (Biscuit)
3Panel, Backguard (White)
4SWITCH-INF
4WP9757030 Whirlpool Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
5WP8523266 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7Knob (BIscuit)
7Knob (White)
8Shield, Heat
9Card, Insulation
10Cover, Rear
11Switch, Simmer (White)
11WPW10163899 Whirlpool Switch
12Control, Range
13SCREW
14WPW10326122 Whirlpool Black Cover
15Switch, Warming (White)
15Switch, Warming (Biscuit)
16WP3400882 Whirlpool Screw
17Cover, Rear (Console)
18Cover, Vent (Biscuit)
18Cover, Vent (White)
19WP9757601 Whirlpool Breaker
19Breaker, 15Amp (Biscuit)
20WPL 9756358
20WPL 9756360
