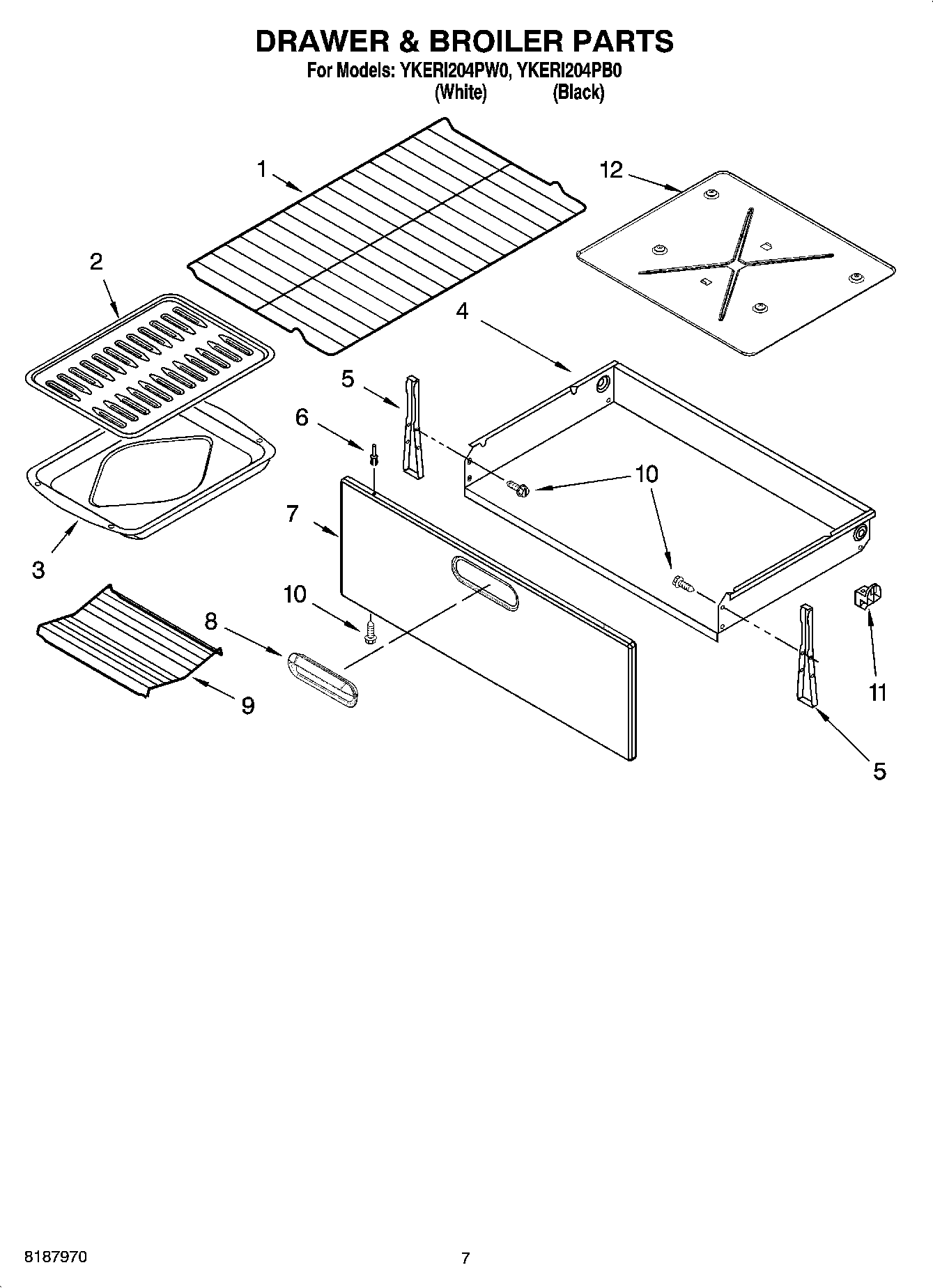

YKERI204PB0 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

YKERI204PB0 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Written by

in

YKERI204PB0 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI137950A
WP3196154 Whirlpool Screw Assembly
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
Grease
3196696 Whirlpool Clip
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
WPL 8316781
WPL 9756550
WPL ARI137949A
WPL ARI137948A
WPL ARI137947A
WPL ARI137946A
WPL ARI137945A
WPL ARI137944A
WPL ARI137943A
WPL 9759578
WPL 9758085
WPL 9756779
WPL 9756350
WPL 9756708
WPL 9756707
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
814381 Whirlpool Pin
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
Cleaner (Stainless Steel)
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
3400964 Whirlpool Oven Clip
Clip, Ground Wire
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
6WP3196813 Whirlpool Rivet
6WP3196814 Whirlpool Rivet
7Panel, Drawer Front (White)
7Panel, Drawer Front (Black)
8Handle, Drawer (White)
8Handle, Drawer (Black)
9Rack, Roasting
10WP3400832 Whirlpool Screw
11WP8053334 Whirlpool Drawer Glide
12Heat Shield, Drawer
