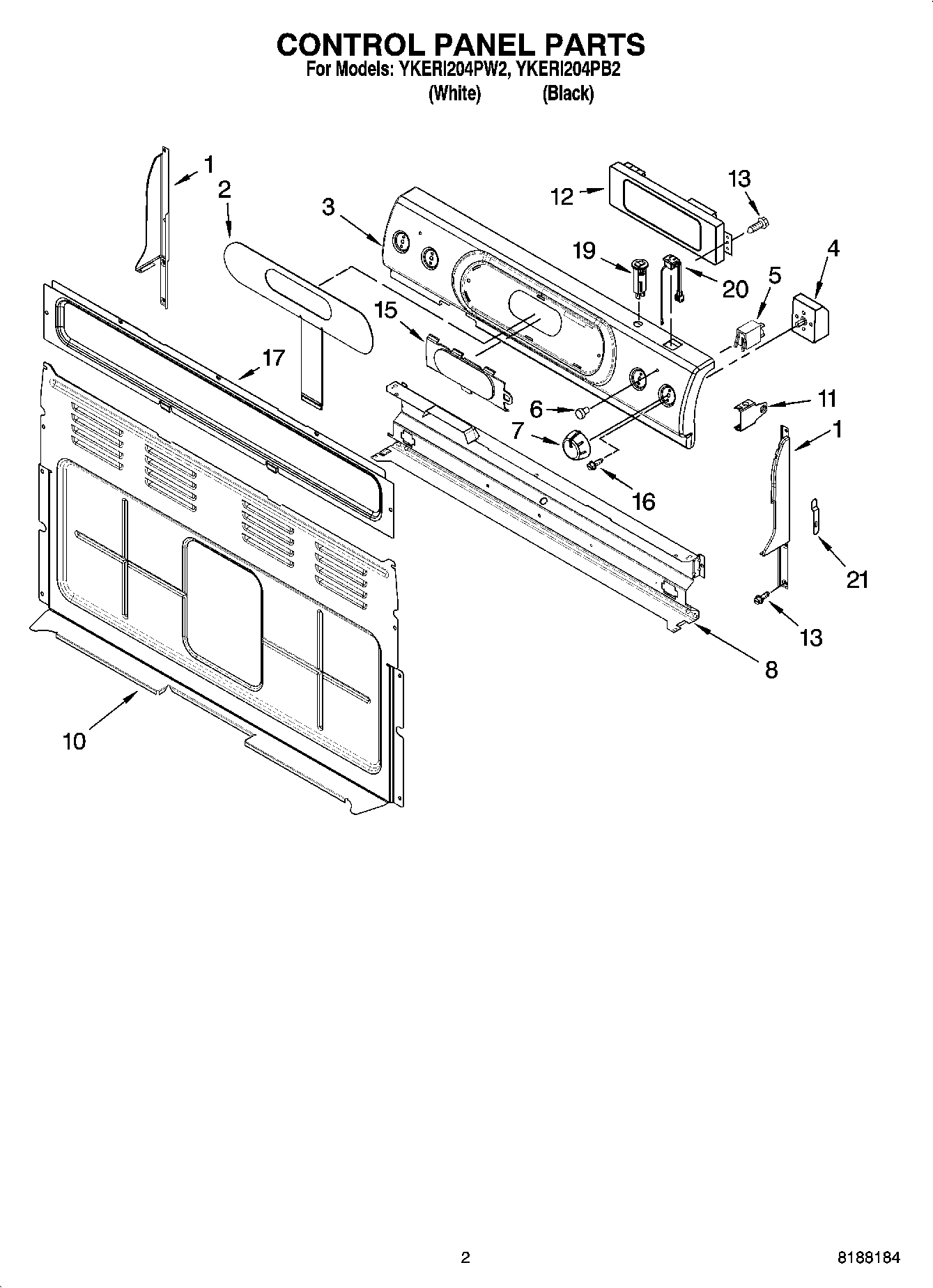

YKERI204PB2 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Endcap (Black Left Hand)
1	Endcap (White Right Hand)
1	Endcap (White Left Hand)
1	Endcap (Black Right Hand)
2	Membrane Switch (Black)
2	Membrane Switch (White)
3	Panel, Backguard (Black)
3	Panel, Backguard (White)
4	WP3148952 Whirlpool Oven Infinite Switch
4	WP3149400 Whirlpool Oven Infinite Switch
5	WP8523266 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	Knob (White)
7	Knob (Black)
8	Shield, Heat
10	Cover, Rear
11	Bracket, Hinge (Left Hand)
11	Bracket, Hinge (Right Hand)
12	Control, Range
13	WP4449809 Whirlpool Screw
15	Membrane, Insert
16	WP3400882 Whirlpool Screw
17	Cover, Rear (Console)
19	WP9757602 Whirlpool Breaker
19	WP9757601 Whirlpool Breaker
20	Receptacle (Black)
20	Receptacle (2)
21	3196200 Whirlpool Clip
