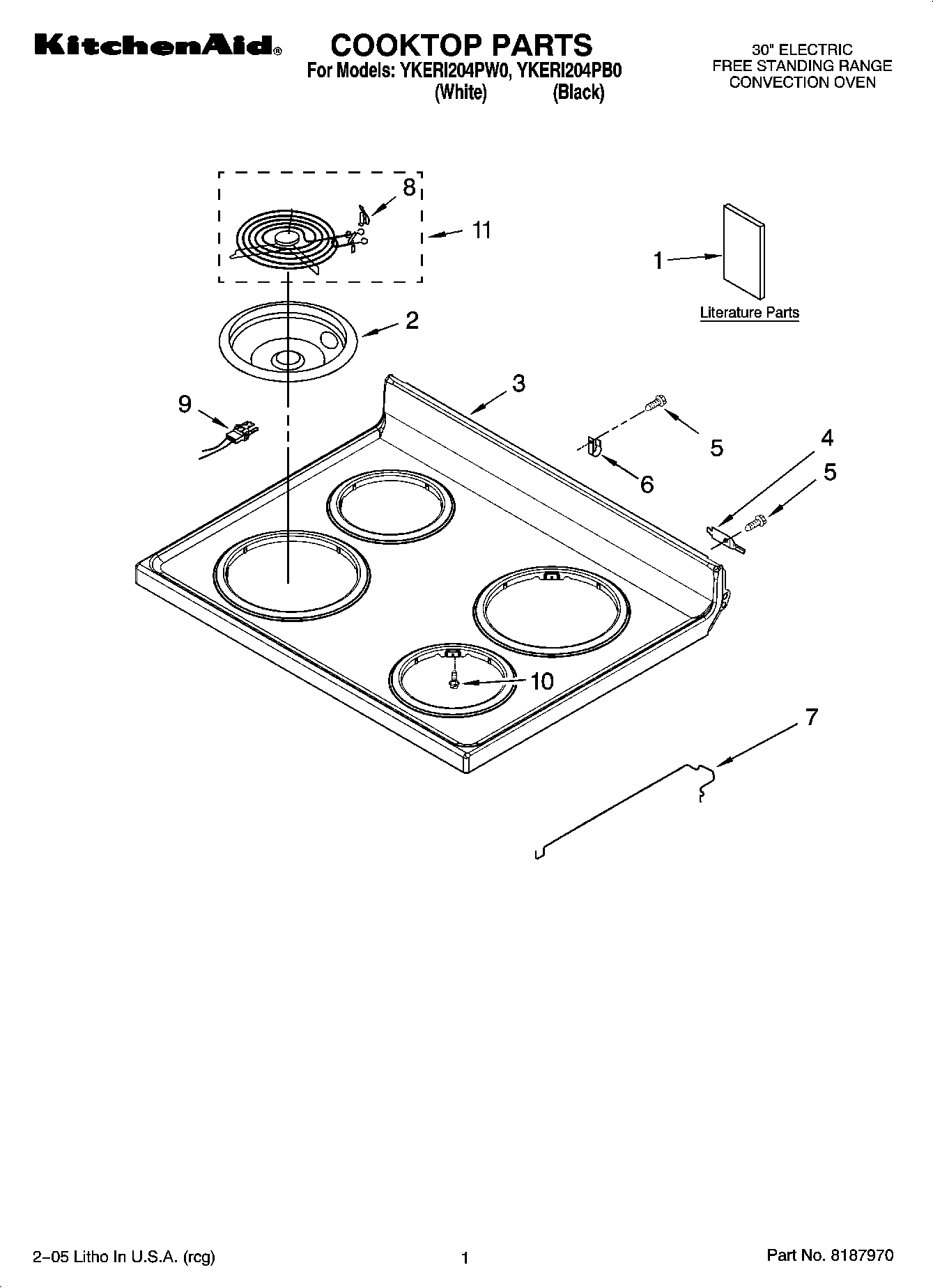

YKERI204PW0 01 – COOKTOP PARTS

YKERI204PW0 01 – COOKTOP PARTS

Written by

in

YKERI204PW0 01 – COOKTOP PARTS

Products

PositionProduct
1Tech Sheet
1Use & Care Guide
1English/French
1Installation Instructions Template, Anti-Tip
1English/Spanish
2WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
2WPW10290350 Whirlpool Stove Drip Bowl
38195532 Whirlpool Cooktop Power Switch
38195534 Whirlpool Cooktop
4WP3195060 Whirlpool Cooktop Pin
5SCREW
6WP308605 Whirlpool Refrigerator Clamp
7WP3195812 Whirlpool Cooktop Rod
8WP3195917 Whirlpool Clip Assembly
9814399 Whirlpool Receptacle Kit
10WP3196154 Whirlpool Screw Assembly
11WP660532 Whirlpool Oven Surface Element
11WPW10259865 Whirlpool Range 8" Surface Element
