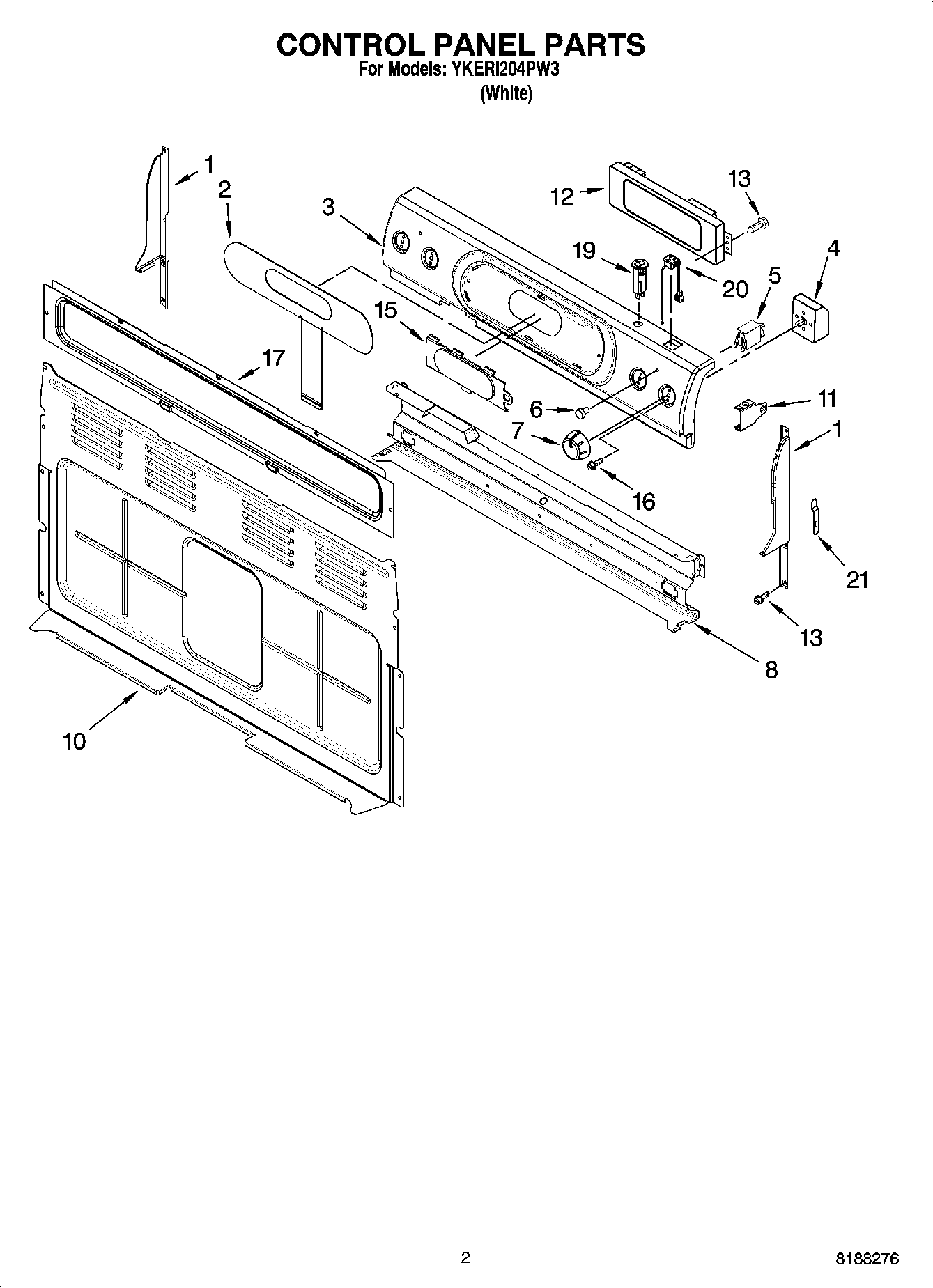

YKERI204PW3 02 – CONTROL PANEL PARTS

YKERI204PW3 02 – CONTROL PANEL PARTS

Written by

in

YKERI204PW3 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (White Right Hand)
1Endcap (White Left Hand)
2Membrane Switch (White)
3Panel, Backguard (White)
4WP3149400 Whirlpool Oven Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
5WP8523266 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7Knob (White)
8Shield, Heat
10Cover, Rear
11Bracket, Hinge (Left Hand)
11Bracket, Hinge (Right Hand)
12Control, Range
13WP4449809 Whirlpool Screw
15Membrane, Insert
16WP3400882 Whirlpool Screw
17Cover, Rear (Console)
19WP9757601 Whirlpool Breaker
20Receptacle (2)
213196200 Whirlpool Clip
