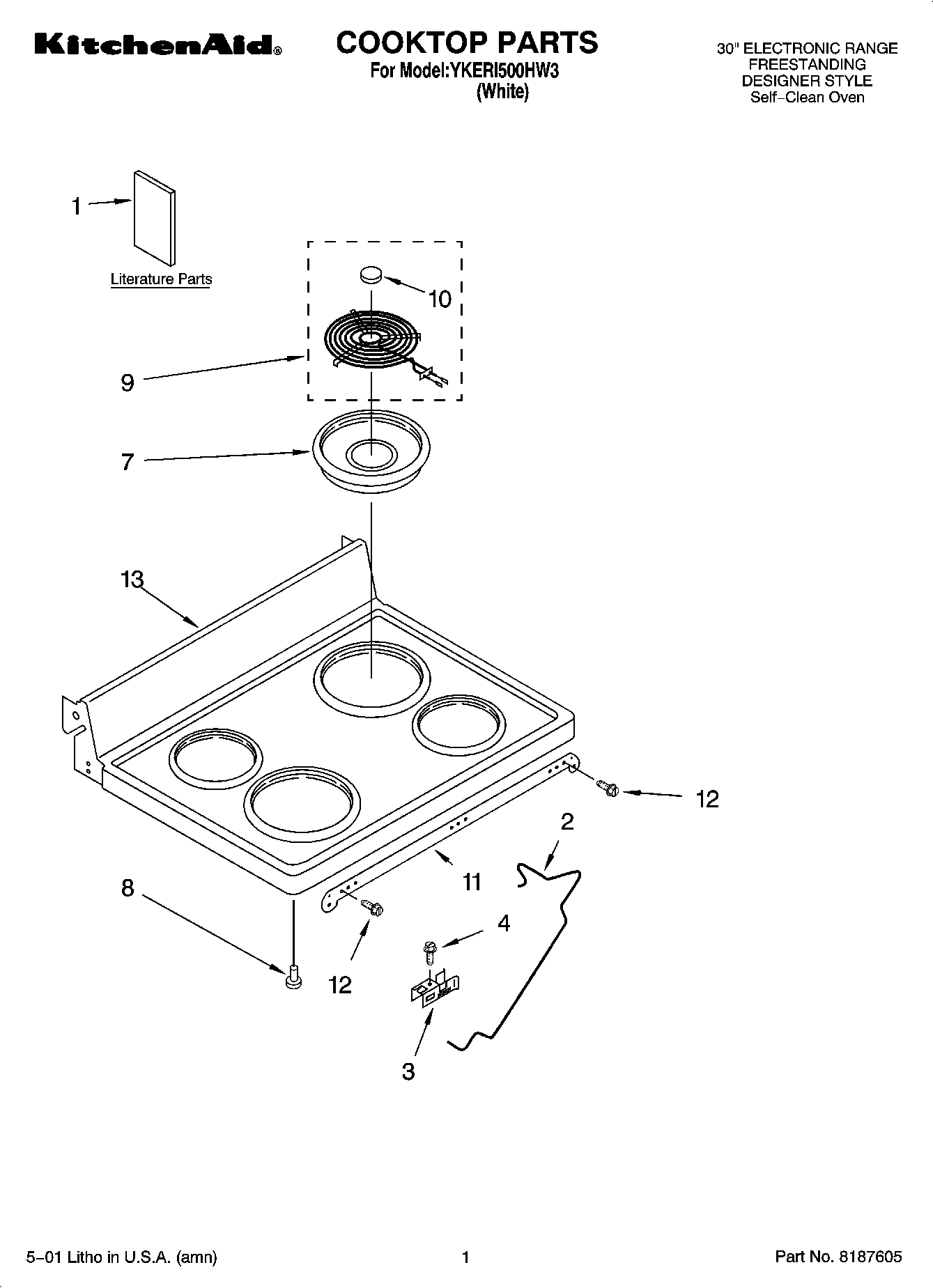

YKERI500HW3 01 – COOKTOP PARTS

Products

PositionProduct
1Use & Care Guide (French)
1Literature Parts (Installation Instructions)
1WPL LIT9752776
1Literature Parts (Use & Care Guide)
1Literature Parts (Wiring Diagram)
2Cooktop Rod
3Receptacle, Clip
4WP313808 Whirlpool Screw
7WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
7WPW10290350 Whirlpool Stove Drip Bowl
8238614 Whirlpool Bumper Hinge
9Element, Surface (Coil, 6“ LR (Accu Simmer))
9Element, Surface (Coil, 6“ RF)
9Element, Surface (Coil 8“ RF-LR)
10Medallion, (4)
11Guard, Wire
12Screw (2) 8 x 3/8
13Cooktop, Coil
