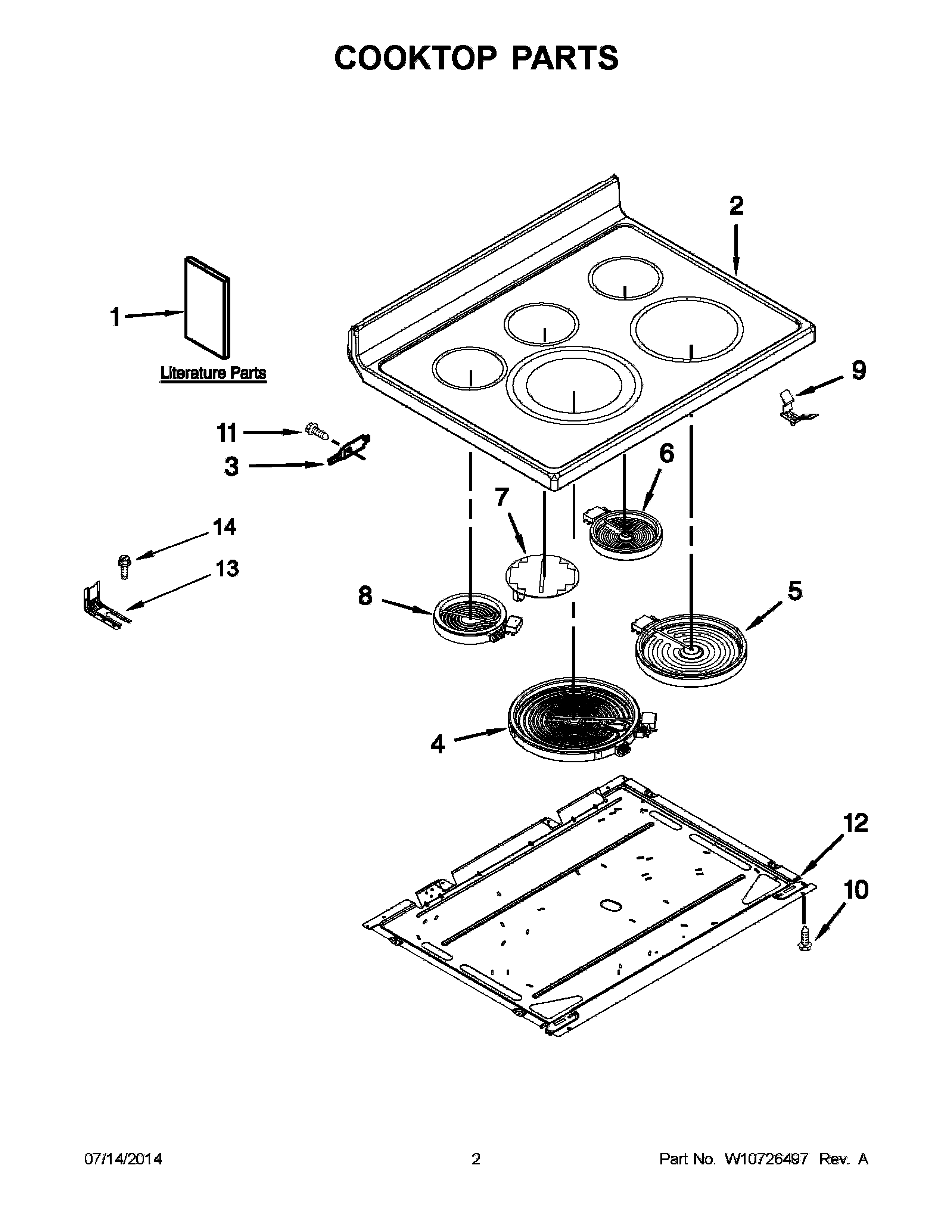

YKERS202BWH1 02 – COOKTOP PARTS

Products

Position	Product
NI	SCREW
NI	HARNESS, WIRE (COOKTOP LEFT)
NI	HARNESS, WIRE (COOKTOP RIGHT)
NI	W11212183 Whirlpool Wire Harness
NI	W11134592 Whirlpool Wire Harness
NI	HARNESS, MAIN
NI	CABINET (NOT A SERVICEABLE PART)
1A	TECH SHEET (ENGLISH)
1E	Safer Cooking Tips (French)
1	USE AND CARE GUIDE
1B	LITERATURE PARTS
1G	QUICK START GUIDE (FRENCH)
1F	QUICK START GUIDE
1C	INSTRUCTIONS, INSTALLATION
1D	SAFER COOKING TIPS (ENGLISH
2A	COOKTOP (BLACK)
2	W10524411 Whirlpool Cooktop
3	WP3195060 Whirlpool Cooktop Pin
4	W10823727 Whirlpool Stove Right Front Surface Element
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	ELMNT-SURF
7	W11047668 Whirlpool Surface Element
8	WPW10342780 Whirlpool Surface Element
9	WPW10225448 Whirlpool Spring Assembly
10	WP3196175 Whirlpool Screw
11	3196172 Whirlpool Oven Screw
12	PAN
13	W11447673 Whirlpool Range Tip Anchor
14	SCREW, ANTI-TIP KIT
