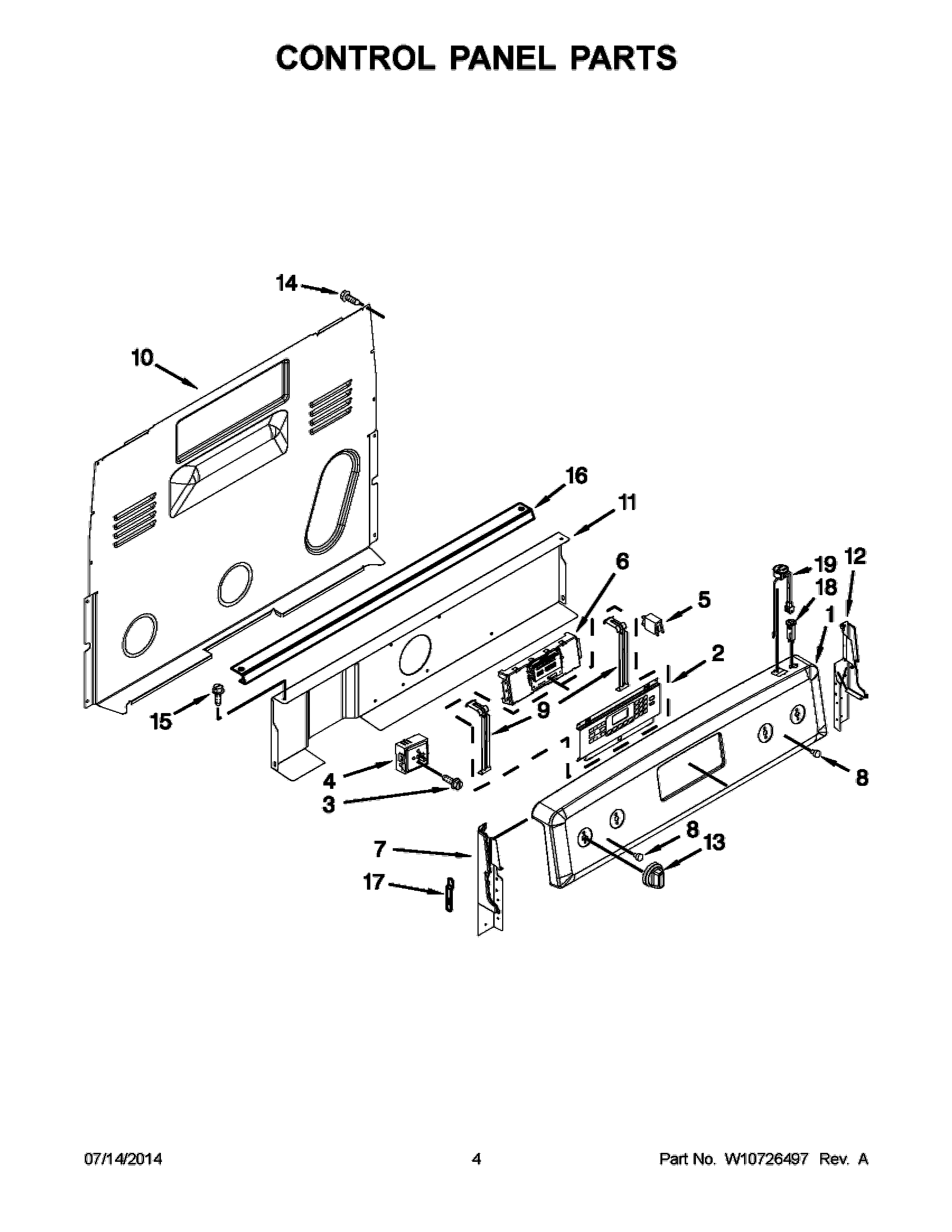

YKERS202BWH1 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	CONSOLE, PANEL (STAINLESS)
1	CONSOLE, PANEL (WHITE)
2	ASSEMBLY, ACTIVE OVERLAY
3	WP3400882 Whirlpool Screw
4	WP3149404 Whirlpool Oven Surface Element Switch
4A	SWITCH-INF
4B	WPW10411934 Whirlpool Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WPW10340694-includeCORE Whirlpool WPW10340694 Dishwasher Electronic Control Board + Core
7A	W11219664 Whirlpool Endcap Panel
7	W11219365 Whirlpool Panel Endcap
8	WP3196068 Whirlpool Light Lens
9	BRACKET, CONTROL
10	WP8272473 Whirlpool Rear Cover
11	W10134247 Whirlpool Heat Shield
12A	W11219665 Whirlpool Panel Endcap
12	W11219370 Whirlpool Endcap Panel
13A	W10854052 Whirlpool Knob
13	W10524672 Whirlpool Knob Assembly
14	WP3196175 Whirlpool Screw
15	SCREW
16	W10525121 Whirlpool Control Bracket
17	3196200 Whirlpool Clip
18	WP9757601 Whirlpool Breaker
18A	WP9757602 Whirlpool Breaker
19	W10849725 Whirlpool Electrical Outlet
19A	W10861164 Whirlpool Electrical Outlet
