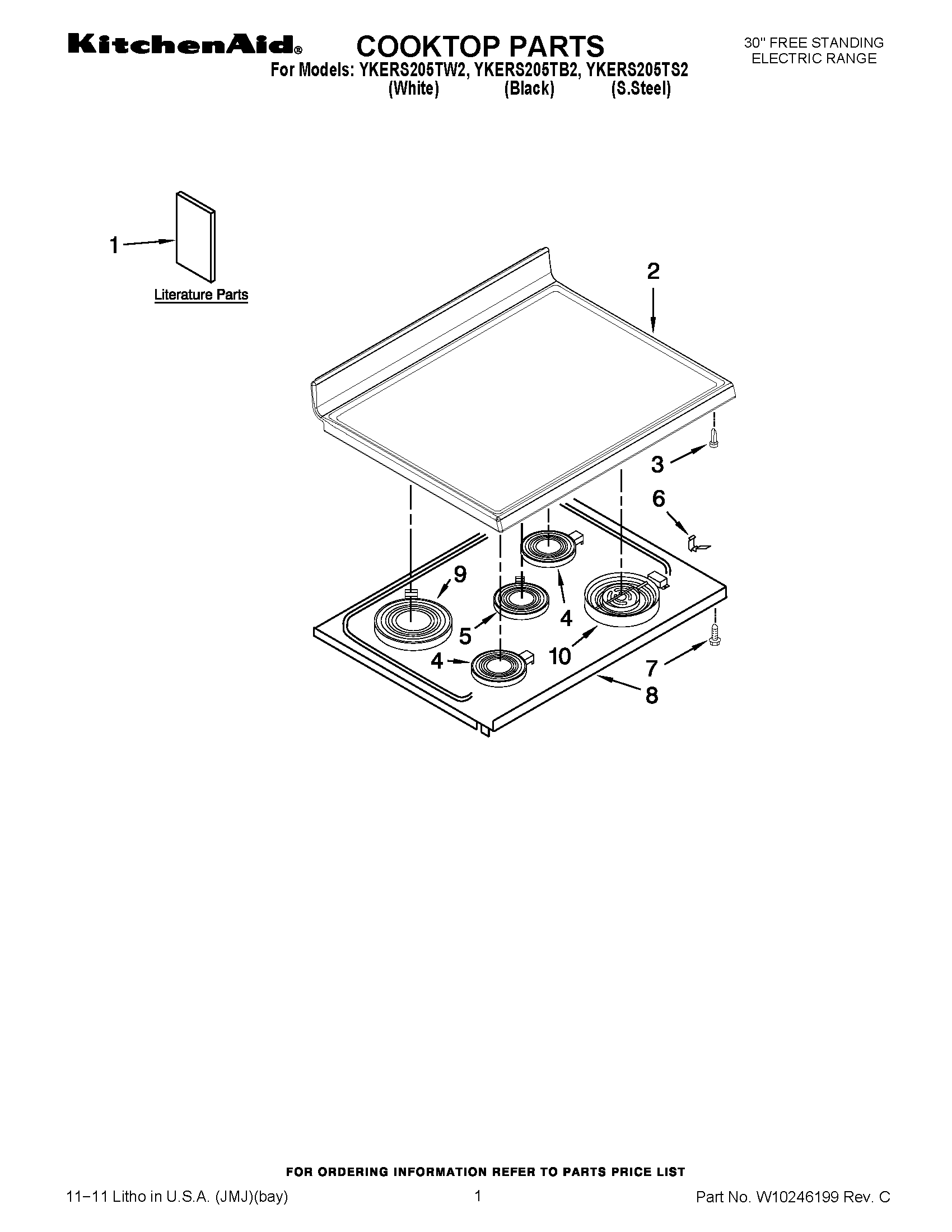

YKERS205TB2 01 – COOKTOP PARTS

Written by

Products

Position	Product
1	Installation Instructions
1	Wiring Diagram (English)
1	Wiring Diagram (French)
1	Use & Care Guide
2	COOKTOP (BLACK)
2	COOKTOP (WHITE)
3	Spacer Snap-In (4)
4	ELEMENT (LF,RR)
5	WP9762851 Whirlpool Surface Element
6	Spring, Element
7	Screw
8	Bottom, Burner Box
9	W10823692 Whirlpool Dual Radiant Element
10	ELEMENT, RF
